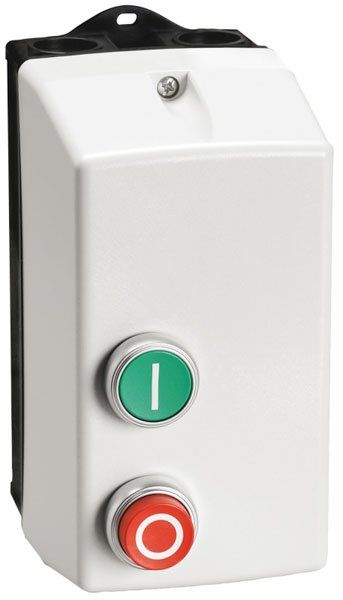

Lovato Direct On-Line Starter DOLS7.5400

Lovato direct on-line motor starter with a 400V AC control voltage and a heavy duty BF series contactor for motors up to 18 amps (AC3), in an insulated polycarbonate enclosure rated to IP68. It requires an RF38 thermal overload relay.

Specification

• Part number: DOLS7.5400
• Brand: Lovato
• Type: direct on-line starter
• Control voltage: 400V AC
• Maximum motor current: 18 amps (AC3)
• Contactor: heavy duty BF series
• Protection: IP68
• Enclosure: insulated polycarbonate
• Operating temperature: -25 to 60°C
• Standards: IEC/EN 60947-1 and 60947-4-1
• Size: 193mm high x 88mm wide x 134mm deep
• Requires: RF38 overload relay
