Loncin/Interpump Petrol Engine Pump Unit, 24hp, 250 Bar, 29 LPM

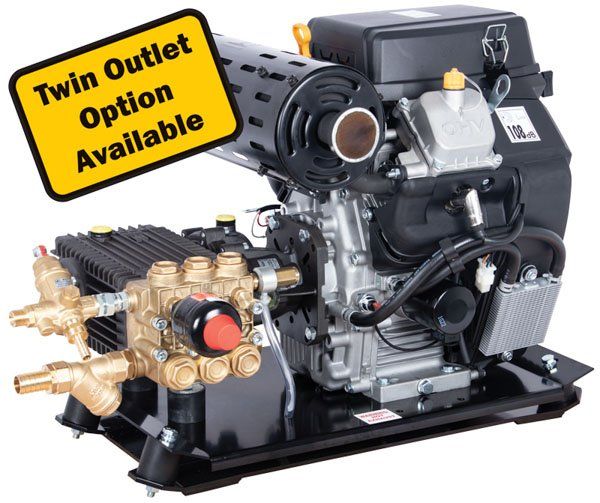

The E100-1084 is a skid mounted petrol engine pump unit with a Loncin 24hp V-twin electric start engine driving an Interpump T2535 pump and gearbox. It delivers up to 250 bar and 29 litres per minute, with a maximum fluid temperature of 60°C.

The unit has an unloader valve with a 1/2" BSP male outlet, an inline suction filter with a 1" hose barb, a return to tank bypass with a 1/2" hose barb, and a safety valve and pulsation dampener. It measures 854 x 500 x 540mm (L x W x H) and weighs 95kg. A fuel tank, battery, leads, lance and hoses are not supplied.

Specification

• 250 Bar max pressure
• 29 Lpm max flow
• Loncin 24Hp V-Twin, electric start
• Interpump T2535 pump and gearbox
• Mounted on heavy duty skid
• 60°C max fluid temperature
• Unloader valve - 1/2"BSPM outlet
• Inline suction filter - 1" hose barb
• Return to tank bypass - 1/2" hose barb
• Safety valve and pulsation dampener
• 854L x 500W x 540H, mm. 95kg

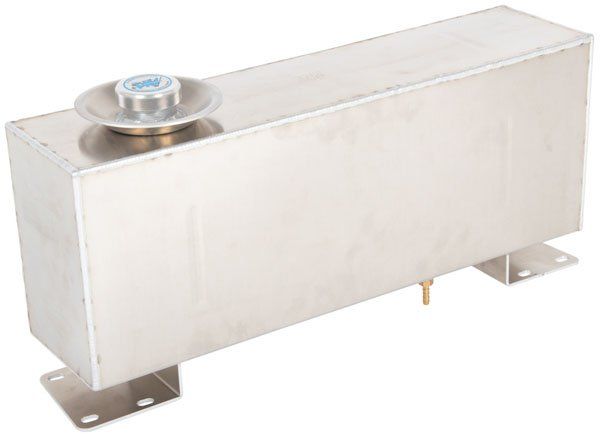

• Not supplied with fuel tank battery/leads/lance/hoses
