Interpump VHT71 Series Electric Motor Pump Unit, 415V, 45kW, 100 Bar, 188 LPM, with Valves and Filter

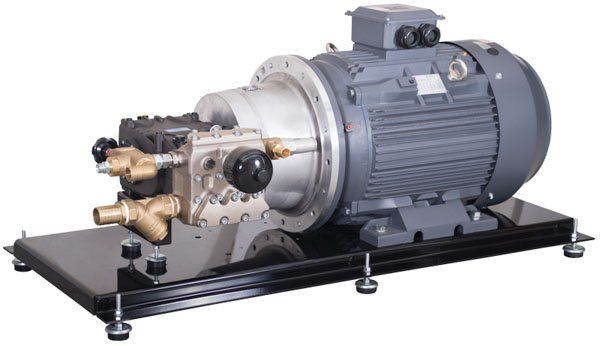

Interpump VHT71 Series Electric Motor Pump Unit, 415V, 45kW, 100 Bar, 188 LPM, with Valves and Filter – image 1
Interpump Motor Pump UnitsUp to 7 Days Subject To Stock

Interpump VHT71 Series Electric Motor Pump Unit, 415V, 45kW, 100 Bar, 188 LPM, with Valves and Filter

SKU M500-1450
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Interpump VHT71 series skid-mounted motor pump unit with an Interpump VHT71150 pump, driven by a 415V 45kW IE3 motor at 1000 rpm. It delivers 100 bar at 188 litres per minute.

It is supplied fitted with a Pratissoli R2 pressure regulator, Pratissoli S723 pre-set safety valve, pre-set 0.7 litre pulsation dampener and brass inlet filter. The pump has a nickel-plated forged brass manifold and is driven through a flexible spider coupling, on a heavy-duty skid. It handles fluid temperatures up to 85°C.

Specification

Part numberM500-1450
BrandInterpump Motor Pump Units
Machine typeSkid-mounted motor pump unit
Maximum pressure100 bar
Flow188 litres per minute
PumpInterpump VHT71150
Motor45kW, 415V, 1000 rpm, IE3
Pressure regulatorPratissoli R2
Safety valvePratissoli S723, pre-set
Pulsation dampener0.7 litre, pre-set
Inlet filterBrass
ManifoldNickel-plated forged brass
CouplingFlexible spider coupling
MountingHeavy-duty skid
Maximum fluid temperature85°C

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Skid-mounted Interpump VHT71 motor pump unit with a VHT71150 pump on a 415V, 45kW, 1000 rpm IE3 motor, with Pratissoli R2 regulator, S723 safety valve, pulsation dampener and brass inlet filter, delivering up to 100 bar at 188 litres per minute.

Specifications

Brand
Interpump Motor Pump Units
Machine Format
Motor Pump Unit
Working Pressure
100
Flow Rate
188
RPM
1000
Electrical Supply
415 Volts
Power Source
Electric
Weight
5 kg

Technical information

100 Bar max pressure

188 Lpm max flow

415V, 45kW, 1000 Rpm, IE3 motor

Interpump VHT71150 pump

Pratissoli R2 pressure regulator

Pratissoli S723 pre-set safety valve

Pre-set 0.7L pulsation dampener

Brass inlet filter

Nickel plated brass forged manifold

Flexible spider coupling

Mounted on heavy duty skid

85°C max fluid temperature
