Interpump VHT58 Motor Pump Unit with Unloader Valve and Filter, 400V, 170 Bar, 13 LPM

Interpump VHT58 MPU M500-1316 – 170 Bar, 13 LPM, 400V with Valve and Filter

Part No: M500-1316

Product Overview

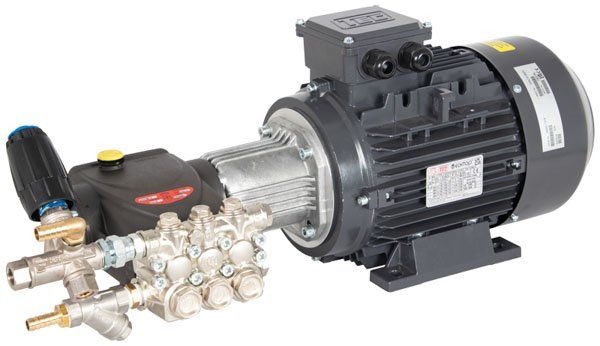

The Interpump VHT58 Series Motor Pump Unit (MPU) – M500-1316 – is a high-quality, pre-assembled pressure pump solution designed for industrial cleaning applications. Featuring a 5.5 kW, 400V, 1450 RPM motor, this MPU delivers 170 bar maximum pressure at 13 litres per minute using the robust Interpump VHT5813 pump. It comes complete with Interpump flange, flexible coupling, unloader valve, and inlet filter, making installation quick and straightforward.

Key Features

• Max pressure: 170 bar
• Max flow rate: 13 LPM
• Motor: 400V, 3-phase – 5.5 kW, 1450 RPM
• Fitted with Interpump VHT5813 pump
• Includes Interpump flange and flexible coupling
• Pre-installed unloader valve for easy pressure control
• Inlet filter protects against contaminants
• 1/2" hose barb inlet
• 3/8" BSPF high-pressure outlet
• 15mm hose barb bypass return
• Max water temperature: 90°C
• Compact and easy to install

Why Choose This Product?

The Interpump M500-1316 MPU is suitable for commercial and industrial cleaning systems requiring a balance of high pressure and mid-range flow. With its pre-fitted unloader and inlet filter, it is designed for convenience, reliability, and long service life, making it suitable for static washdown stations, cabinet units, and OEM system builds.
