nterpump VHT58 MPU M500-1315 – 170 Bar, 11 LPM, 400V with Valve & Filter

Part No: M500-1315

Product Overview

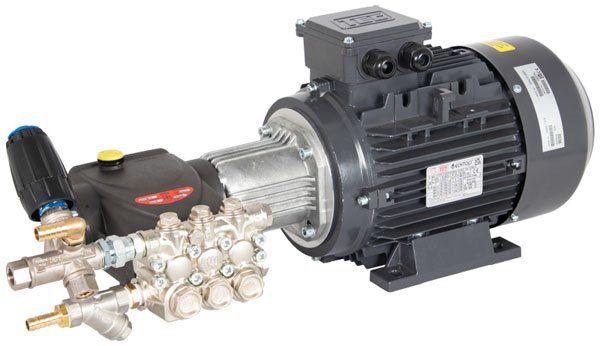

The Interpump VHT58 Series Motor Pump Unit (MPU) – M500-1315 – is a robust and compact high-pressure unit, engineered for medium-duty industrial and commercial cleaning systems. Driven by a 4 kW, 400V, 1450 RPM motor, it delivers up to 170 bar pressure at 11 litres per minute using the durable Interpump VHT5811 pump. Pre-assembled on a steel base with a flange, flexible coupling, unloader valve, and inlet filter, this MPU is ideal for fixed washdown points, cabinet systems, or OEM integration.

Key Features

✅ Max pressure: 170 bar
✅ Max flow rate: 11 LPM
✅ 400V, 3-phase electric motor – 4 kW, 1450 RPM
✅ Includes Interpump VHT5811 pump
✅ Pre-fitted Interpump flange and flexible coupling
✅ Integrated unloader valve for pressure regulation
✅ Inlet filter protects pump from contaminants
✅ 1/2" hose barb inlet connection
✅ 3/8" BSPF high-pressure outlet
✅ 15mm hose barb bypass return
✅ Max fluid temperature: 90°C
✅ Overall dimensions: 710 mm (L) x 260 mm (W) x 280 mm (H)
✅ Weight: 44 kg

Why Choose This Product?

The Interpump M500-1315 MPU is designed to offer a compact, ready-to-use cleaning solution where moderate flow and high pressure are required. Its pre-configured design allows for quick and easy installation, reducing setup time and costs. Suitable for jet wash cabinets, small static systems, or integration into OEM cleaning equipment.
