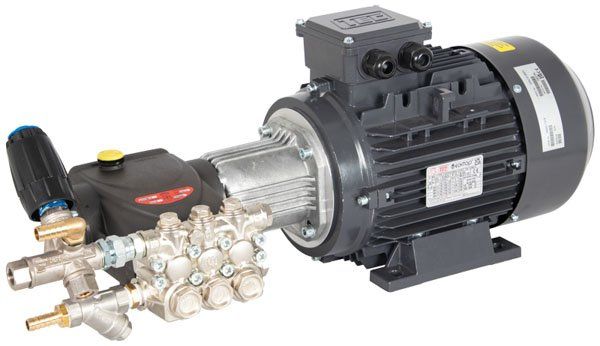

Interpump VHT58 Series MPU with Unloader Valve & Filter – 150 Bar, 7 LPM, 240V (M500-1312)

Part No: M500-1312

Product Overview

The Interpump VHT58 Series Motor Pump Unit (MPU) – M500-1312 – is a compact, efficient high-pressure cleaning solution ideal for light commercial and professional cleaning setups. Driven by a 2.2 kW, 240V electric motor and fitted with the high-quality Interpump VHT5807 pump, this unit delivers up to 150 bar pressure at 7 litres per minute. Pre-assembled with an Interpump flange, flexible coupling, unloader valve, and inlet filter, this MPU is ready for fast integration into wall-mounted, cabinet, or portable systems.

Key Features

✅ Max pressure: 150 bar
✅ Max flow rate: 7 LPM
✅ Single-phase 240V motor – 2.2 kW, 1450 RPM
✅ Includes Interpump VHT5807 high-pressure pump
✅ Pre-fitted with Interpump flange and flexible coupling
✅ Integrated unloader valve for pressure regulation
✅ Inlet filter included for pump protection
✅ 1/2" hose barb inlet connection
✅ 3/8" BSPF high-pressure outlet
✅ 15mm hose barb bypass return
✅ Max water temperature: 90°C
✅ Compact, easy-to-install MPU design

Why Choose This Product?

The Interpump M500-1312 MPU is the perfect solution for smaller-scale pressure cleaning setups that demand professional-grade reliability. Whether installed in a jet wash cabinet, fixed washdown area, or portable trolley system, this unit offers powerful performance in a compact footprint, with premium components and minimal installation time.
