Interpump VHT47 MPU M500-1322 – 160 Bar, 15 LPM with Unloader Valve & Filter (415V)

Part No: M500-1322

Product Overview

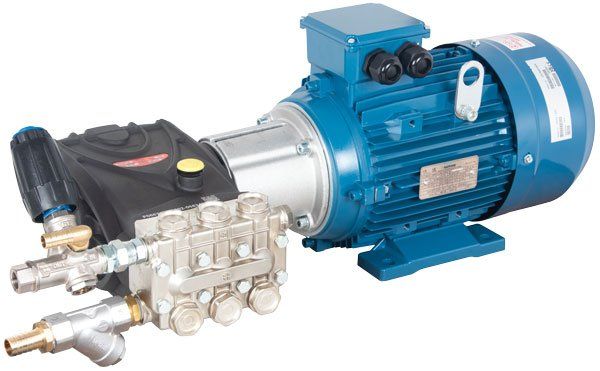

The Interpump VHT47 Series Motor Pump Unit (MPU) – M500-1322 – is a robust, pre-configured high-pressure solution, ideal for static washdown systems, cabinet builds, and commercial pressure washer setups. Fitted with the proven Interpump VHT4715 pump and powered by a 5.5 kW, 415V electric motor, it delivers up to 15 litres per minute at 160 bar, making it ideal for mid-range industrial cleaning applications. Supplied complete with an Interpump flange, flexible coupling, unloader valve, and inlet filter, this unit is ready for fast installation.

Key Features

✅ Max pressure: 160 bar
✅ Max flow rate: 15 LPM
✅ Motor: 415V, 3-phase – 5.5 kW, 1450 RPM
✅ Includes Interpump VHT4715 high-pressure pump
✅ Pre-fitted Interpump flange and flexi coupling
✅ Integrated unloader valve for pressure regulation
✅ Inlet filter for pump protection
✅ 3/4" hose barb inlet
✅ 3/8" BSPF high-pressure outlet
✅ 15mm hose barb bypass return
✅ Max fluid temperature: 90°C
✅ Compact and easy to install on skids, cabinets, or walls

Why Choose This Product?

The Interpump M500-1322 MPU is engineered for reliability, performance, and ease of integration. Its medium-flow, high-pressure performance makes it ideal for plant washdown areas, static jet wash cabinets, or mobile pressure systems requiring rugged, continuous-use performance.
