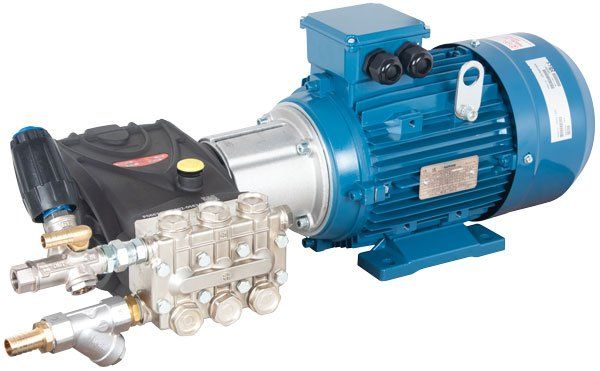

Interpump VHT47 Motor Pump Unit with Unloader Valve and Filter, 415V, 140 Bar, 21 LPM

Interpump VHT47 MPU M500-1320 – 140 Bar, 21 LPM, 415V with Valve & Filter

Part No: M500-1320

Product Overview

The Interpump VHT47 Series Motor Pump Unit (MPU) – M500-1320 – is a pre-assembled high-pressure cleaning unit, delivering robust performance with ease of installation. Powered by a 5.5 kW, 415V motor and equipped with the Interpump VHT4721 pump, this MPU delivers a reliable flow of 21 litres per minute at 140 bar. Mounted with an Interpump flange, flexible coupling, and fitted with an unloader valve and inlet filter, it’s ideal for static washdown setups, industrial cabinets, and OEM cleaning systems.

Key Features

• Max pressure: 140 bar
• Max flow rate: 21 LPM
• 415V, 3-phase motor – 5.5 kW, 1450 RPM
• Includes Interpump VHT4721 high-pressure pump
• Interpump flange and flexible coupling pre-installed
• Unloader valve included for pressure regulation
• Inlet filter to protect pump components
• 3/4" hose barb inlet connection
• 3/8" BSPF high-pressure outlet
• 15mm hose barb bypass return
• Max water temperature: 90°C
• Compact skid layout for easy installation

Why Choose This Product?

The Interpump M500-1320 MPU is designed to offer efficient high-volume cleaning with moderate pressure, making it ideal for agricultural washdown areas, vehicle valeting bays, and commercial jet wash cabinets. Its modular design ensures fast integration into existing systems with minimal assembly required.
