Interpump T1750 Hydraulic Motorpump Unit T1750I-HY37

Interpump T1750 hydraulic motorpump unit delivering up to 175 bar at 50 LPM, driven by a 37.5cm³/rev hydraulic motor needing 65 LPM of oil at 180 bar at 1750 rpm. It has a 3/4" BSP female water inlet, a 3/8" BSP female water outlet, 1" BSP female hydraulic ports and a 3/8" BSP female hydraulic bypass port.

Specification

• Part number: T1750I-HY37
• Brand: Interpump
• Model: T1750 hydraulic motorpump unit
• Maximum water pressure: 175 bar
• Maximum water flow: 50 LPM
• Power: 22.7hp, 16.9kW at 1750 rpm
• Oil requirement: 65 LPM, 180 bar at 1750 rpm
• Hydraulic motor displacement: 37.5cm³/rev
• Water inlet: 3/4" BSP female
• Water outlet: 3/8" BSP female
• Hydraulic inlet and outlet: 1" BSP female
• Hydraulic bypass port: 3/8" BSP female

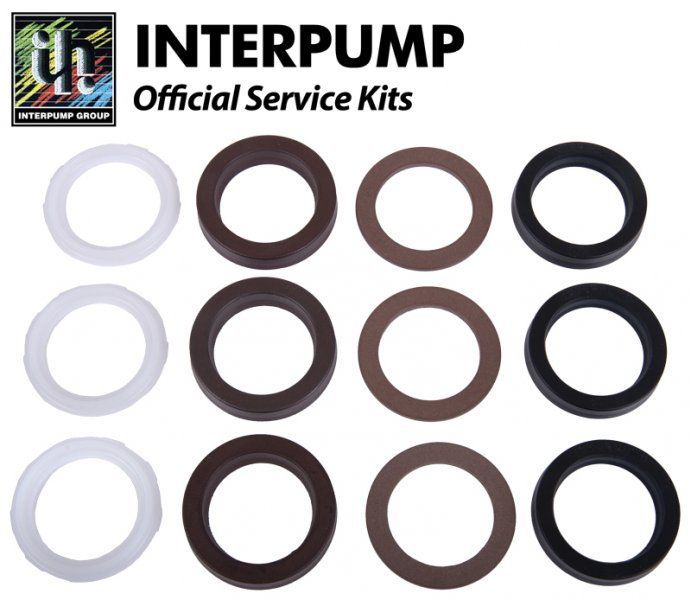

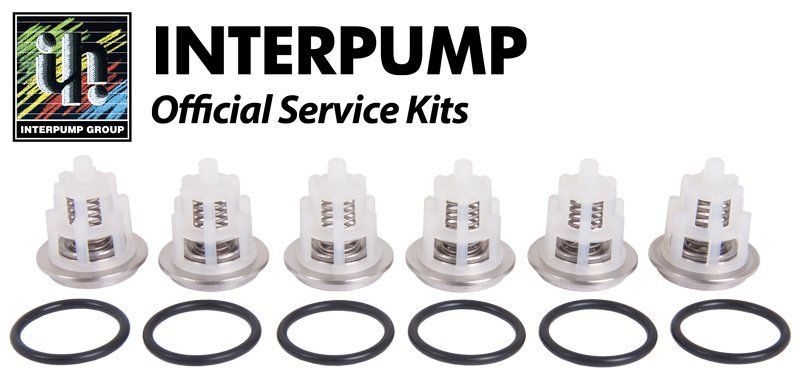

Service kits

Interpump kits for this pump, taken from the Interpump parts list and quick kit guide. Check the model on your pump plate before ordering.
