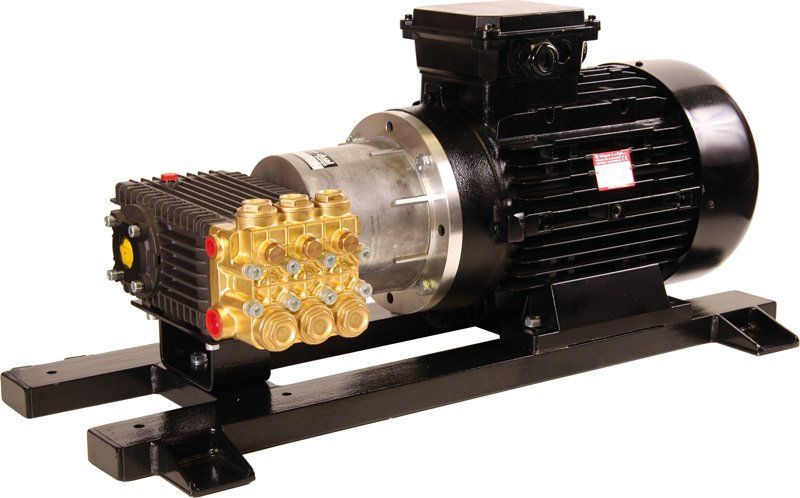

Interpump 66HP Series Motor Pump Unit, 450 Bar, 18 LPM

This Interpump motor pump unit (part number M100-1064) pairs an Interpump W4518 pump with a 415V, 25hp electric motor running at 1450 rpm. It delivers up to 450 bar at 18 litres per minute.

The pump is connected to the motor with a spider coupling and flange, and the assembly is mounted on a heavy duty skid. It handles fluid temperatures up to 60°C.

Specification

• Maximum pressure: 450 bar
• Maximum flow: 18 litres per minute
• Motor: 415V, 25hp, 1450 rpm, rated to IP55/IE3
• Pump: Interpump W4518
• Drive: spider coupling and flange
• Mounting: heavy duty skid
• Maximum fluid temperature: 60°C
• Inlet: 1/2" BSP female
• Outlet: 3/8" BSP female

Supply and options

The unit is supplied without starter switch, hoses or accessories, which must be ordered separately. A version complete with valves and filter is available; call the sales office for details.

Trapped pressure and zero pressure unloader valves are available if not already included. Choosing the correct nozzle and jet size is important for performance, so contact us for guidance on sizing and compatibility.
