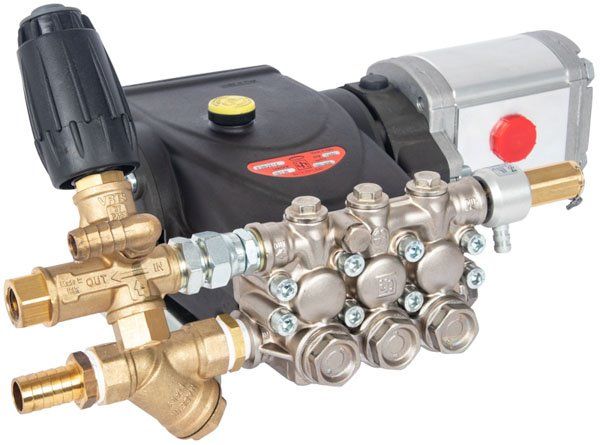

Interpump 59 Series Pump - 1450/1950 Rpm

Interpump 59 series pump for hydraulic motor drive, rated at 250 bar with 15 LPM at 1450 rpm or 20 LPM at 1950 rpm. It has a 5/8" hollow parallel key shaft, a nickel plated brass manifold and an "I" flange for SAE J744 A hydraulic motors.

Specification

• Maximum pressure: 250 bar
• Flow: 15 LPM at 1450 rpm, 20 LPM at 1950 rpm
• Power at 1450 rpm: 9.7hp, 7.13 kW, 47 Nm
• Power at 1950 rpm: 13.1hp, 9.63 kW, 47 Nm
• Shaft: 5/8" hollow parallel key
• Manifold: nickel plated brass
• Flange: "I" flange for SAE J744 A hydraulic motors
• Inlet: 1/2" BSP female
• Outlet: 3/8" BSP female

Service kits

Interpump kits for this pump, taken from the Interpump parts list and quick kit guide. Check the model on your pump plate before ordering.
