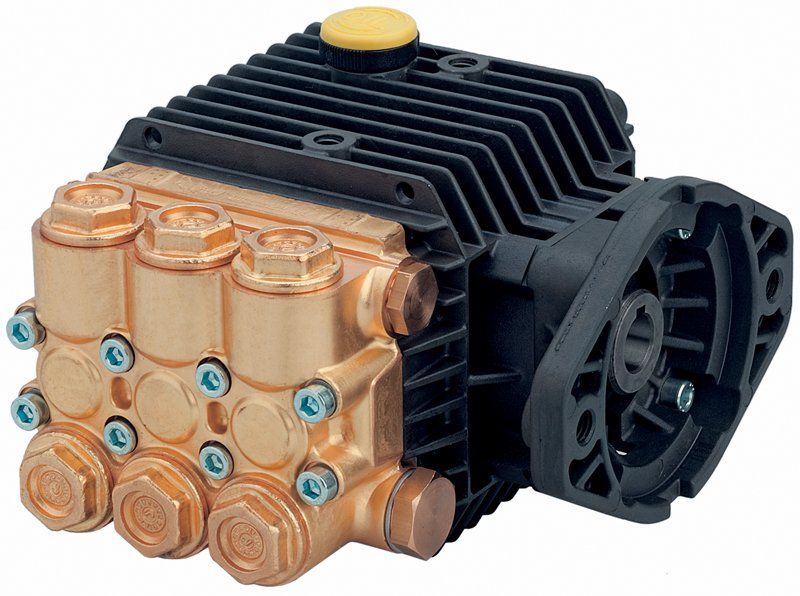

Interpump 51 Series Pump - 2800 Rpm

Name: Interpump 51 Series Pump - 2800 Rpm
Brand: Interpump
SKU: WW-1513I
Price: 223.56 GBP
Availability: InStock

SKU WW-1513I

Was £230.00 ex VATSave 19%

£186.30 ex VAT

£223.56 inc. VAT

In stockOrder by 2pm for next-day delivery.

Free UK mainland delivery over £200 ex VATDelivery & returns
Finance on orders over £1,000Kennet finance calculator
Bulk discounts available
Large or urgent order?Stock moves quickly. Call 015395 66193 to confirm availability.

Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Interpump WW1513I 51 series pump for hydraulic motor drive, rated to 150 bar and 13 litres per minute at 2800 RPM, needing 5hp (3.7kW).

It has a 5/8" hollow parallel key shaft, an "I" flange for SAE J744 A hydraulic motors, a forged brass manifold, a 3/8" BSP female inlet and a 1/4" BSP female outlet.

Specification

Part number	WW-1513I
Brand	Interpump
Model	WW1513I
Series	51
Maximum pressure	150 bar
Maximum flow	13 litres per minute
Speed	2800 RPM
Power required	5hp (3.7kW)
Shaft	5/8" hollow, parallel key
Mounting	"I" flange for SAE J744 A hydraulic motors
Manifold	Forged brass
Inlet	3/8" BSP female
Outlet	1/4" BSP female

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Interpump WW1513I 51 series pump for hydraulic motors, 150 bar, 13 litres per minute, 2800 RPM, 5/8" hollow shaft.

Specifications

Brand: Interpump
Pumps and Parts by Series: Interpump 51 Series
Search by Interpump model: WW1513
Working Pressure: 150
Flow Rate: 13
RPM: 2800
Shaft: Hollow Shaft 5/8" Parallel Key

Pump Inlet: ⅜" BSP Female
Pump Outlet: ¼" BSP Female
Temperature: 60°C
HP Power Required: 3.7KW / 5 Hp
Power Source: Hydraulic Pumps
Weight: 5.75 kg

Technical information

150 Bar

13 Lpm

2800 Rpm

5.0 Hp, 3.67 kW

5/8" hollow shaft

Forged brass manifold

"I" flange for SAE J744 A hydraulic motors

3/8"BSP female inlet

1/4"BSP female outlet

Documents

Interpump 51Series I Technical Data.pdf

Interpump 51Series Tool I Chart.pdf

Dual Pumps 51 Series I Quick Kit Guide.pdf
