Hypro In-Line Filter 3/4" Female – 80 Mesh (177 Micron)

Hypro In-Line Filter 3/4" Female – 80 Mesh

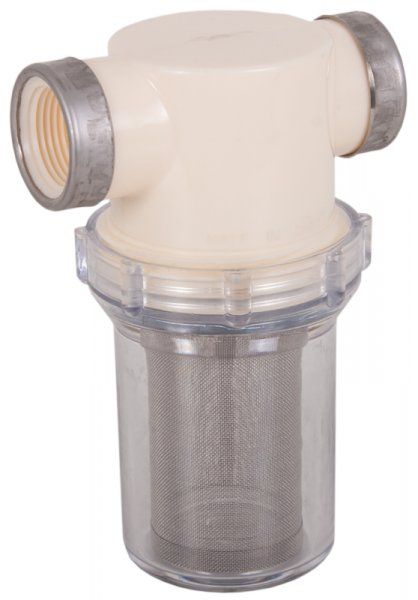

The Hypro in-line filter is designed to remove particles from the water supply before they reach downstream equipment.

Its 80-mesh stainless steel screen filters particles down to 177 microns. The clear polyimide bowl makes it easy to see when debris has collected and the screen needs checking.

The filter has a nylon body, 3/4" female threaded ports and BUNA-N gaskets. Viton gaskets are also available. Its maximum working pressure is 10 bar at 21°C, reducing to 7 bar at 51°C.

Key Features

• 80-mesh filtration, equivalent to 177 microns
• 3/4" female threaded inlet and outlet ports
• Clear bowl for visual inspection
• AISI 304 stainless steel filter screen
• Nylon body and clear polyimide bowl
• BUNA-N gaskets fitted
• Viton gaskets available
• Maximum pressure of 10 bar at 21°C or 7 bar at 51°C

Technical Specifications
