Hypro 9300 Series Pump 9306C-HM1C

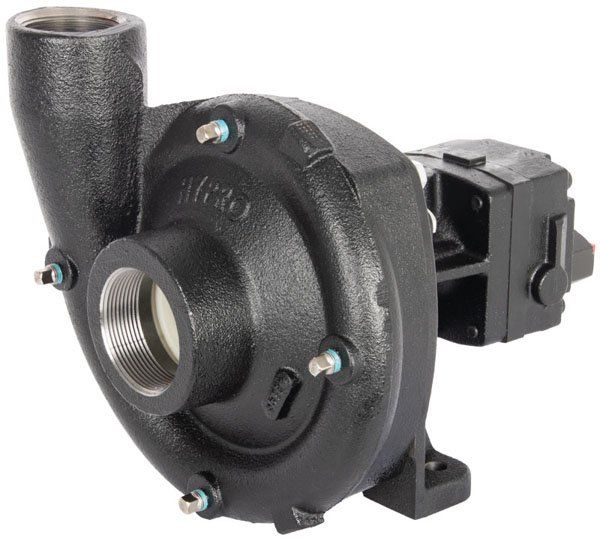

Hypro 9300 series hydraulic motor driven centrifugal pump with a cast iron body and Viton seals, delivering up to 784 LPM at up to 8.8 bar. It is not self-priming and runs on up to 49.2 LPM of oil at up to 207 bar.

Specification

• Part number: 9306C-HM1C
• Brand: Hypro
• Series: 9300
• Model: 9306C-HM1C
• Drive: hydraulic motor
• Maximum pressure: 8.8 bar
• Maximum flow: 784 LPM
• Priming: non self-priming
• Body: cast iron
• Seals: Viton
• Maximum oil pressure: 207 bar
• Maximum oil flow: 49.2 LPM
• Pump inlet: 2" female
• Pump outlet: 1 1/2" female
• Motor ports: 3/4" NPT female in, 3/4" NPT female out
• Mechanical seal: carbon ceramic
• Impeller: glass filled nylon
