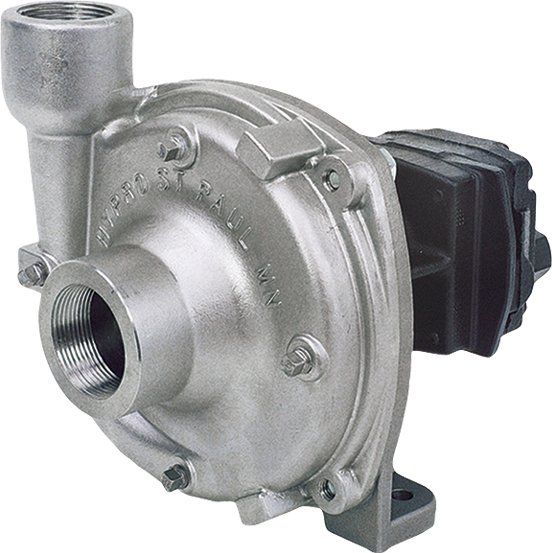

Hypro 9300 Series Pump

Hypro 9300 series hydraulically driven centrifugal pump with an AISI 316 stainless steel body, rated to 8.9 bar and 431 litres per minute. It needs up to 49 litres per minute of oil at 150 bar and has a Life Guard silicon carbide mechanical seal.

Specification

• Part number: 9303S-HM1C
• 8.9 Bar max pressure
• 431 Lpm max flow
• Non self-priming
• Hydraulic motor driven
• AISI 316 st.steel body, viton seals
• 150 Bar max oil pressure
• 49 Lpm max oil flow
• 1"1/2 female pump inlet
• 1"1/4 female pump outlet
• Motor ports 1/2"NPTF in, 3/4"NPTF out
• Life Guard® silicon carbide mechanical seal
• Glass filled polypropylene impeller

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
