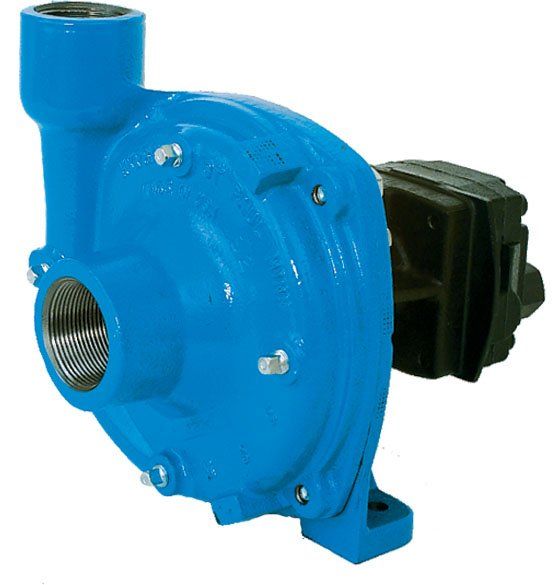

Hypro 9300 Series Pump 9303C-HM4C

Hypro 9300 series hydraulic motor driven centrifugal pump with a cast iron body and Viton seals, delivering up to 435 LPM at up to 6.4 bar. It is not self-priming and runs on up to 27 LPM of oil at up to 150 bar.

Specification

• Part number: 9303C-HM4C
• Brand: Hypro
• Series: 9300
• Model: 9303C-HM4C
• Drive: hydraulic motor
• Maximum pressure: 6.4 bar
• Maximum flow: 435 LPM
• Priming: non self-priming
• Body: cast iron
• Seals: Viton
• Maximum oil pressure: 150 bar
• Maximum oil flow: 27 LPM
• Pump inlet: 1 1/2" female
• Pump outlet: 1 1/4" female
• Motor ports: 1/2" NPT female in, 3/4" NPT female out
• Mechanical seal: carbon ceramic
• Impeller: glass filled nylon
