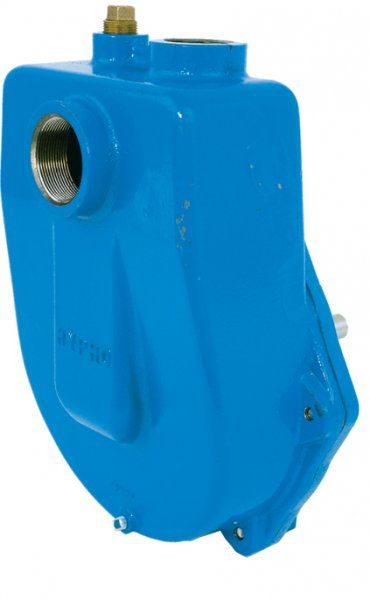

Hypro 9200SP Centrifugal Pump – 9205C-BSP
Hypro 9200SP Centrifugal Pump – 9205C-BSP – image 1
Hypro

Hypro 9200SP Centrifugal Pump – 9205C-BSP

SKU 9205C-BSP
Max pressure
10 bar
£2,316.88 ex VAT
£2,780.26 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Hypro 9200SP series self-priming, pedestal mounted centrifugal pump for farm spraying and liquid transfer, such as liquid fertilisers, crop protection chemicals and wettable powder slurries, filling nurse tanks and watering seedbeds. It is rated to 606 litres per minute and 10 bar at up to 3800 RPM.

It has a cast iron body, Viton seals, a carbon ceramic mechanical seal, a glass filled nylon impeller and a 7/8" male shaft, with 2" BSP female inlet and outlet. The maximum fluid temperature is 60°C.

Specification

Part number9205C-BSP
BrandHypro
Model9200SP series, 9205C-BSP
Maximum pressure10 bar
Maximum flow606 litres per minute
Maximum speed3800 RPM
Maximum power20hp (15kW)
MountingPedestal
Shaft7/8" male
Inlet2" BSP female
Outlet2" BSP female
BodyCast iron
SealsViton, carbon ceramic mechanical seal
ImpellerGlass filled nylon
Maximum fluid temperature60°C

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Hypro 9205C-BSP cast iron self-priming centrifugal pump, 606 litres per minute, 10 bar, 2" BSP female ports.

Specifications

Brand
Hypro
Max Pressure Rating
10 bar
HP Power Required
15KW / 20 Hp
Diaphragm Material
Viton
Priming
Self Priming
Weight
32.4 kg

Technical information

10 Bar max pressure

606 Lpm max flow

3800 Rpm max speed

20 Hp, 14.7 kW max power

Self-priming, pedestal mount

Cast iron body, viton seals

7/8" male shaft

2" BSP female inlet

2" BSP female outlet

Carbon ceramic mechanical seal

Glass filled nylon impeller

60°C max fluid temperature

Documents

Data Sheet pdf_link_1

Hypro 9205SP Parts List.pdf

Data Sheet pdf_link_2

Hypro 9205SP Technical Data.pdf

Data Sheet pdf_link_4

Hypro 9205SP Repair Kit Manual.pdf
