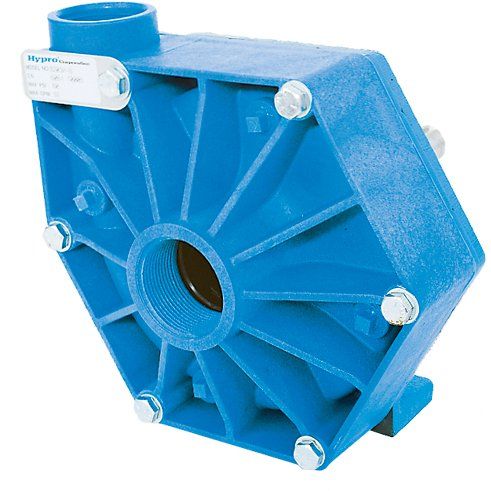

Hypro 9200 Series Pump - Engine Mount

Hypro 9200 series engine mount centrifugal pump with a polypropylene body and 3/4" female shaft, rated to 344 LPM and 4.5 bar.

Specification

• Maximum pressure: 4.5 bar
• Maximum flow: 344 LPM
• Maximum speed: 3600 rpm
• Maximum power: 5.5hp, 4.0 kW
• Priming: non self-priming

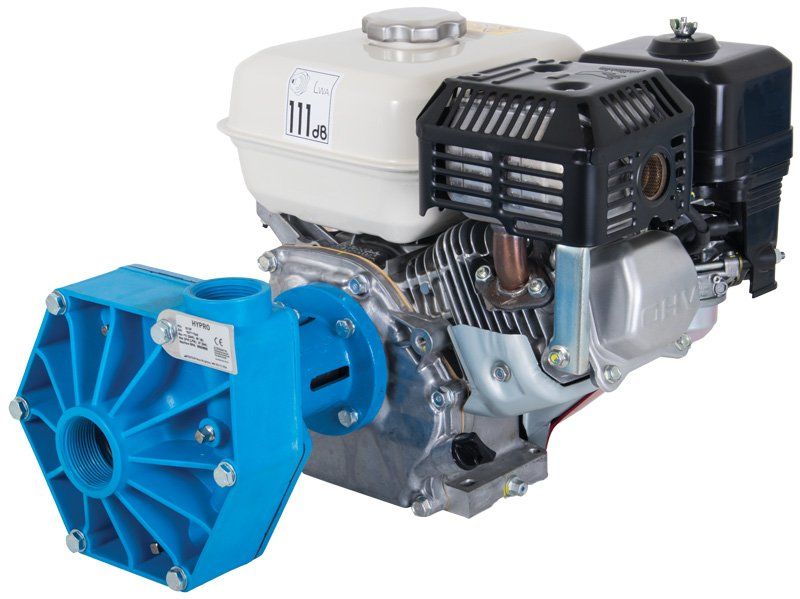

• Mounting: for 5.5hp engine
• Body: polypropylene
• Seals: Viton
• Shaft: 3/4" female
• Inlet: 1 1/2" female
• Outlet: 1 1/4" female
• Mechanical seal: carbon ceramic
• Impeller: glass filled polypropylene
• Maximum fluid temperature: 60°C
