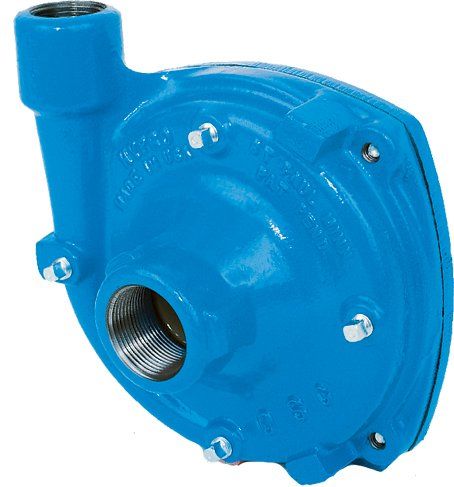

Hypro 9200 Series Pump

Hypro 9200 series pedestal mounted centrifugal pump with a cast iron body and 5/8" male shaft, rated to 530 LPM and 11.7 bar.

Specification

• Maximum pressure: 11.7 bar
• Maximum flow: 530 LPM
• Maximum speed: 6000 rpm
• Maximum power: 19hp, 14.0 kW
• Priming: non self-priming
• Mounting: pedestal
• Body: cast iron
• Seals: Viton
• Shaft: 5/8" male
• Inlet: 1 1/2" female
• Outlet: 1 1/4" female
• Mechanical seal: carbon ceramic
• Impeller: glass filled nylon
• Maximum fluid temperature: 60°C
