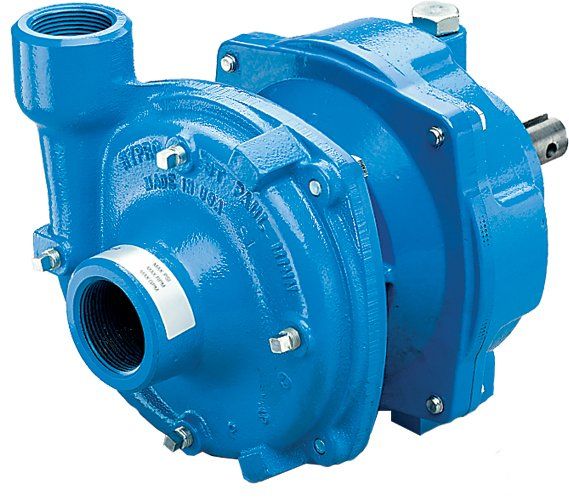

Hypro 9000 Series Pump

Hypro 9000 series gearbox driven centrifugal pump with a cast iron body and 1" male shaft, rated to 401 LPM and 5.4 bar.

Specification

• Maximum pressure: 5.4 bar
• Maximum flow: 401 LPM
• Maximum speed: 540 rpm
• Maximum power: 7hp, 5.1 kW
• Priming: non self-priming
• Drive: gearbox
• Body: cast iron
• Seals: Viton
• Shaft: 1" male
• Inlet: 1 1/2" female
• Outlet: 1 1/4" female
• Mechanical seal: carbon ceramic
• Impeller: glass filled nylon
• Maximum fluid temperature: 60°C
