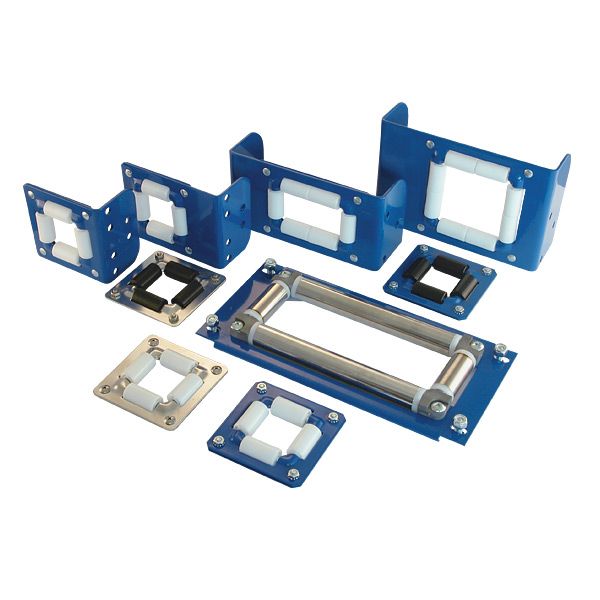

Heavy-duty hose reel roller guides designed to protect hoses and provide smooth payout and rewinding. Available in face-mounted, right-angled and large four-way configurations for hoses with an internal bore of up to 1½″.

The rollers guide the hose horizontally and vertically, helping it move freely when pulled from different directions. They also prevent the hose from rubbing against walls, panels, cabinet openings and sharp edges that could otherwise cause premature wear or damage.

Suitable for pressure washer hoses and other industrial hose reel installations. Selected models are available with solid rollers or stainless-steel construction.

Available roller guides

T4RB Face-Mounted Roller Guide
For hoses up to ¾″ (19 mm) internal bore. Designed for face mounting and ideal for guiding hoses through panels and similar openings.

• Maximum hose bore: ¾″ (19 mm)
• Face-mounted design
• Standard roller model: T4RB
• Solid roller version: T4SR

T1728-1 Right-Angled Roller Guide
A right-angled guide suitable for hoses up to ¾″ (19 mm) internal bore. Ideal for hose payout along walls and around fixed installations.

• Maximum hose bore: ¾″ (19 mm)
• Right-angled mounting
• Standard version: T1728-1
• Solid roller version: T1728
• Stainless-steel version: T1728-1-SS

T8101 Large Four-Way Roller Assembly
A large four-way guide for cabinet openings, doorways and other locations where sharp edges could cut or damage the hose. Supplied as standard on SP and DP Series hose reels.

• Suitable for hoses up to 1½″ internal bore
• Four-way roller arrangement
• Suitable for cabinet and doorway openings
• Protects hoses from sharp edges
• Standard equipment on SP and DP Series reels

T1829-1 Truck Series Roller Guide
A heavy-duty right-angled roller guide for hoses up to 1″ internal bore. The right-angled edges allow the guide to be securely fixed at both ends.

• Maximum hose bore: 1″
• Suitable for truck and mobile hose reel installations
• Fixing points at both ends
• Standard version: T1829-1
• Solid roller version: T1828-1
• Stainless-steel version: T1829-1-SS

T7527 Large-Bore Four-Way Roller Guide
Designed with two horizontal and two vertical rollers, allowing large-bore hoses to pass through the guide smoothly from different directions. Supplied as standard on the SHL-N-635 hose reel.

• Maximum hose bore: 1¼″
• Two horizontal and two vertical rollers
• Suitable for large-bore industrial hose
• Supplied as standard on SHL-N-635 reels

Please select the correct roller guide according to your hose size, mounting position and operating environment. Contact Flowjet Cleaning Equipment for assistance with compatibility.
