Name: R+M Suttner Red 10m High Pressure Hose, 400 Bar, DN10, 2 Wire, 3/8" M x 3/8" M, Wrapped
Brand: R&M Suttner
SKU: 380144710
Price: 135.6 GBP
Availability: InStock

Overview

R+M Suttner red 10 metre high pressure hose with a DN10 bore, rated to 400 bar / 5,800 psi and 150°C. Suitable for heavy-duty industrial and commercial pressure washer applications.

Two wire reinforcement with a wrapped cover. Supplied with zinc plated 3/8" male x 3/8" male connections.

Specification

Part number	380144710
Brand	R+M Suttner
Colour	Red
Length	10 metres
Bore	DN10 (10mm)
Outer diameter	16.8mm
Reinforcement	2 wire
Cover	Wrapped
Maximum working pressure	400 bar / 5,800 psi
Burst pressure	1,320 bar / 19,145 psi
Maximum temperature	150°C
Inlet connection	3/8" male
Outlet connection	3/8" male
Fitting material	Zinc plated
Weight	5.10kg
Country of origin	Germany

Before installation: Check the thread size and gender of both connections, and the pressure and temperature ratings of your machine and accessories, before ordering. See our BSP thread size chart. Do not exceed the lowest-rated component in the system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

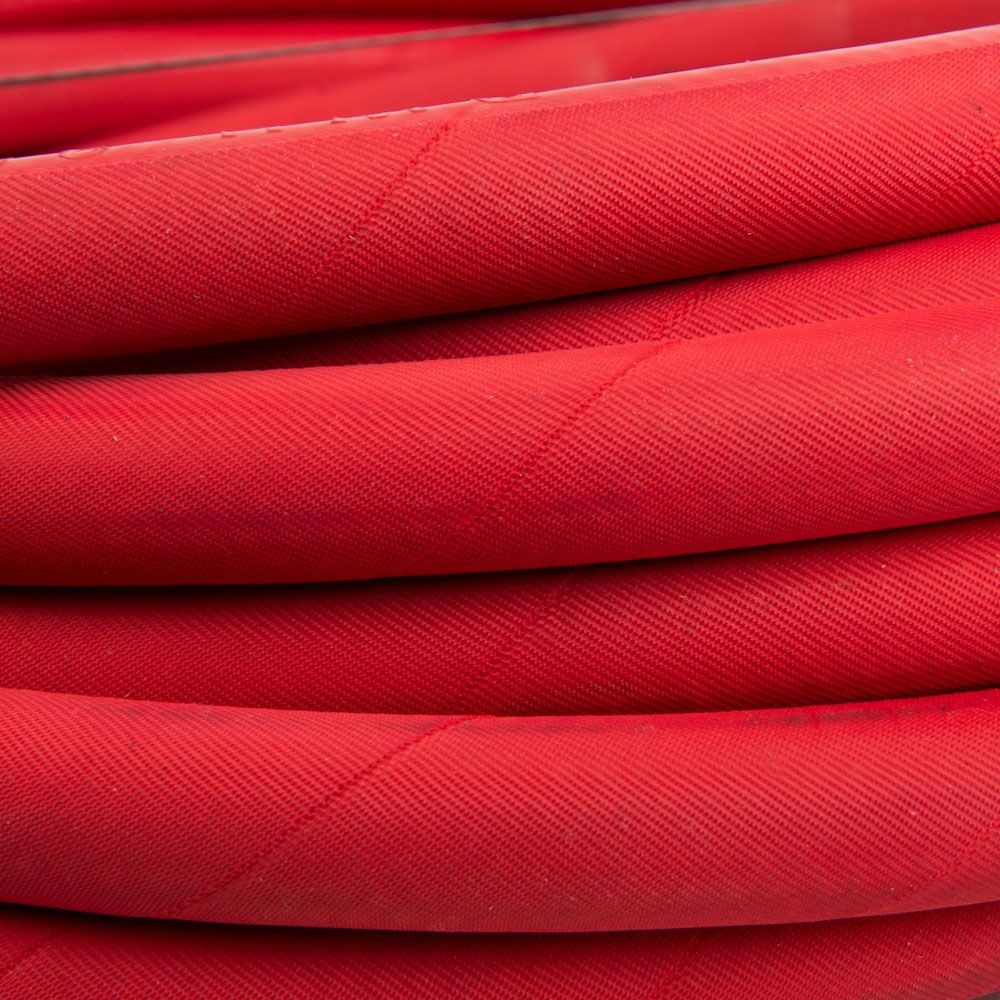

A red 10 metre R+M Suttner high pressure hose with a DN10 (10mm) bore, 2 wire reinforcement and a wrapped cover. It is rated to 400 bar / 5,800 psi with a 150°C maximum temperature. Fitted with zinc plated 3/8" male connections at both ends.

Specifications

Brand: R&M Suttner
Max Pressure Rating: 400 bar
Inlet: ⅜" BSP Male
Outlet: ⅜" BSP Male
Max Temperature Rating: 150°C
DN Bore: 10mm (3/8")

Hose Length: 10m
Hose Type: Wrapped Cover
Material: Zinc Plated Steel
Colour: Red
Weight: 5.1 kg

Technical information

Bore: DN10 (10mm)

Maximum working pressure: 400 bar / 5,800 psi

Burst pressure: 1,320 bar / 19,145 psi

Maximum temperature: 150°C

Inlet connection: 3/8" male

Outlet connection: 3/8" male

Fitting material: Zinc plated

Colour: Red

Length: 10 metres

Outer diameter: 16.8mm

Reinforcement: 2 wire

Cover: Wrapped

Weight: 5.10kg

Country of origin: Germany

Compare similar products

Detail	This product	Suttner ST2300 Wash Gun, 3/8" F x 1/4" F, 310 Bar, 45 LPM	Suttner ST2600 Wash Gun, 3/8" F x 1/4" F, 310 Bar, 45 LPM	R+M Suttner ST1100 Wash Gun, 210 Bar, 25 LPM, 3/8" F x 1/4" F
Price	£113.00 ex VAT £135.60 inc VAT	£32.80 ex VAT £39.36 inc VAT	£42.90 ex VAT £51.48 inc VAT	£28.20 ex VAT £33.84 inc VAT
Max pressure	400 bar	310 bar	310 bar	210 bar
Max flow	–	45 LPM	45 LPM	25 LPM
Max temperature	150°C	150°C	150°C	150°C
Inlet	⅜" BSP Male	⅜" BSP Female	⅜" BSP Female	⅜" BSP Female
Outlet	⅜" BSP Male	¼" BSP Female	¼" BSP Female	¼" BSP Female
Availability	In stock	In stock	In stock	In stock
