R+M Suttner Black 20m K-Lock High Pressure Hose, 400 Bar, DN8, 2 Wire, TR22 F x TR22 F, Smooth
Black 20m high pressure hose – DN8 – 400 bar
R+M Suttner hose with TR22 F x TR22 F ends
R+M Suttner Black 20m K-Lock High Pressure Hose – 400 Bar – DN8 – 2 Wire – TR22 F x TR22 F – Smooth
Black 20m high pressure hose – DN8 – 400 bar
Karcher CompatibleKarcher Equivalent New K-Lock

R+M Suttner Black 20m K-Lock High Pressure Hose, 400 Bar, DN8, 2 Wire, TR22 F x TR22 F, Smooth

SKU 34561664220
Max pressure
400 bar
Max temperature
150°C
Inlet
TR22 Female
Outlet
TR22 Female
£252.00 ex VAT
£302.40 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

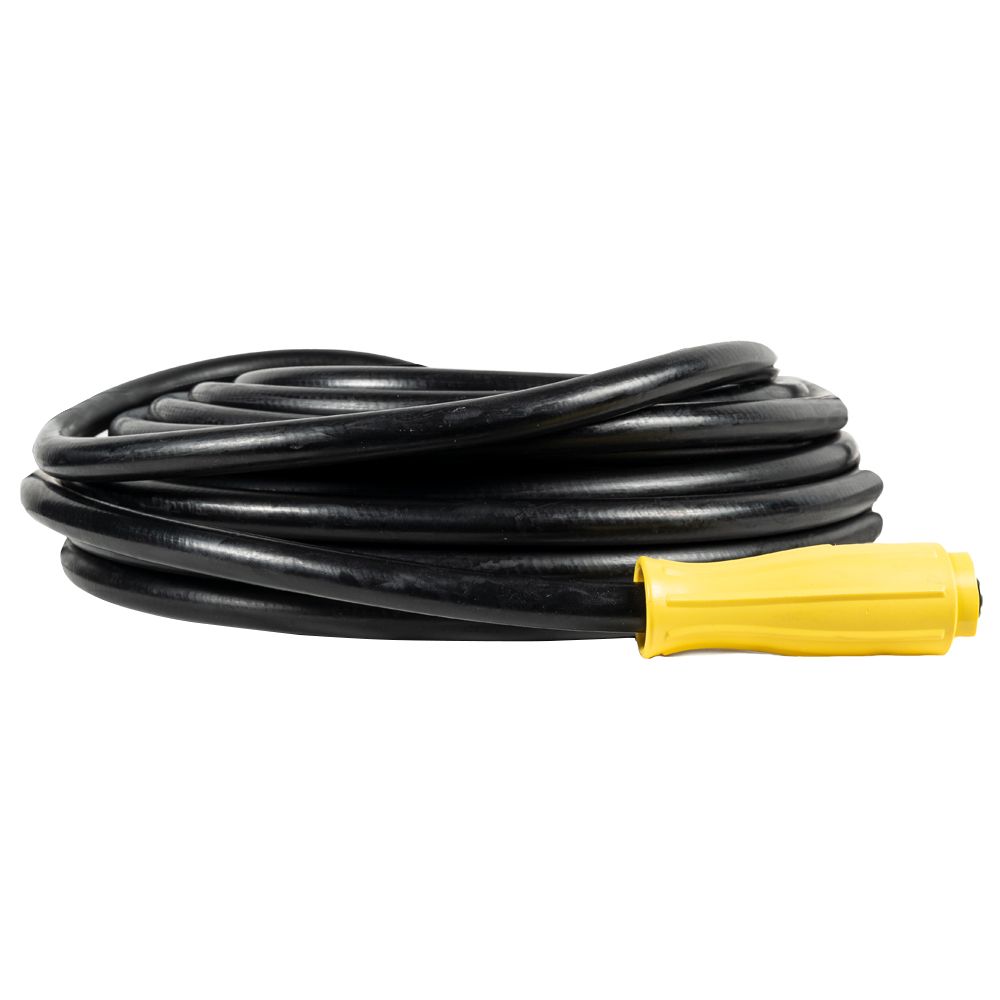

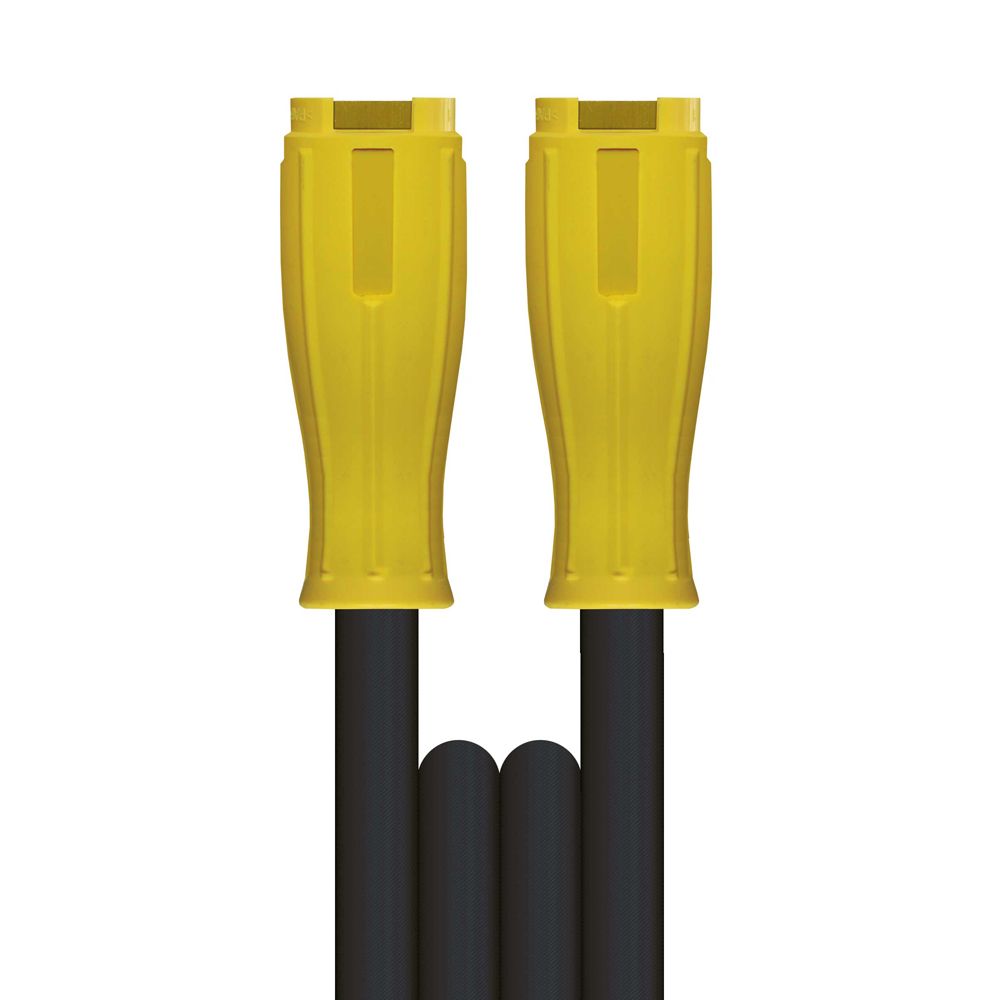

R+M Suttner black 20 metre high pressure hose with a DN8 bore, rated to 400 bar / 5,800 psi and 150°C.

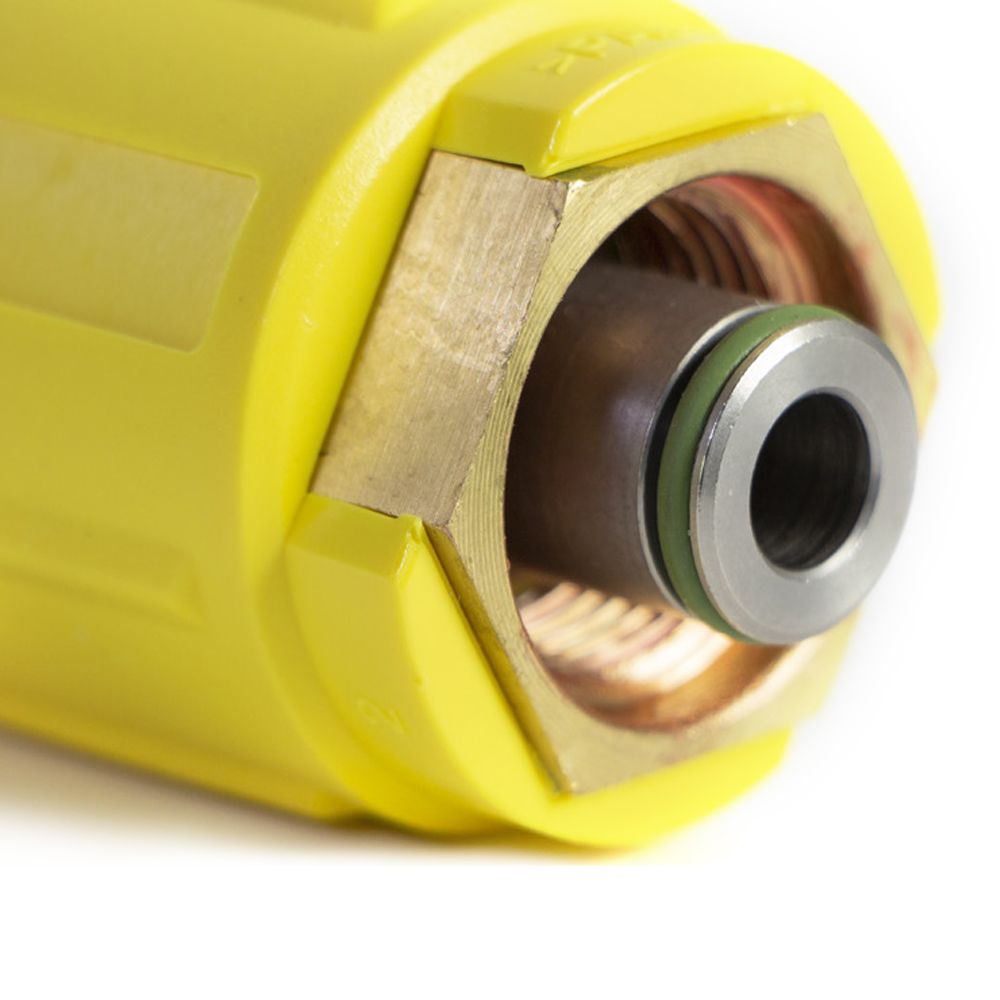

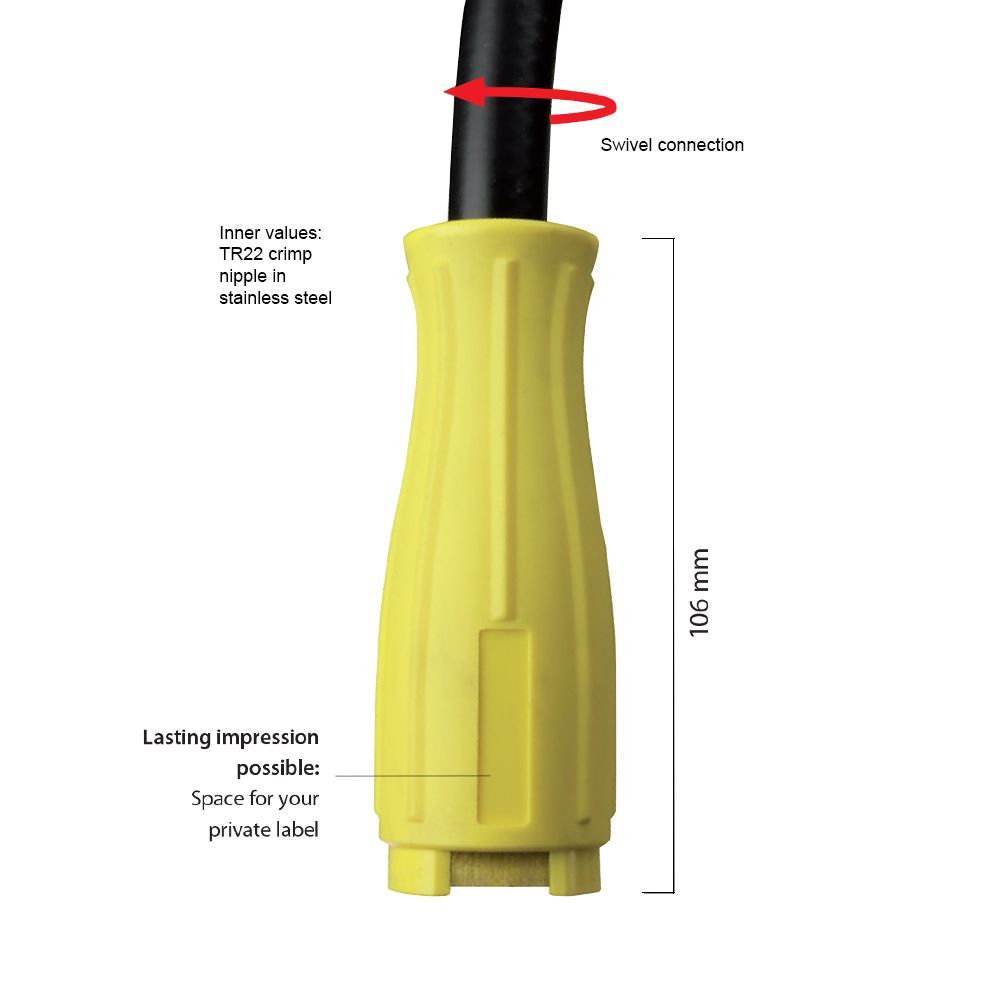

Two wire reinforcement with a smooth cover. Supplied with zinc plated TR22 female (Kärcher K-Lock type) x TR22 female (Kärcher K-Lock type) connections.

Specification

Part number34561664220
BrandR+M Suttner
ColourBlack
Length20 metres
BoreDN8 (8mm)
Outer diameter16.7mm
Reinforcement2 wire
CoverSmooth
Maximum working pressure400 bar / 5,800 psi
Burst pressure1,600 bar / 23,200 psi
Maximum temperature150°C
Inlet connectionTR22 female (Kärcher K-Lock type)
Outlet connectionTR22 female (Kärcher K-Lock type)
Fitting materialZinc plated
Weight8.57kg
Country of originGermany

Before installation: Check the thread size and gender of both connections, and the pressure and temperature ratings of your machine and accessories, before ordering. See our BSP thread size chart. Do not exceed the lowest-rated component in the system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

A black 20 metre R+M Suttner high pressure hose with a DN8 (8mm) bore, 2 wire reinforcement and a smooth cover. It is rated to 400 bar / 5,800 psi with a 150°C maximum temperature. Fitted with zinc plated TR22 female (Kärcher K-Lock type) connections at both ends.

Specifications

Brand
Karcher Compatible
Max Pressure Rating
400 bar
Inlet
TR22 Female
Outlet
TR22 Female
Max Temperature Rating
150°C
DN Bore
8mm (5/16")
Hose Length
20m
Hose Type
Smooth Cover
Colour
Black
Weight
8.57 kg

Technical information

Bore: DN8 (8mm)

Maximum working pressure: 400 bar / 5,800 psi

Burst pressure: 1,600 bar / 23,200 psi

Maximum temperature: 150°C

Inlet connection: TR22 female (Kärcher K-Lock type)

Outlet connection: TR22 female (Kärcher K-Lock type)

Fitting material: Zinc plated

Colour: Black

Length: 20 metres

Outer diameter: 16.7mm

Reinforcement: 2 wire

Cover: Smooth

Weight: 8.57kg

Country of origin: Germany
