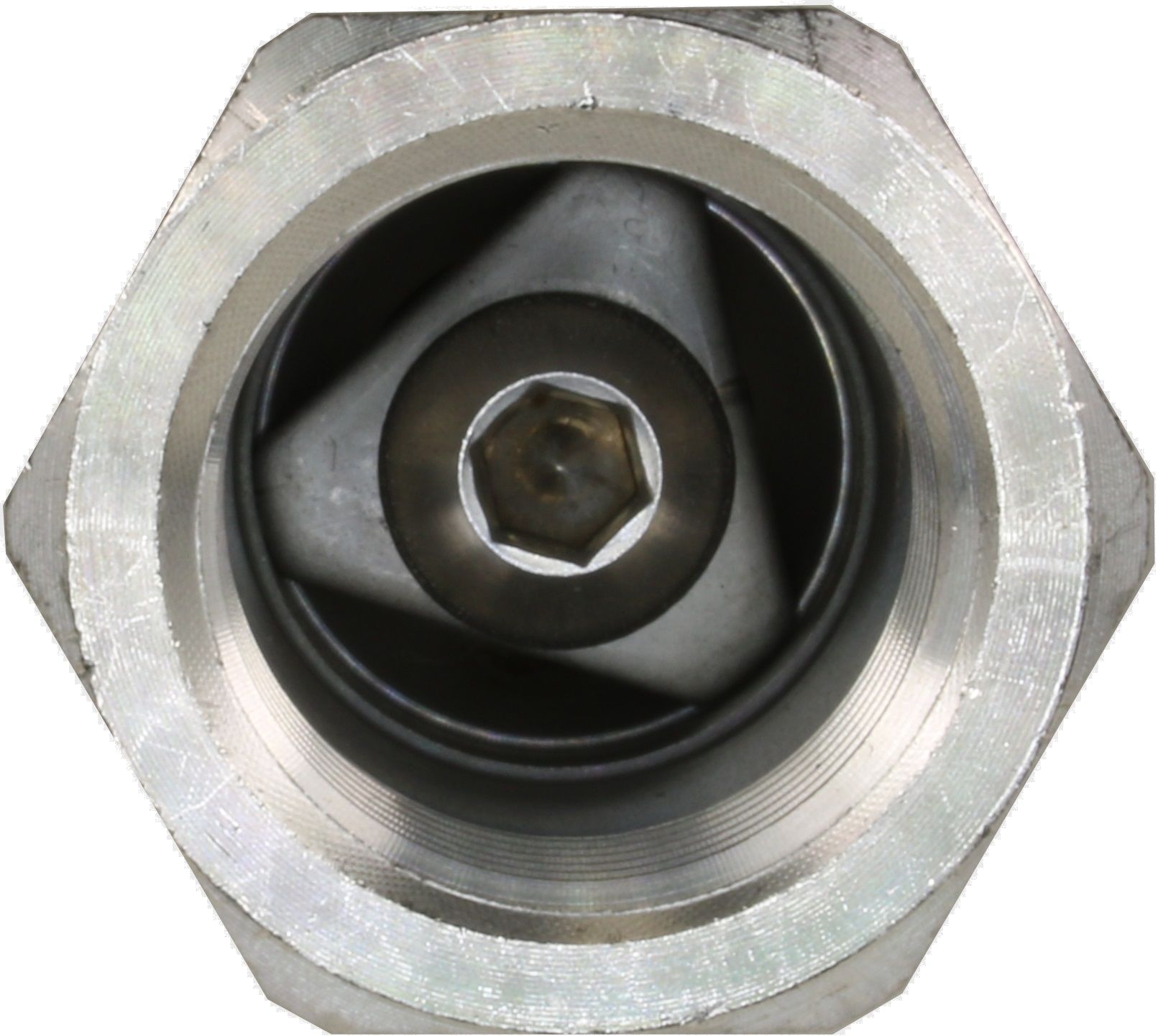

Stainless Steel Non Return Valve VNR-I, 450 Bar, 80 LPM, 1/2" F x 1/2" F
Stainless Steel Non Return Valve VNR-I, 450 Bar, 80 LPM, 1/2" F x 1/2" F – image 1
Stainless Steel Non Return Valve VNR-I, 450 Bar, 80 LPM, 1/2" F x 1/2" F – image 2
Stainless Steel Non Return Valve VNR-I, 450 Bar, 80 LPM, 1/2" F x 1/2" F – image 3

Stainless Steel Non Return Valve VNR-I, 450 Bar, 80 LPM, 1/2" F x 1/2" F

SKU 53170
Max pressure
450 bar
Inlet
½" BSP Female
Outlet
½" BSP Female · Thread chart
£44.60 ex VAT
£53.52 inc. VAT
Available on backorderSecure your order now for delivery in approx 2–3 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Stainless steel non return valve VNR-I, allowing one-way flow and preventing back flow, rated to 450 bar, 80 litres per minute and 90°C.

It has a Viton O-ring, a spring return on the piston, minimum pressure loss and rapid intervention at minimum flow variation. It weighs 0.08kg.

Specification

Part number53170
MaterialStainless steel
Maximum pressure450 bar
Maximum flow80 litres per minute
Maximum temperature90°C
Inlet1/2" BSP female
Outlet1/2" BSP female
Height66mm
O-ringViton
Weight0.08kg

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Max Pressure Rating
450 bar
Inlet
½" BSP Female
Outlet
½" BSP Female
Material
Stainless Steel
Weight
0.08 kg

Technical information

Maximum pressure: 450 bar

Maximum flow: 80 litres per minute

Maximum temperature: 90°C

Inlet: 1/2" BSP female

Outlet: 1/2" BSP female

Material: Stainless steel

Height: 66mm

O-ring: Viton

Weight: 0.08kg
