FOAMit Wall Mounted Mist System
FOAMit Wall Mounted Mist System – product image

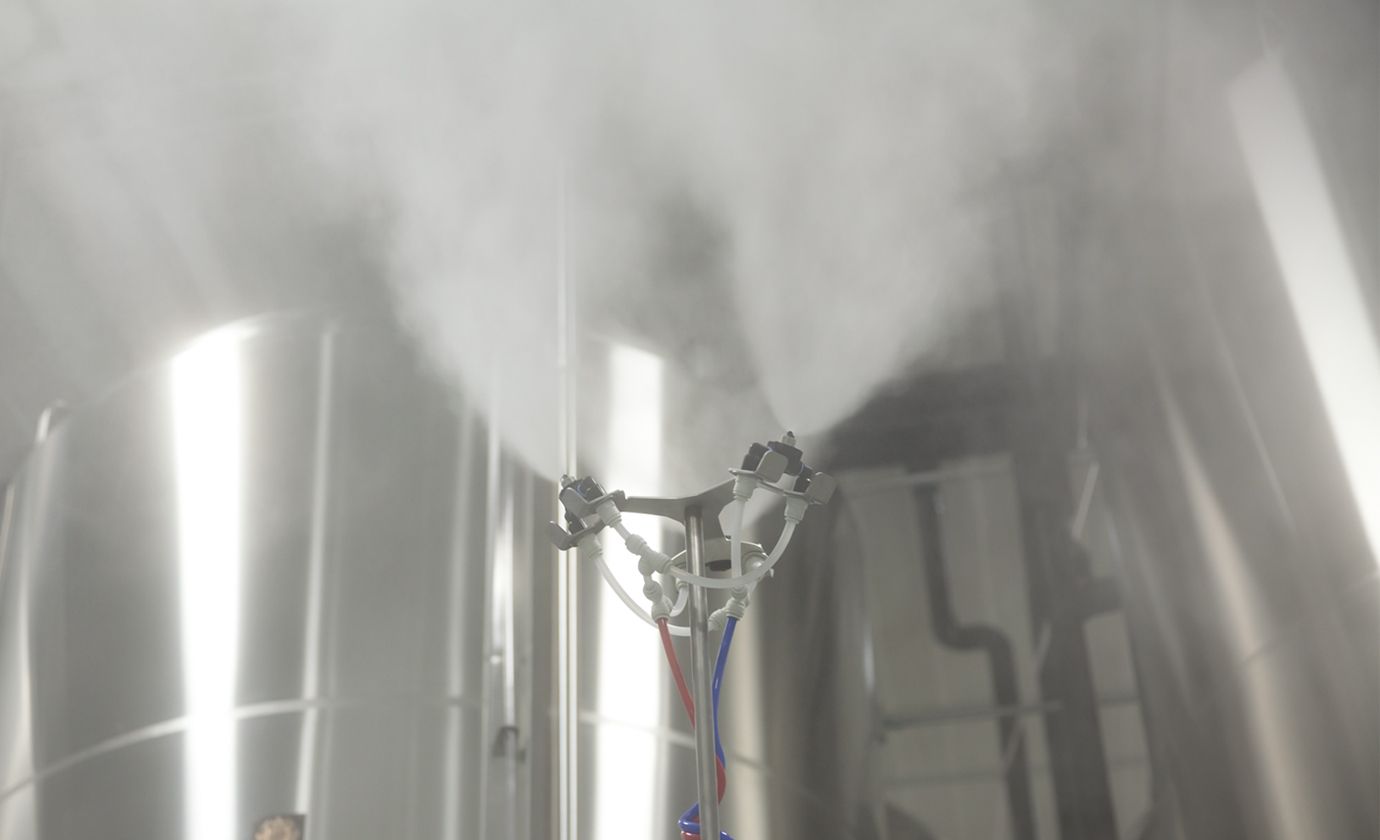

FOAMit Wall Mounted Mist System – image 2

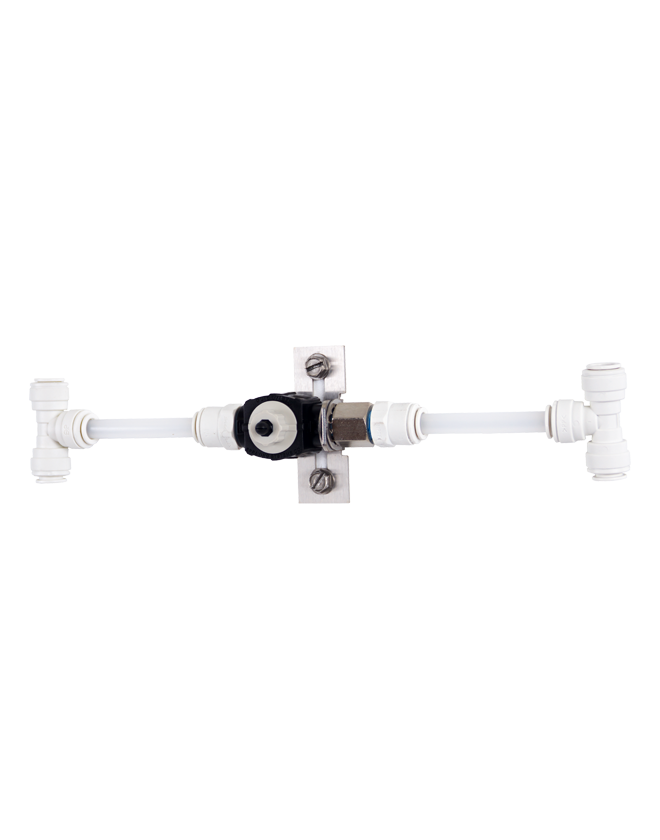

FOAMit Wall Mounted Mist System – image 3

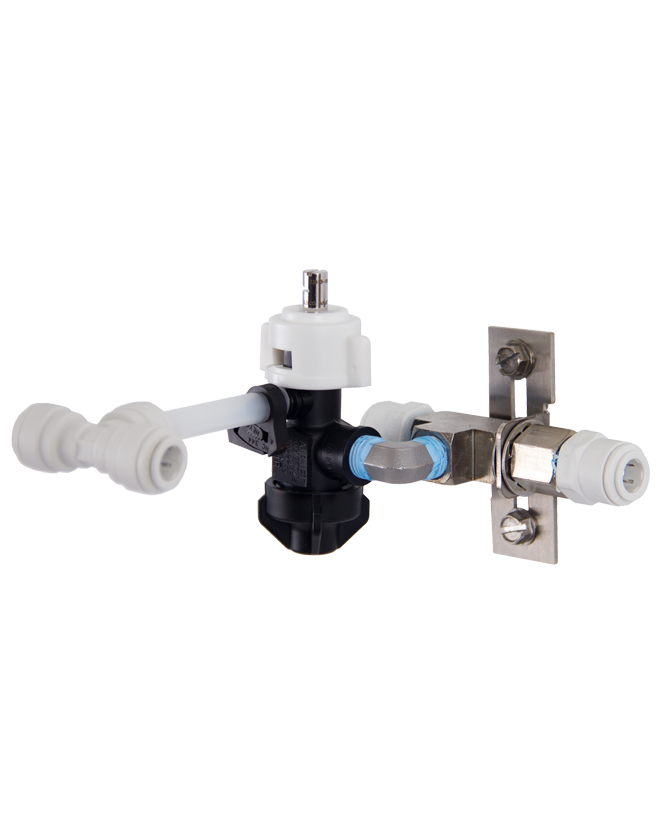

FOAMit Wall Mounted Mist System – image 4

FOAMit Wall Mounted Mist System

SKU MU-6
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit MU-6 is a wall-mounted mist system powered by compressed air and electricity. Its control box draws pre-mixed chemical solution and feeds a network of separately sold nozzle assemblies through 9.5mm (3/8") OD tubing, with up to 20 nozzles per control box depending on nozzle type.

A built-in delay-on-make single-shot timer dispenses chemical on schedule, and the quick-change pump can be swapped without tools.

Key features

  • Draws from pre-mixed solution – drop in the suction line and go
  • Powered by compressed air and electricity
  • Quick-change pump, no tools needed
  • Multifunction single-shot timer with delay on make
  • Scalable: 1–20 nozzles per control box depending on nozzle type
  • 15 micron droplets at 3.4 bar (50 psi) with NZA-PNZX1-WBRKT nozzles

Options

  • Pump seals: Santoprene (standard), Viton (MU-6V) or Kalrez (MU-6K)
  • Nozzle assemblies (sold separately): NZA-PNZX1-WBRKT or NZA-PNZX1-WBRKT-WTB-26

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Mist unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix

Technical information

Power: Compressed air and electricity

Chemical pickup: Pre-mixed solution

Products drawn: One

Flow rate: 0.23 l/min per NZA-PNZX1-WBRKT nozzle; 0.16 l/min per NZA-PNZX1-WBRKT-WTB-26 nozzle

Droplet size: 15 microns (NZA-PNZX1-WBRKT) or 35 microns (WTB-26) at 3.4 bar (50 psi)

Coverage: 1 litre of solution covers approx. 28.3m³ (1,000 cu ft)

Nozzles per control box: 1–20 (NZA-PNZX1-WBRKT) or 1–12 (WTB-26)

Timer: Multifunction, delay on make, single shot

Air supply: Factory set 3.4 bar (50 psi); 56.6 l/min (2 cfm) for control box plus 70.8 l/min (2.5 cfm) per NZA-PNZX1-WBRKT nozzle or 142 l/min (5 cfm) per WTB-26 nozzle; max. inlet 10.3 bar (150 psi)

Electrical supply: 120V AC, 60Hz, 2A (GFCI-protected outlet)

Liquid temperature: 4.4–37.8°C

Nozzles: Nozzle assemblies sold separately

Suction line: 2.4m (8ft), 9.5mm (3/8") ID

Tubing: 9.5mm (3/8") OD between control box and nozzles

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall mounted

Part number: MU-6

Supplied with: Control box, 60.9m (200ft) clear 9.5mm (3/8") OD tubing, mounting hardware, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
