FOAMit Twin-Line Pre-Mix Foam Unit

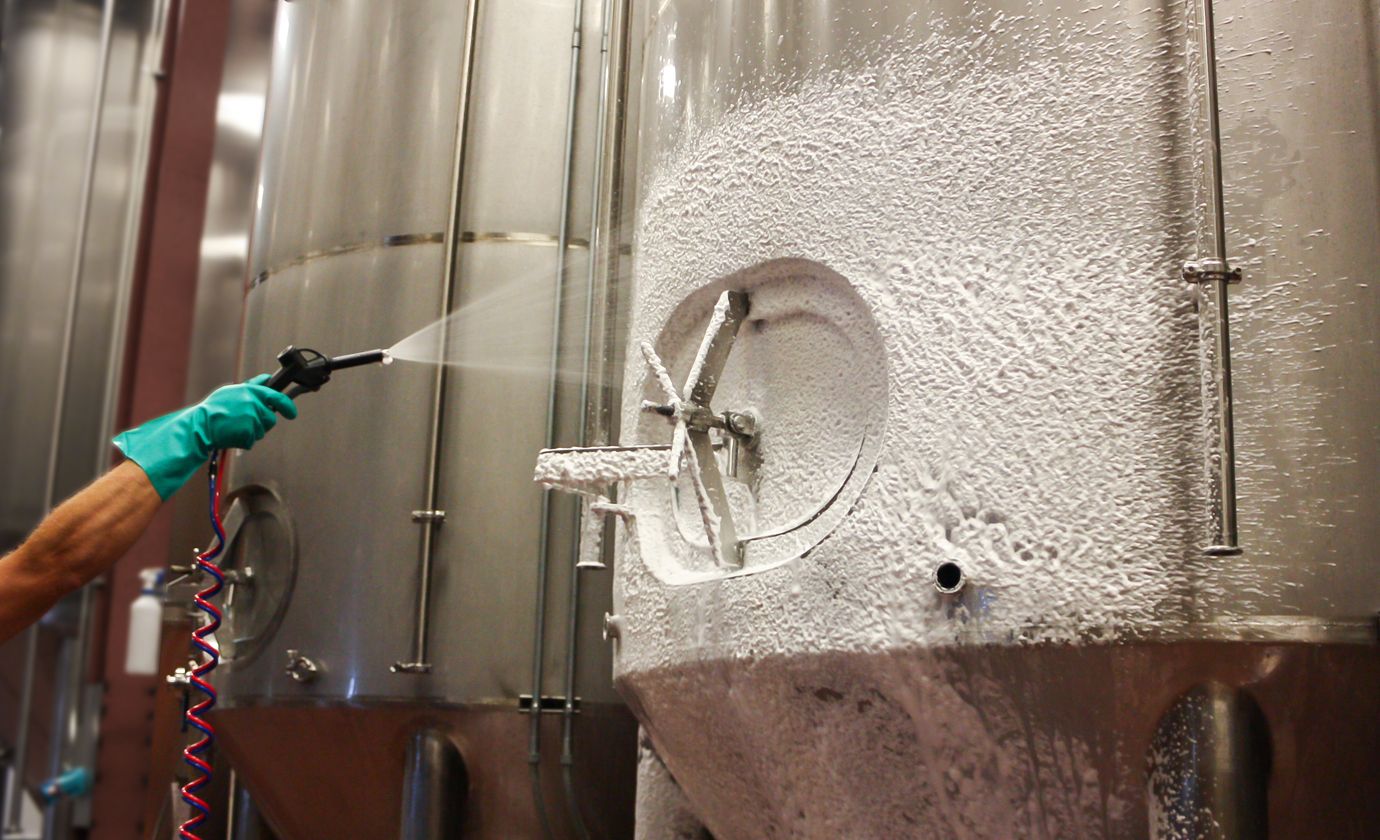

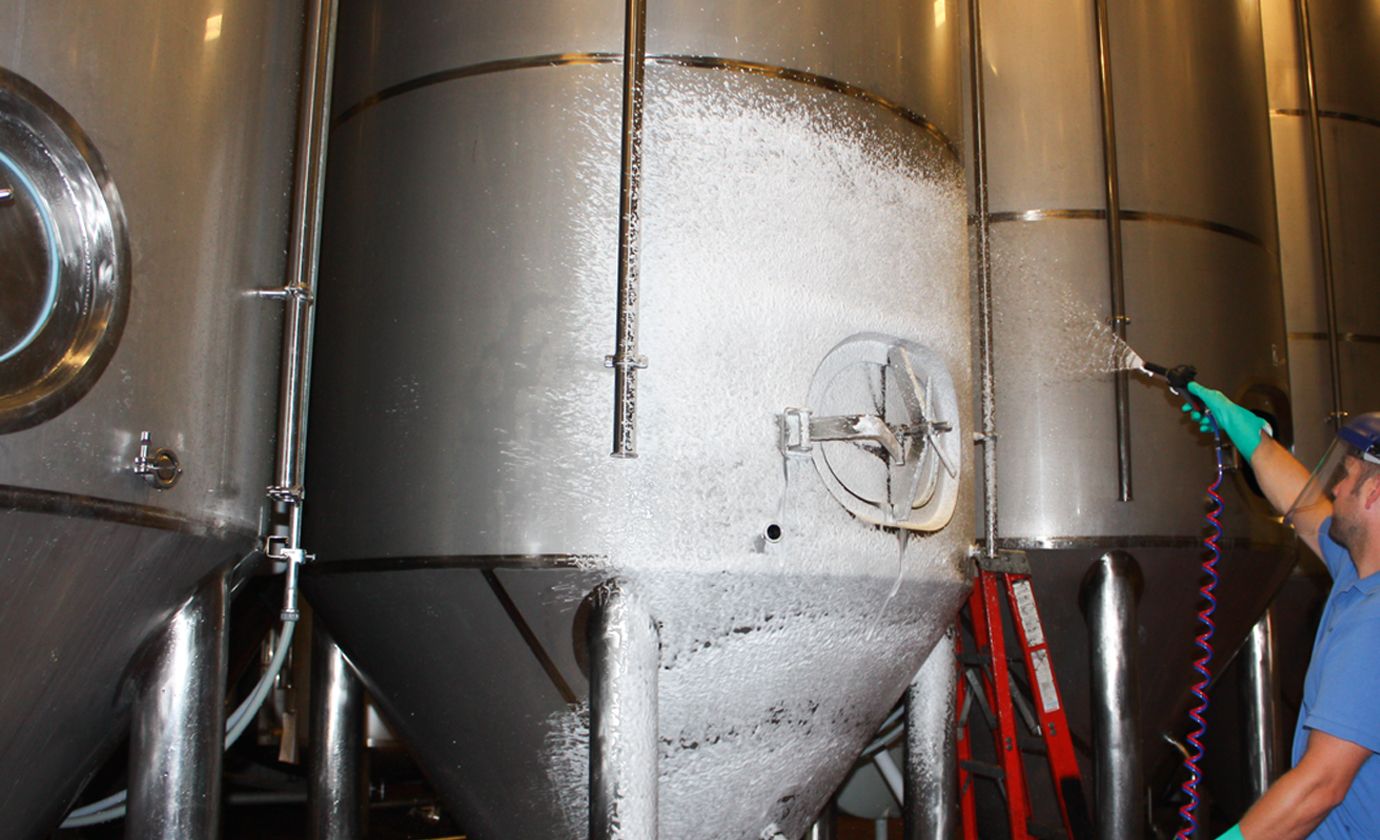

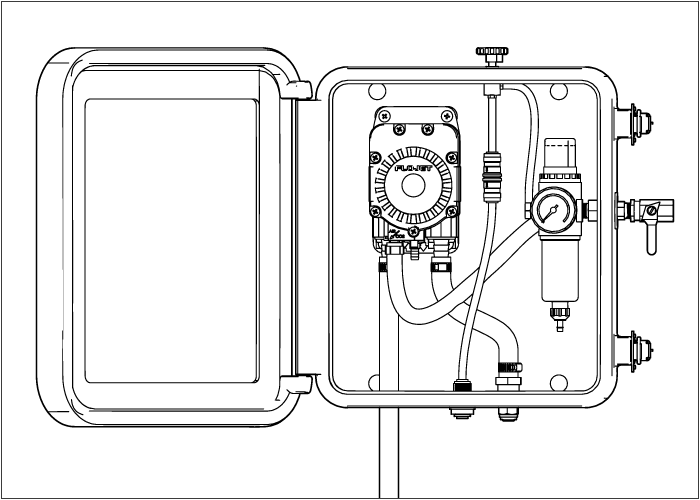

The FOAMit FI-WL-LVTL is a wall-mounted foam unit powered by compressed air. It draws pre-mixed solution and applies it as foam through 7.6m of coiled, bonded twin-line tubing and a heavy-duty polypropylene trigger gun with a 65° fan tip, producing 22.7 l/min of foam with a reach of 1.5–1.8m.
The coiled tubing is long, lightweight and tangle-free, and set-up is simply a case of dropping the suction line into the pre-mixed solution.
For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.
Power: Compressed air
Chemical pickup: Pre-mixed solution
Products drawn: One
Output: 22.7 l/min of foam
Flow rate: 3.8 l/min
Reach: 1.5–1.8m
Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)
Liquid temperature: 4.4–37.8°C
Discharge hose: 7.6m (25ft) coiled, bonded twin-line tubing, 6.4mm (1/4") ID

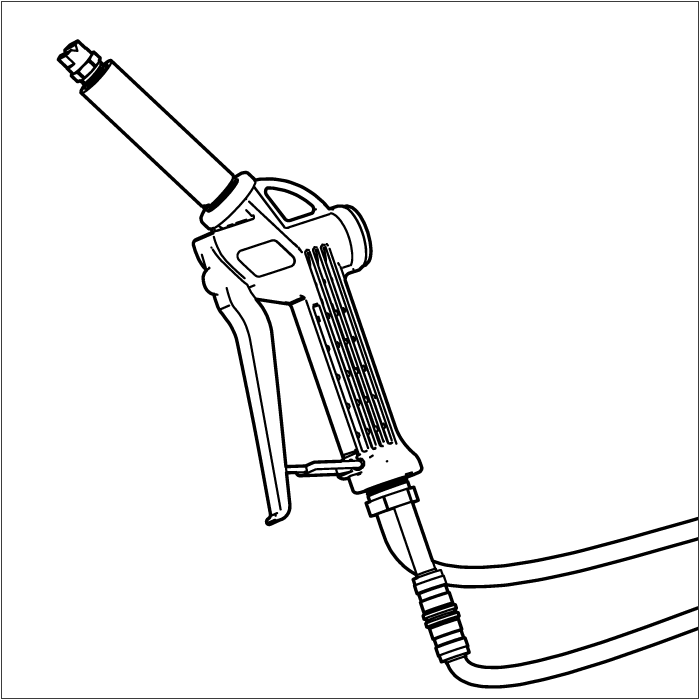

Wand: Polypropylene trigger gun, 65° fan tip
Suction line: 2.4m (8ft), 9.5mm (3/8") OD
Pump seals: Santoprene, Viton or Kalrez
Mounting: Wall mounted
Part number: FI-WL-LVTL
Supplied with: Foam unit, discharge hose with wand, mounting hardware, user manual
Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
