FOAMit Pre-Mix Electric Mist Unit
FOAMit Pre-Mix Electric Mist Unit – product image

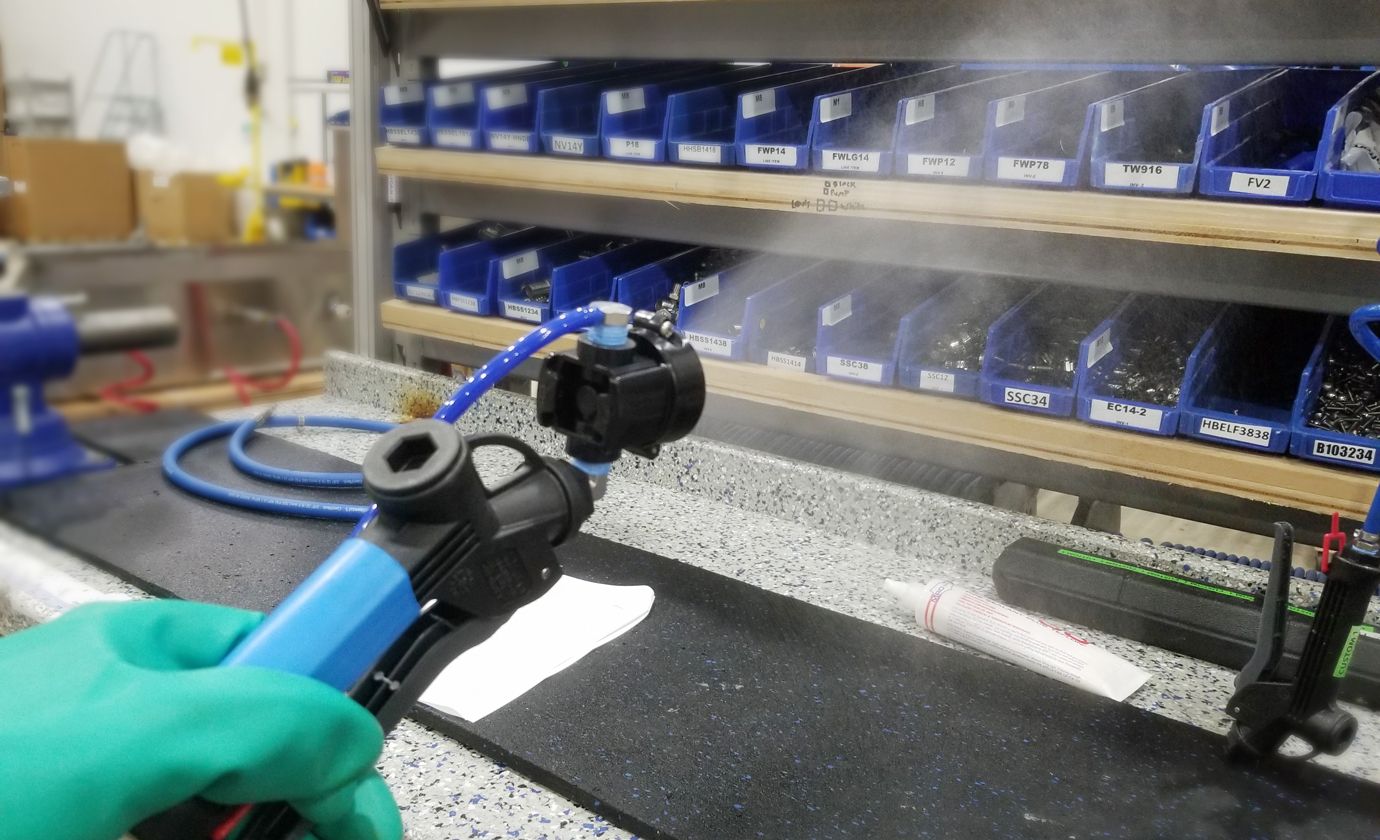

FOAMit Pre-Mix Electric Mist Unit – image 2

FOAMit Pre-Mix Electric Mist Unit

SKU MU-JR-PSGN130-H50
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit MU-JR-PSGN130-H50 is a pre-mix mist unit with a built-in 1.5 hp electric air compressor, so it can mist where compressed air is not available. It draws pre-mixed solution and applies it through a handheld wand on 15.2m (50ft) of lightweight twin-line tubing, producing a 15-micron droplet at 3.4 bar.

The unit is compact and portable, plugging into a 120 V AC supply.

Key features

  • Built-in 1.5 hp air compressor, no compressed air supply needed
  • Powered by 120 V AC mains electricity
  • Draws from pre-mixed solution
  • Handheld wand with 15.2m (50ft) lightweight, tangle-free twin-line tubing
  • 15-micron droplet size at 3.4 bar (50 psi)
  • Compact size for portability

Options

  • Pump seals: Santoprene (standard), Viton (MU-JRV-PSGN130-H50) or Kalrez (MU-JRK-PSGN130-H50)
  • Hose length: 15.2m/50ft (PSGN130-H50), 30.5m/100ft (PSGN130-H100) or 45.7m/150ft (PSGN130-H150)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Mist unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Electric
Chemical Pickup
Pre-mix

Technical information

Power: Electricity, built-in 1.5 hp air compressor

Chemical pickup: Pre-mixed solution

Products drawn: One

Flow rate: Approx. 265 ml/min (8.96 US fl oz/min) at 3.4 bar, static

Reach: 0.9–1.5m (3–5ft)

Droplet size: 15 microns at 3.4 bar (50 psi)

Coverage: 1 litre of solution covers approx. 28.3m³ (1,000 cu ft)

Operating air pressure: 3.4–5.5 bar (50–80 psi)

Electrical supply: 120 V AC, 60 Hz, 8.5 A (GFCI-protected outlet)

Liquid temperature: 4.4–37.8°C

Discharge hose: 15.2m (50ft) twin-line tubing, 6.4mm (1/4") OD

Wand: Polypropylene trigger handle, polypropylene mist nozzle with Kynar tip

Nozzles: 1 × pneumatic mist nozzle

Suction line: 1.8m (6ft) clear hose, 6.4mm (1/4") ID

Pump seals: Santoprene, Viton or Kalrez

Part number: MU-JR-PSGN130-H50

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
