FOAMit High Concentration Foam Unit with All-Poly Fittings

SKU FI-WC-11-AP
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit FI-WC-11-AP is a wall-mounted high-concentration foam unit powered by compressed air, with all-poly fluid fittings resistant to many acid products. It draws concentrated product and dilutes it with mains water at 1:1 to 16:1, applying foam through a 15.2m hose and 813mm polypropylene wand with a reach of 4.6–6.1m.

It regulates incoming water pressure, so foam quality and dilution stay consistent regardless of fluctuations in facility water pressure.

Key features

  • Draws from concentrated product
  • Dilutes at 1:1 to 16:1 (water:chemical)
  • Regulates incoming water pressure for consistent foam quality and dilution
  • All-poly fluid fittings, resistant to many acid products
  • 813mm (32") polypropylene wand
  • Quick-change pump

Options

  • Pump seals: Santoprene (standard), Viton or Kalrez
  • Colour-coded discharge hose (4 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Foam unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Concentrate

Technical information

Power: Compressed air

Chemical pickup: Concentrated product

Products drawn: One

Output: 75.7 l/min of foam

Flow rate: 6.1 l/min

Reach: 4.6–6.1m

Dilution ratio: 1:1 to 16:1 (water:chemical)

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Water pressure: 0.7–6.9 bar (10–100 psi), backflow prevention required

Liquid temperature: 4.4–37.8°C

Discharge hose: 15.2m (50ft), 19mm (3/4") ID

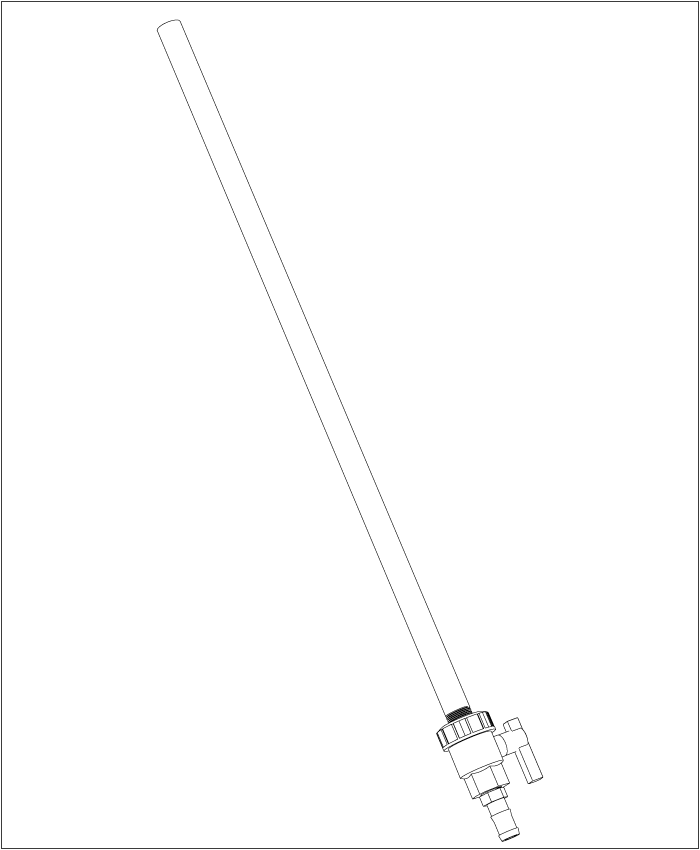

Wand: 813mm (32") polypropylene, zero-degree tip, polypropylene ball valve

Suction line: 2.4m (8ft) clear braided hose, 12.7mm (1/2") ID

Pump seals: Santoprene, Viton or Kalrez

Fittings: All-poly

Mounting: Wall mounted

Part number: FI-WC-11-AP

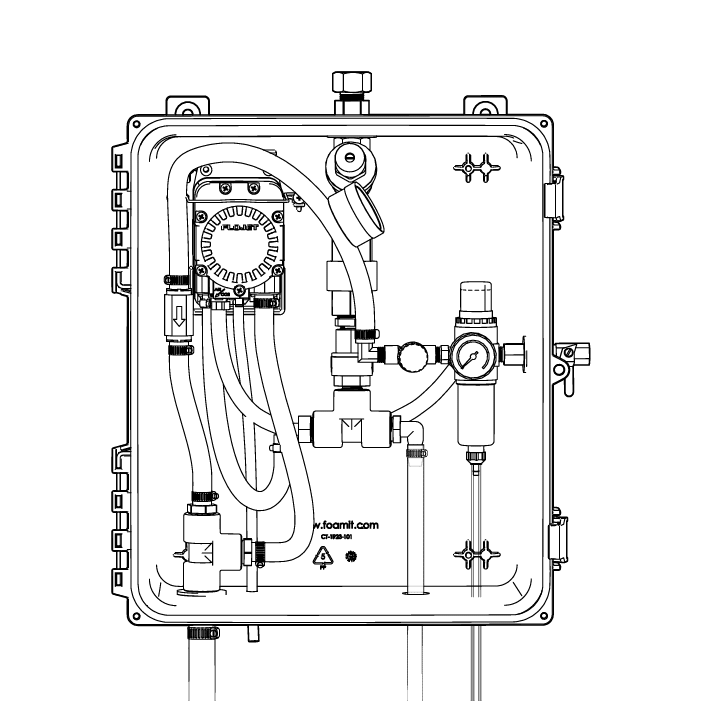

Supplied with: Control box assembly, discharge hose and wand, mounting hardware, stainless steel hose rack, metering tip kit for foam injector, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
