FOAMit Flooded Suction Tank
FOAMit Flooded Suction Tank – product image
FOAMit Flooded Suction Tank – image 2
FOAMit Flooded Suction Tank – image 3
FOAMit Flooded Suction Tank – image 4
FOAMit Flooded Suction Tank – image 5

FOAMit Flooded Suction Tank

SKU FST
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit FST is a wall-mounted flooded suction tank that gives metering pumps a consistent head pressure, preventing loss of prime and keeping dosing accurate. It is powered by compressed air and electricity, holds 13.2 litres and fills at up to 9.5 l/min from a bulk container of concentrated, pre-mixed or ready-to-use product.

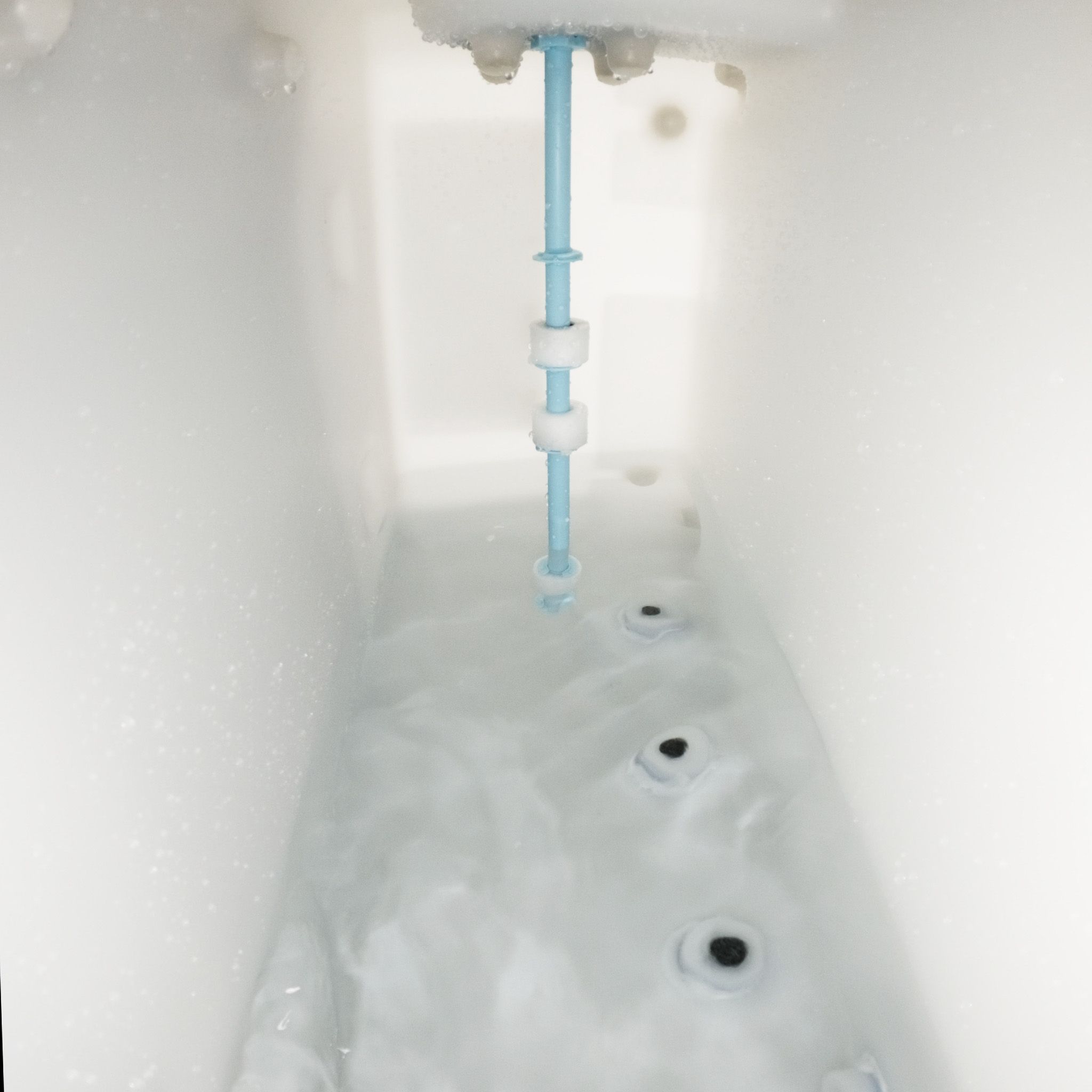

A three-stage float switch monitors high and low chemical levels, with onboard LED status indicators and a remote flashing light to show when attention is needed.

Key features

  • Provides consistent head pressure for metering pumps, preventing loss of prime
  • Pulls from a bulk container, extending metering pump life
  • Three-stage float switch with low-level and high-level monitoring

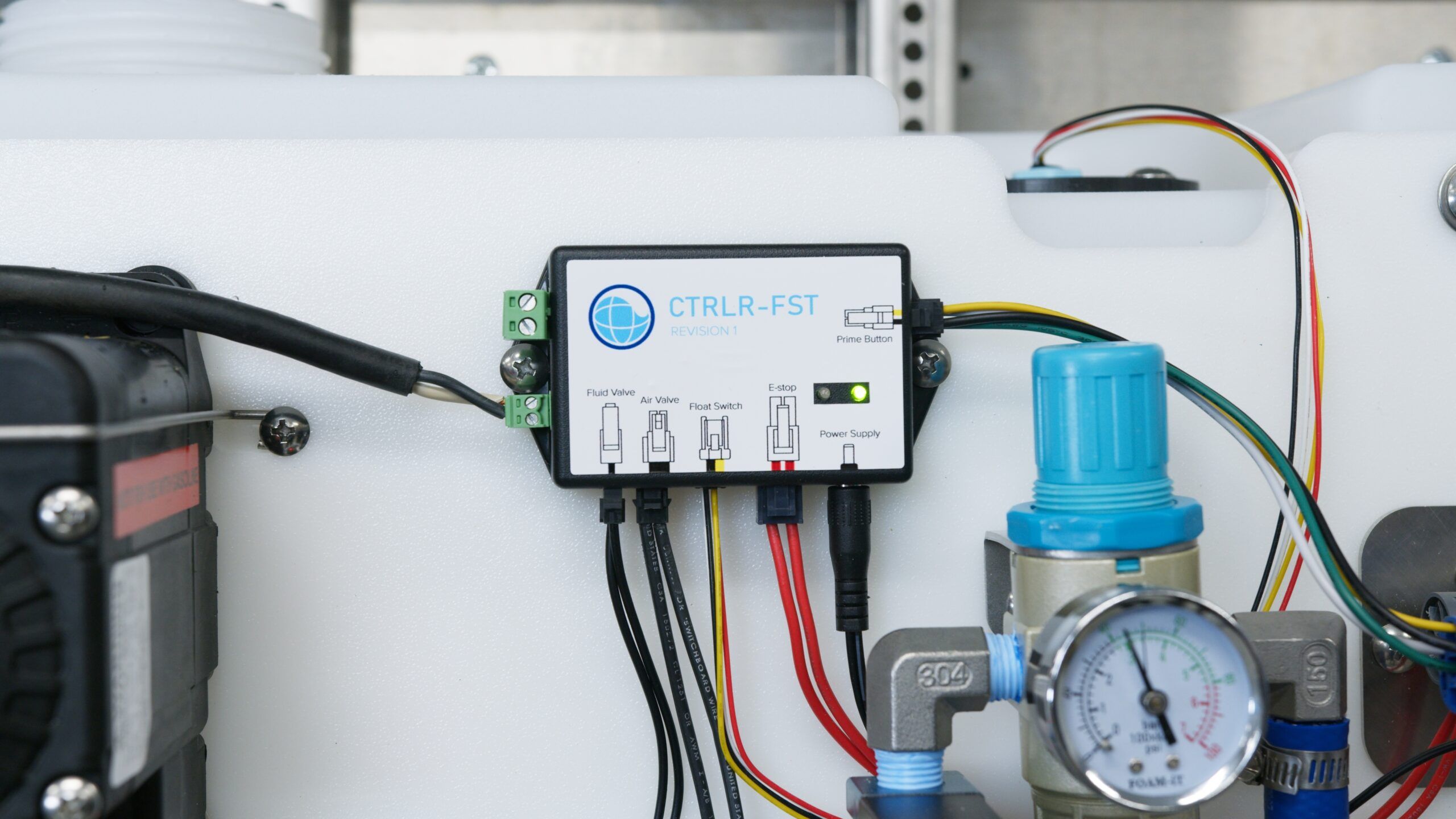

  • LED status indicators on the control board
  • Connections for a remote flashing light (light included)
  • Contacts for integration with external monitoring software

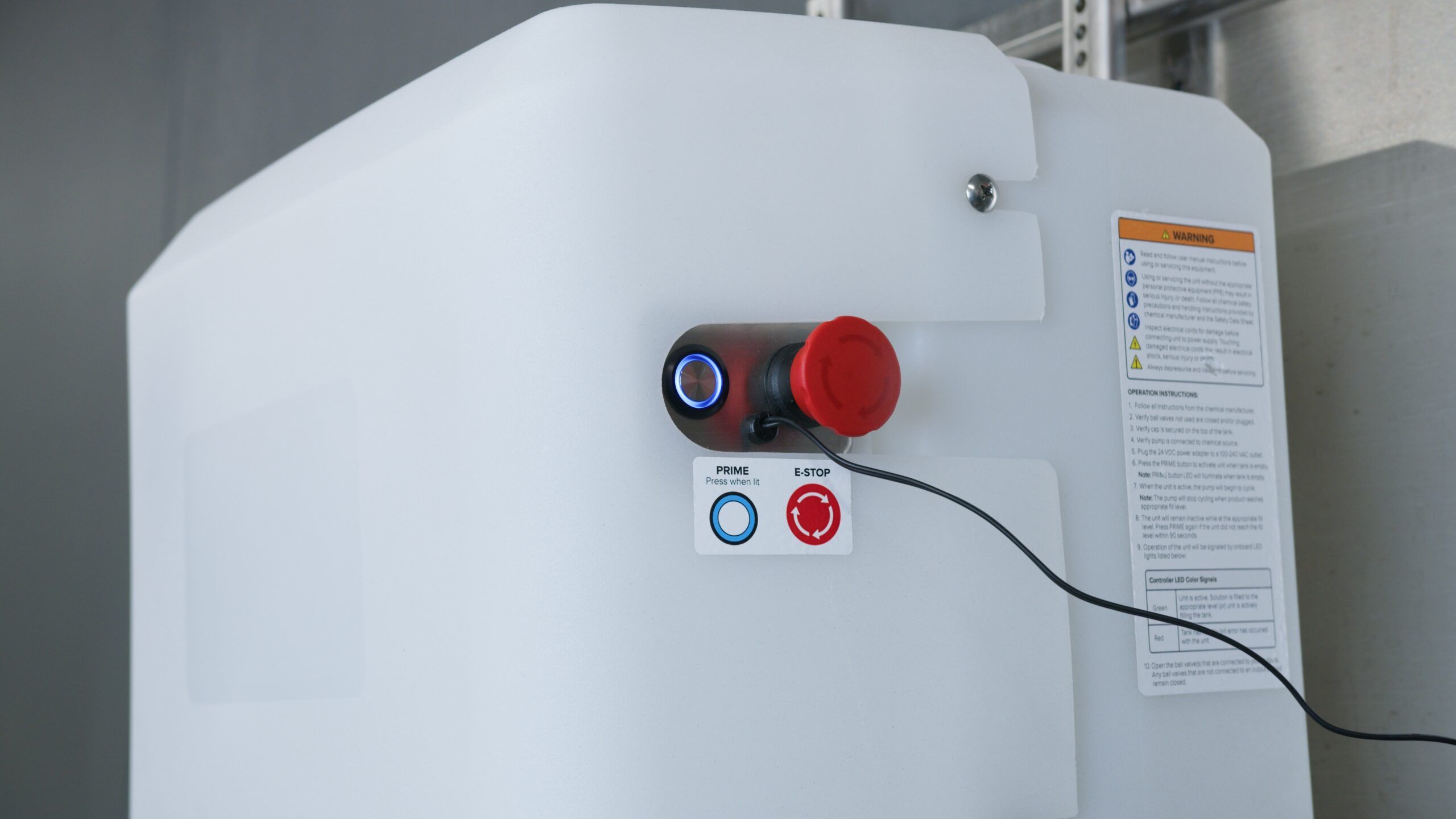

  • E-stop and safety shut-off features
  • Chemically resistant air-operated valve

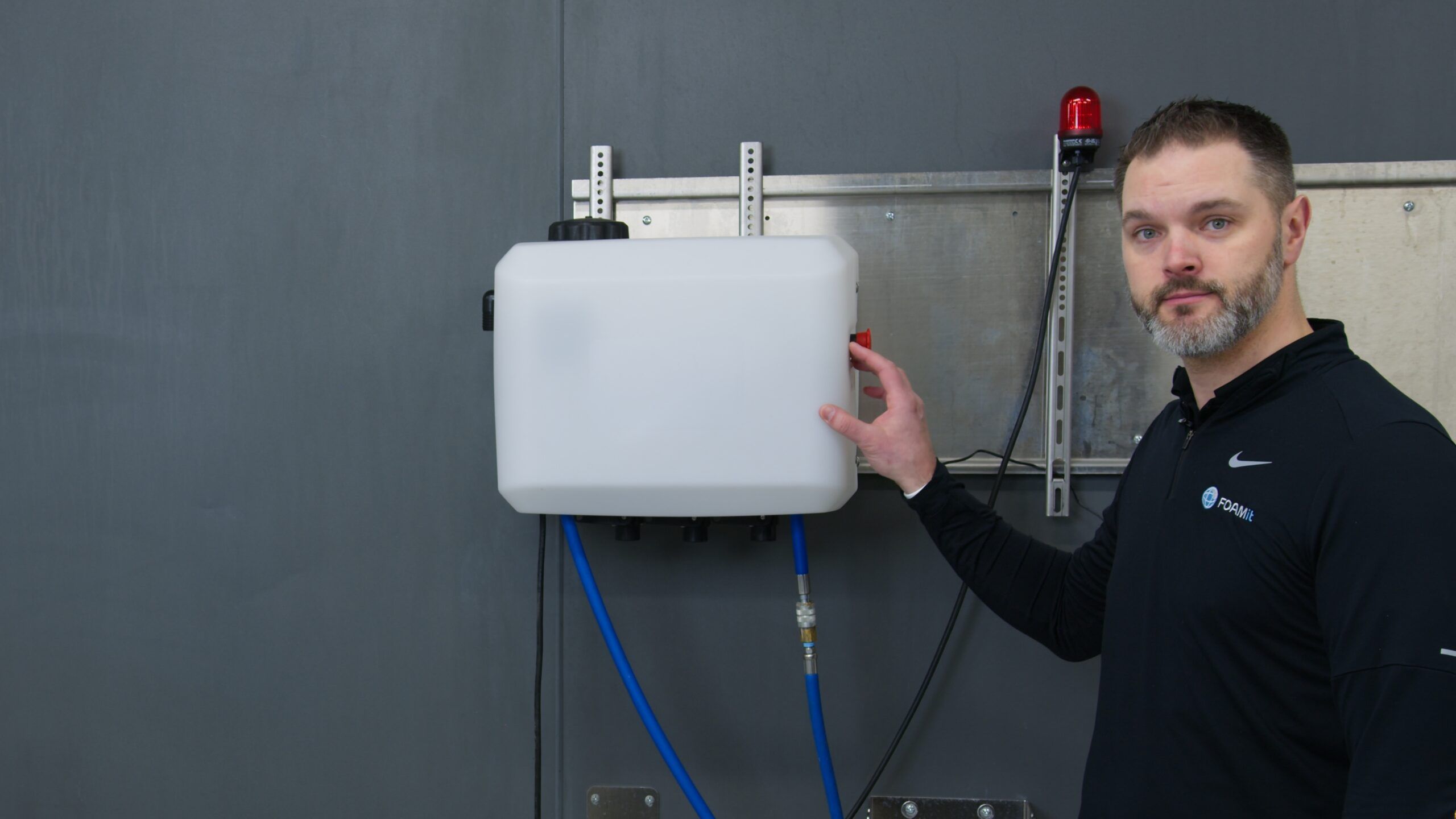

  • Wall mounted

Options

  • Santoprene pump seals with EPDM valve seals (FST-E)
  • Viton pump seals with Viton valve seals (FSTV-V)
  • Kalrez pump seals with PTFE valve seals (FSTK-T)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Unit Type
Chemical management
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix or concentrate
Tank Capacity
13.2 litres

Technical information

Capacity: 13.2 litres

Power: Compressed air and electricity

Chemical pickup: Concentrated, pre-mixed or ready-to-use product

Products drawn: One

Fill rate: Up to 9.5 l/min

Air supply: 4.1–5.5 bar (60–80 psi), 141.6–283.2 l/min (5–10 cfm)

Electrical supply: 100–240V AC, 60Hz, 1A

Operating voltage: 24V DC, power supply included

Relay terminals: Rated 8A 250V AC / 8A 30V DC

Liquid temperature: 4.4–37.8°C

Discharge valve: Polypropylene ball valve with Viton seals

Pump seals: Santoprene, Viton or Kalrez

Air-operated valve seals: EPDM, Viton or PTFE (Teflon)

Mounting: Wall mounted

Part number: FST

Supplied with: Complete unit, remote flashing light, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
