FOAMit EZBlend Foam Unit

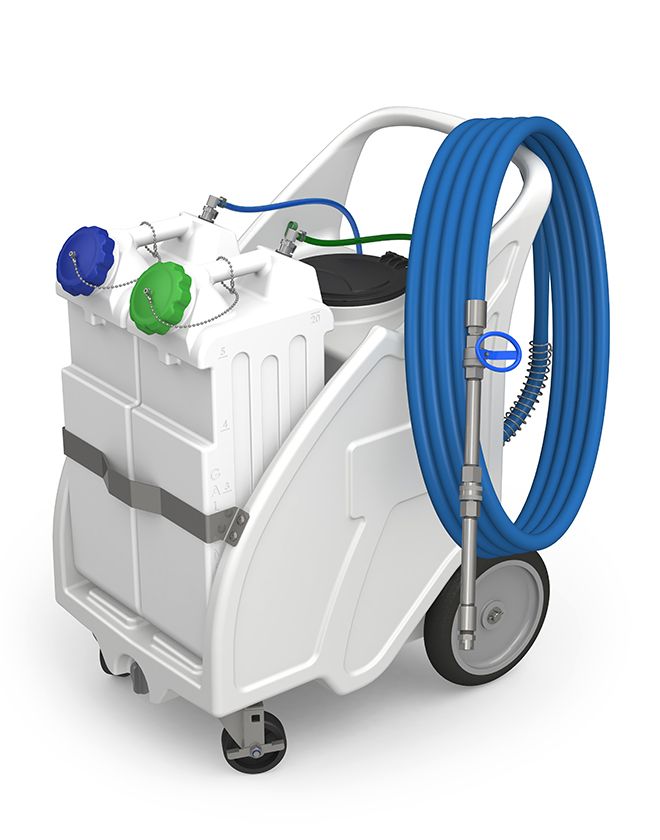

FOAMit EZBlend Foam Unit – product image

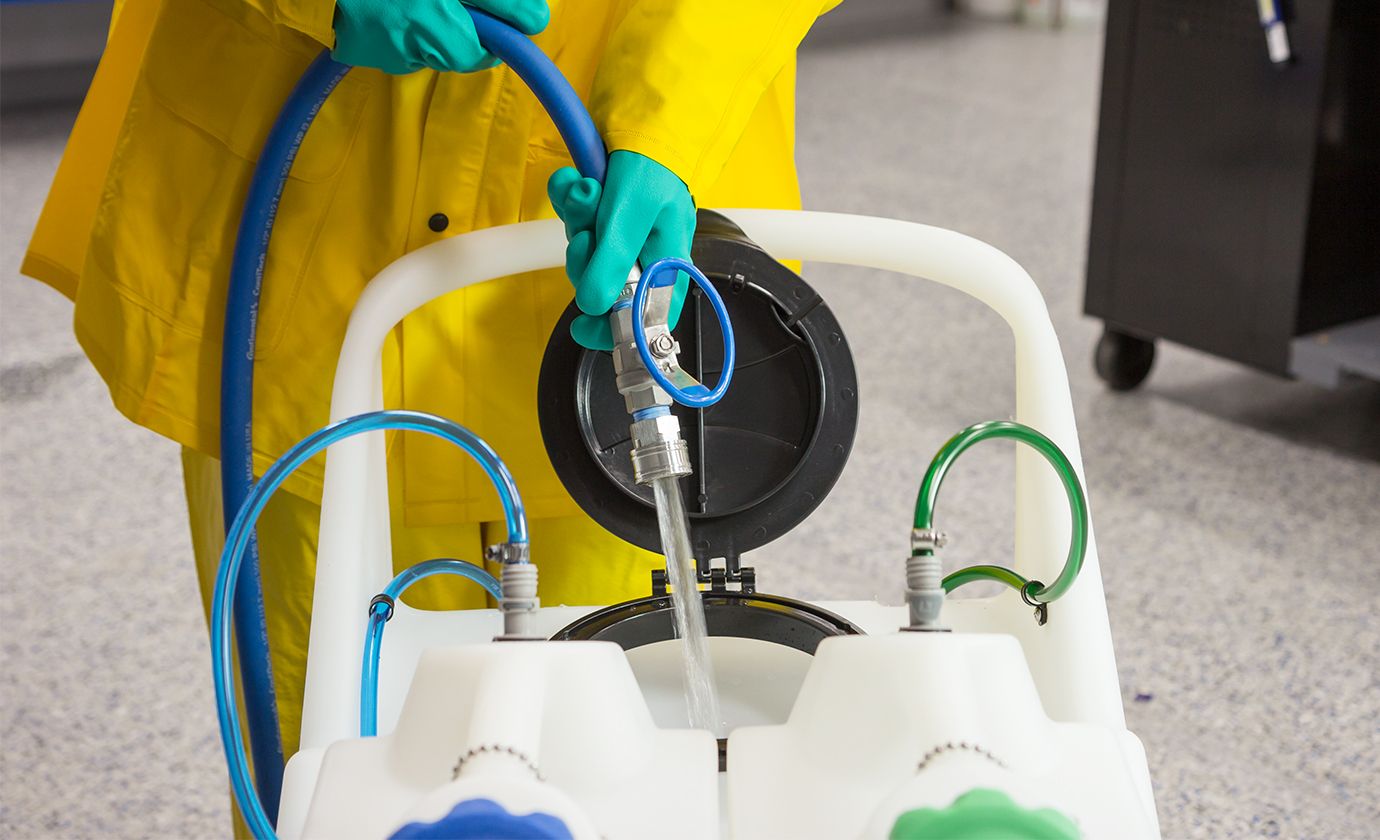

FOAMit EZBlend Foam Unit – image 2

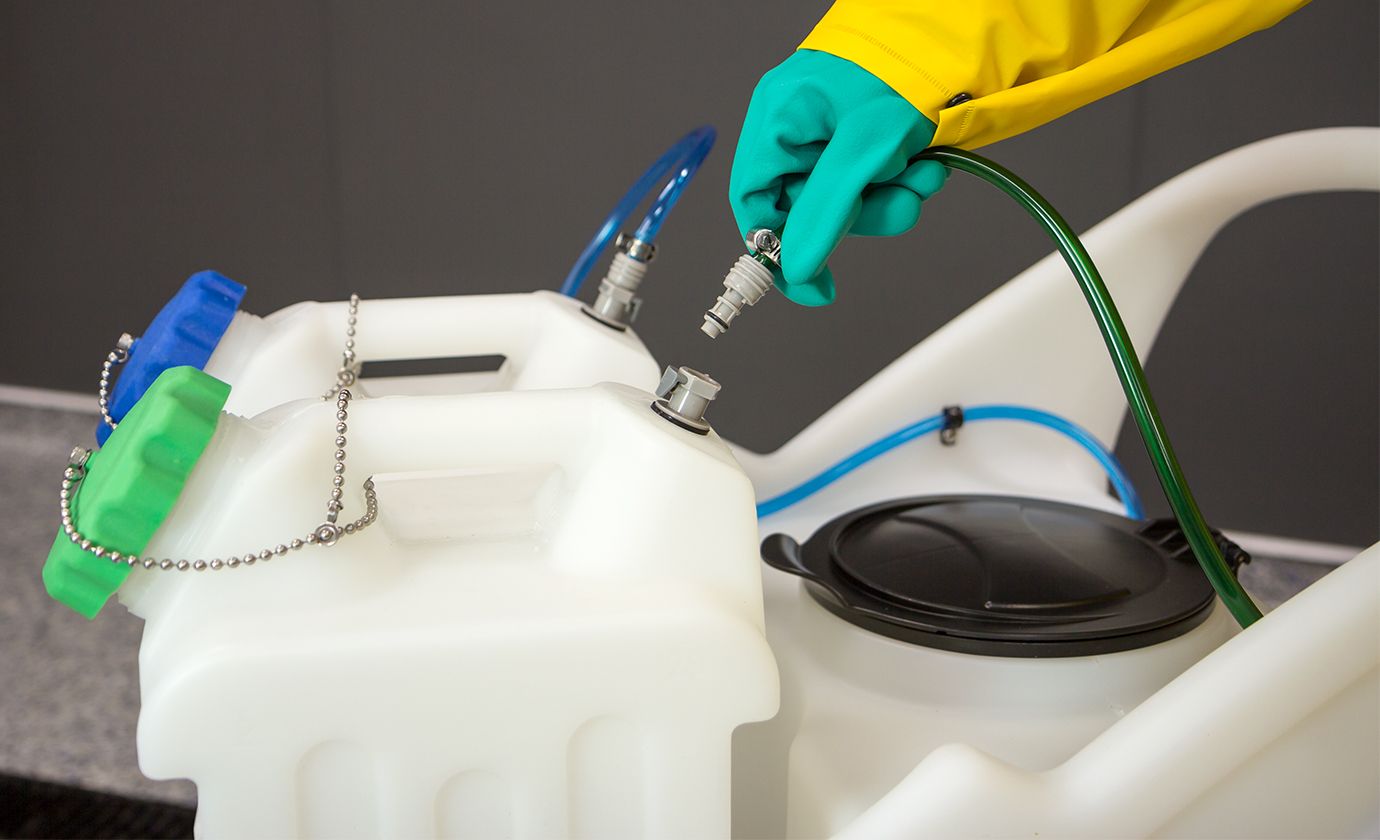

FOAMit EZBlend Foam Unit – image 3

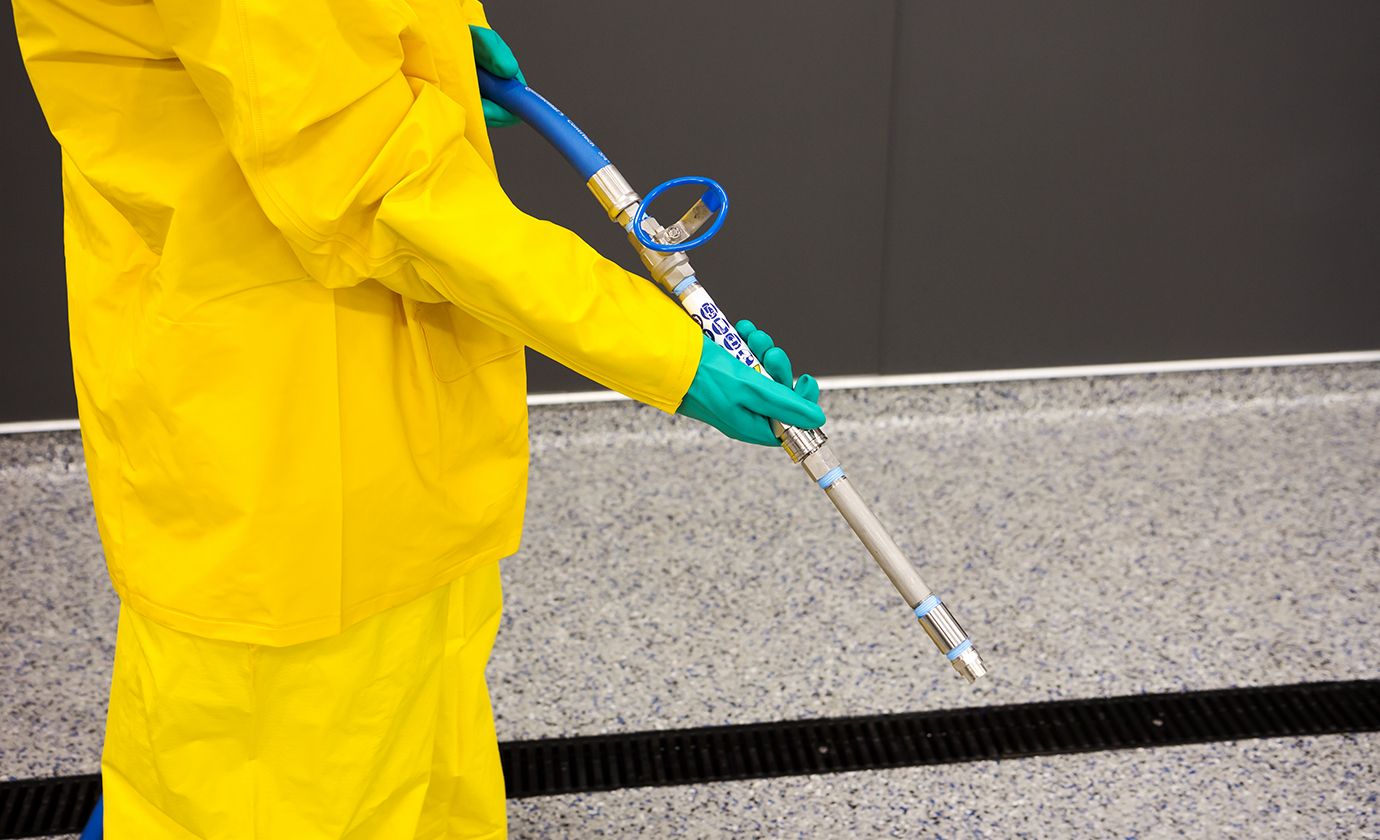

FOAMit EZBlend Foam Unit – image 4

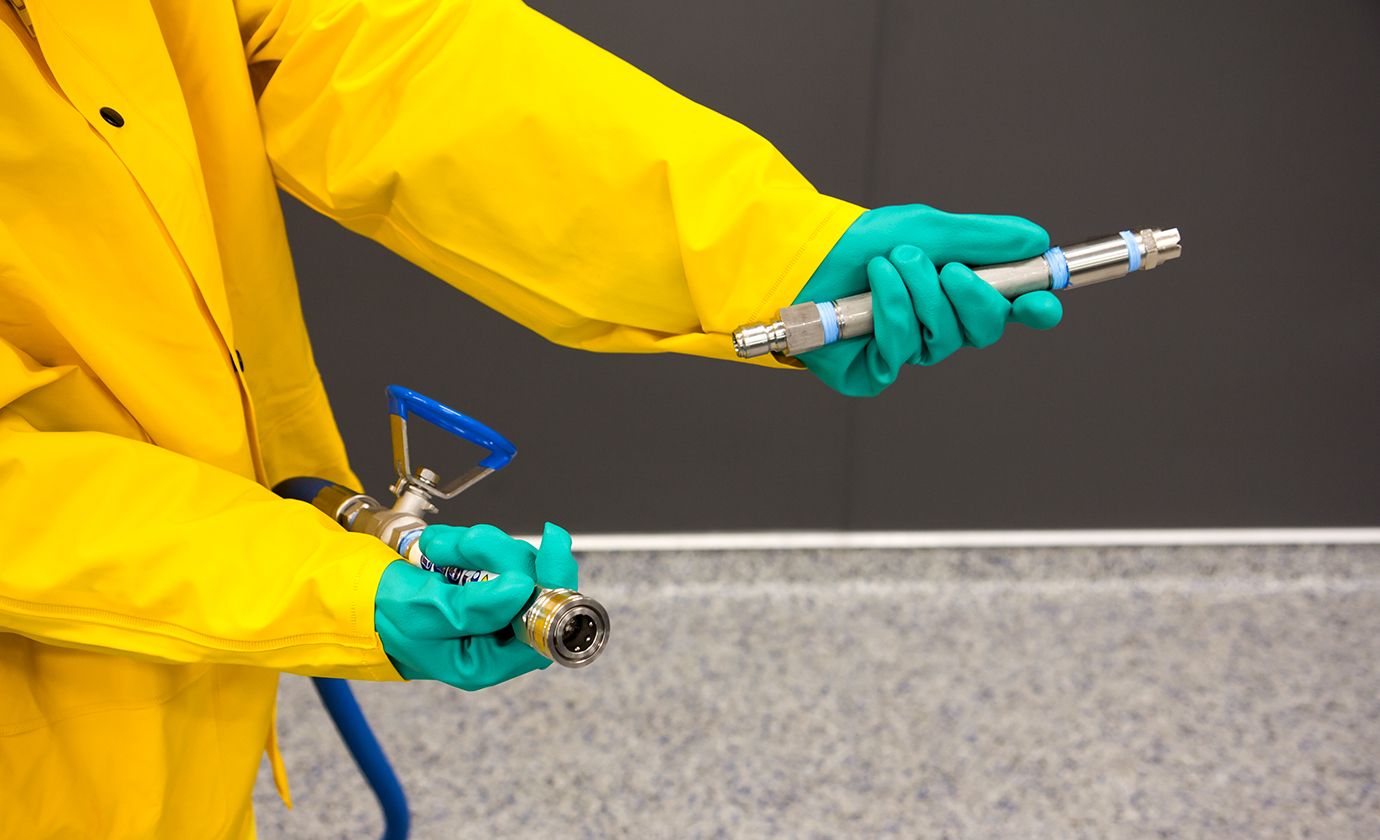

FOAMit EZBlend Foam Unit – image 5
FOAMit EZBlend Foam Unit – image 6

FOAMit EZBlend Foam Unit

SKU FI-EZB-15NV
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit FI-EZB-15NV EZBlend foam unit is part of the Sterilex EZBlend system. Powered by compressed air, it draws two concentrated Sterilex products simultaneously and dilutes them on the fly with water from a 56.8 litre on-board tank, so there is no pre-mixing and no wasted solution.

It is pre-set to the Sterilex labelled rate of 1:1:10 to 1:1:8 and applies foam through a 9m hose and 305mm stainless steel fan-tip wand. Two 18.9 litre jugs of concentrate make 170–189 litres of solution, so refills are less frequent.

Key features

  • Pre-set to dilute Sterilex products at the labelled rate of 1:1:10 to 1:1:8, with no setup required
  • No pre-mixing: only activates what you use, as you use it
  • Supplied with two 18.9 litre chemical jugs with quick-connect suction fittings
  • Colour coding on jugs and unit matches Sterilex solutions 1 and 2
  • Fan-tip foam wand for efficient coverage of food contact and environmental surfaces
  • Quick-connect wand interchanges with optional FOAMit drain foaming attachments
  • Hinged back plate for tool-free access, and quick-change pump
  • Translucent tank and jugs show fill levels
  • Anti-kink hose protection, integrated hose wraps, front-facing drain and in-line strainer
  • Designed for use with the EZBlend chemical transfer unit

Options

  • Colour-coded hinged lid (9 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Foam unit
Pump Seals
Viton
Power Source
Air Operated
Chemical Pickup
Concentrate
Tank Capacity
56.8 litres

Technical information

Capacity: 56.8 litres water; up to 37.9 litres concentrate

Power: Compressed air

Chemical pickup: Concentrated product

Products drawn: Two, simultaneously

Output: 56.8–75.7 l/min of foam

Flow rate: 7.6 l/min

Reach: 3–3.7m

Dilution: 378.5–473.2 ml : 378.5–473.2 ml : 3.8 litres (chemical A : chemical B : water)

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Liquid temperature: 4.4–37.8°C

Discharge hose: 9m (30ft), 19mm (3/4") ID

Wand: 305mm stainless steel, ball valve, 65° fan tip, stainless quick connects

Suction line: 2 × 1.2m (4ft) transparent lines (blue and green), 6.4mm (1/4") ID, quick-disconnect jug fittings

Pump seals: Viton

Wheels: 2 × 254mm non-marking wheels, 2 × 127mm casters (one locking)

Part number: FI-EZB-15NV

Supplied with: Complete foam unit with discharge hose and wand, 2 × 18.9 litre chemical jugs with caps and suction fittings, user manual

Chemical compatibility: This unit is configured specifically for use with Sterilex liquid products.
