FOAMit Drum Rinse System

SKU DRS
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

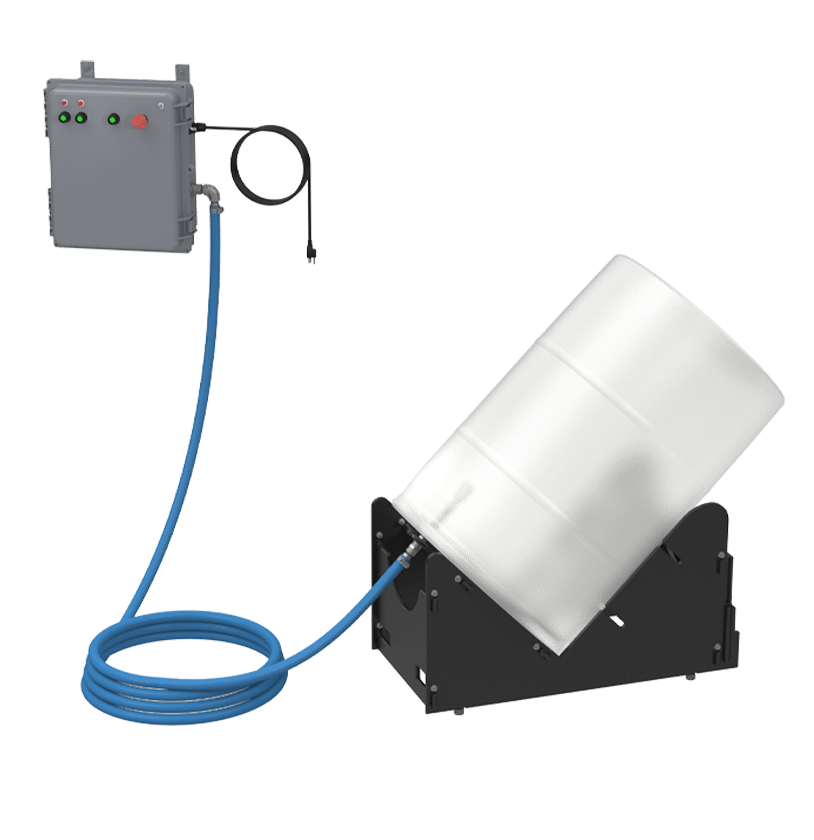

The FOAMit DRS is a water- and electrically-powered triple rinse system for 15, 30 and 55 US gallon (56.8, 113.6 and 208.2 litre) drums. A PLC runs light (30-second) or heavy (60-second) rinse options, each cycling three times through a stainless steel spinner nozzle.

Operation is push-button with no timer programming, and the system is designed to use less water and make drums easier to reuse or recycle.

Key features

  • Reduces water consumption by over 50%

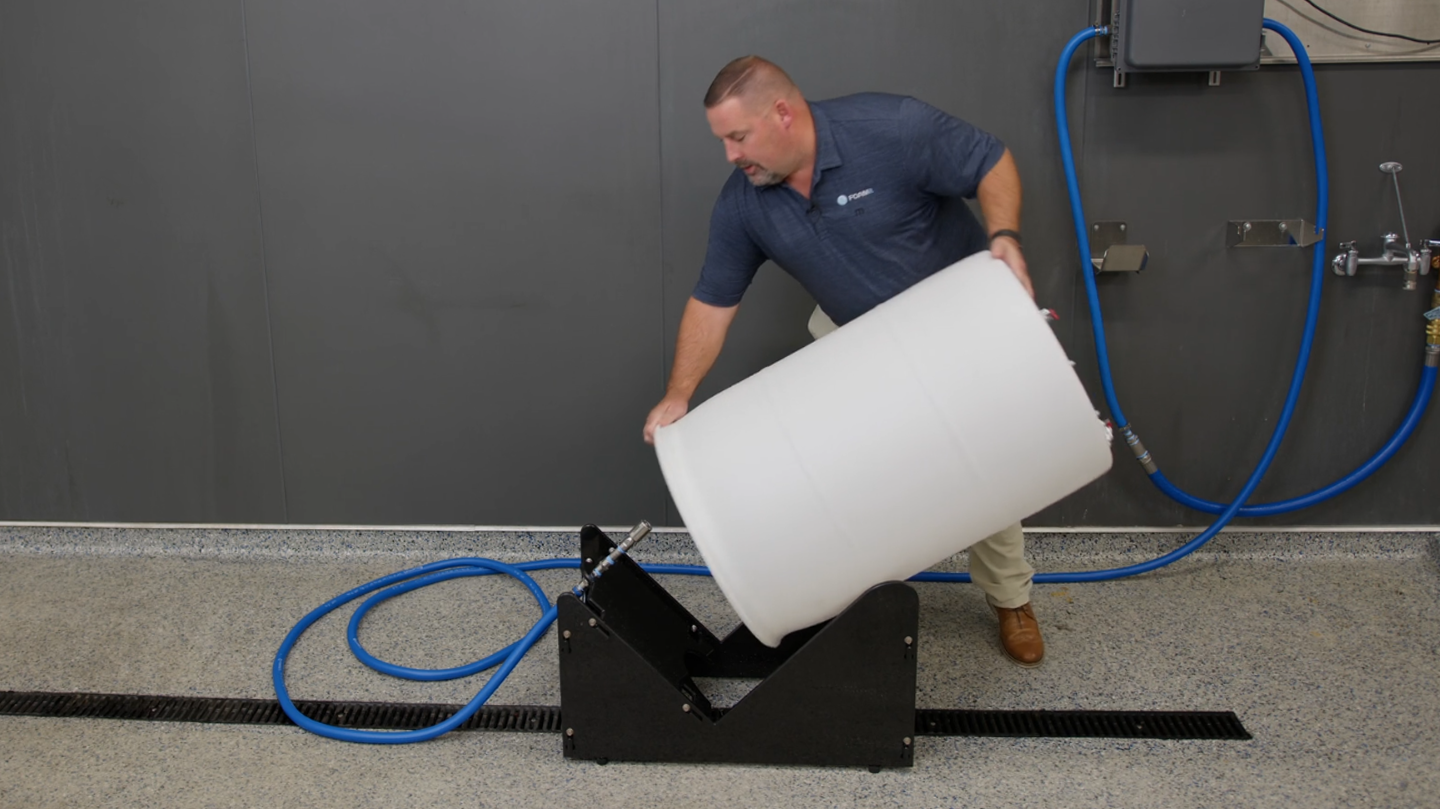

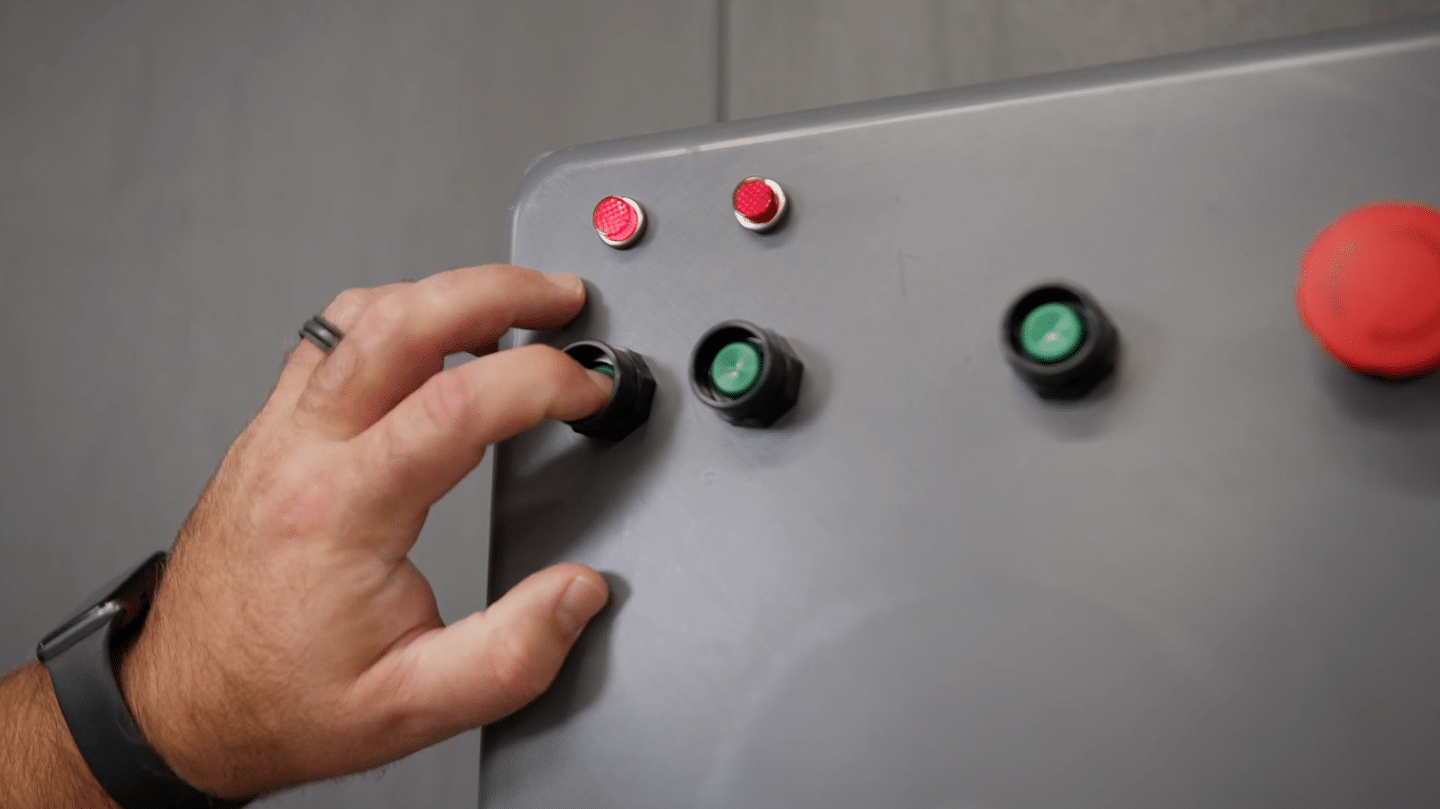

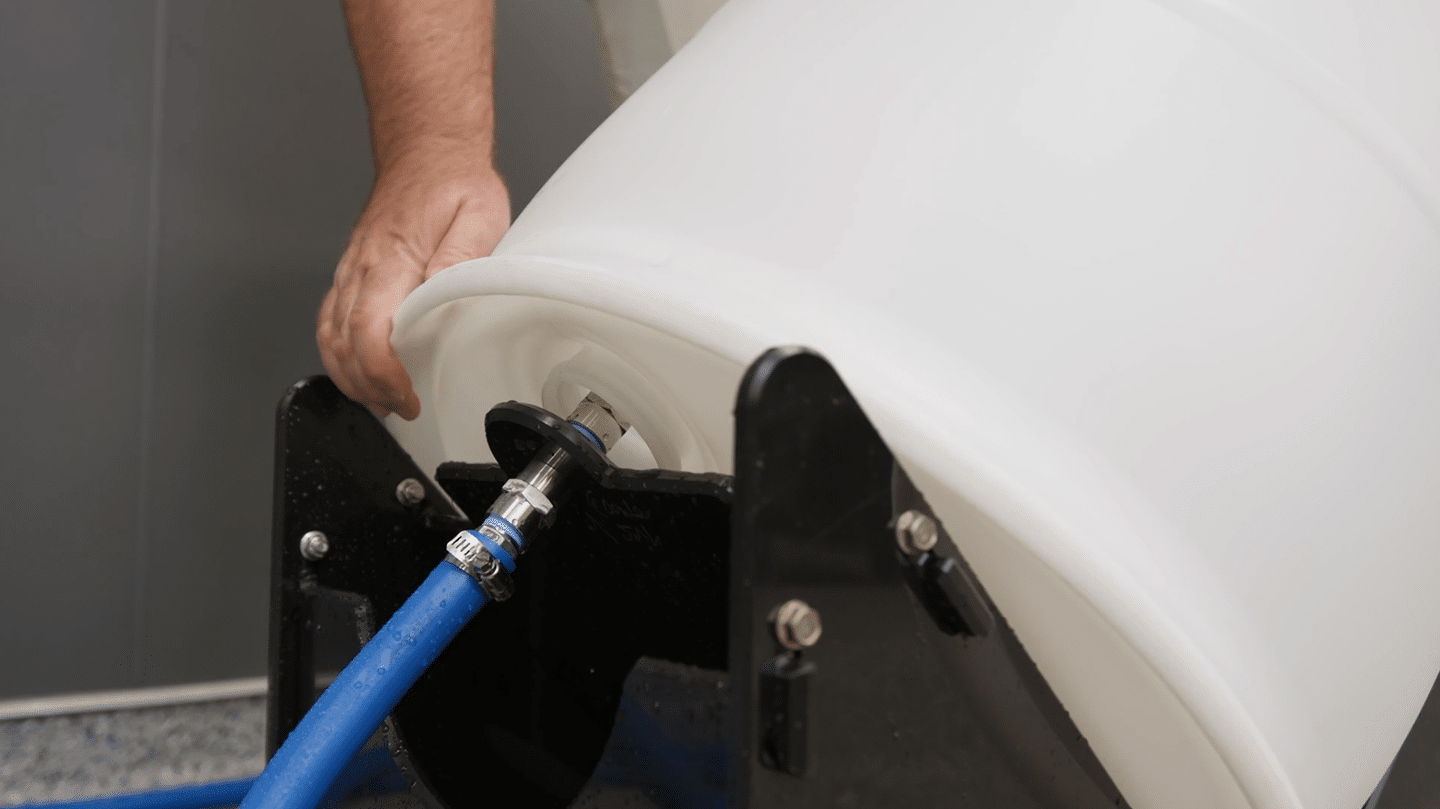

  • Push-button operation: load a drum, choose a cycle, remove the rinsed drum
  • Light or heavy rinse options, each cycling 3 times

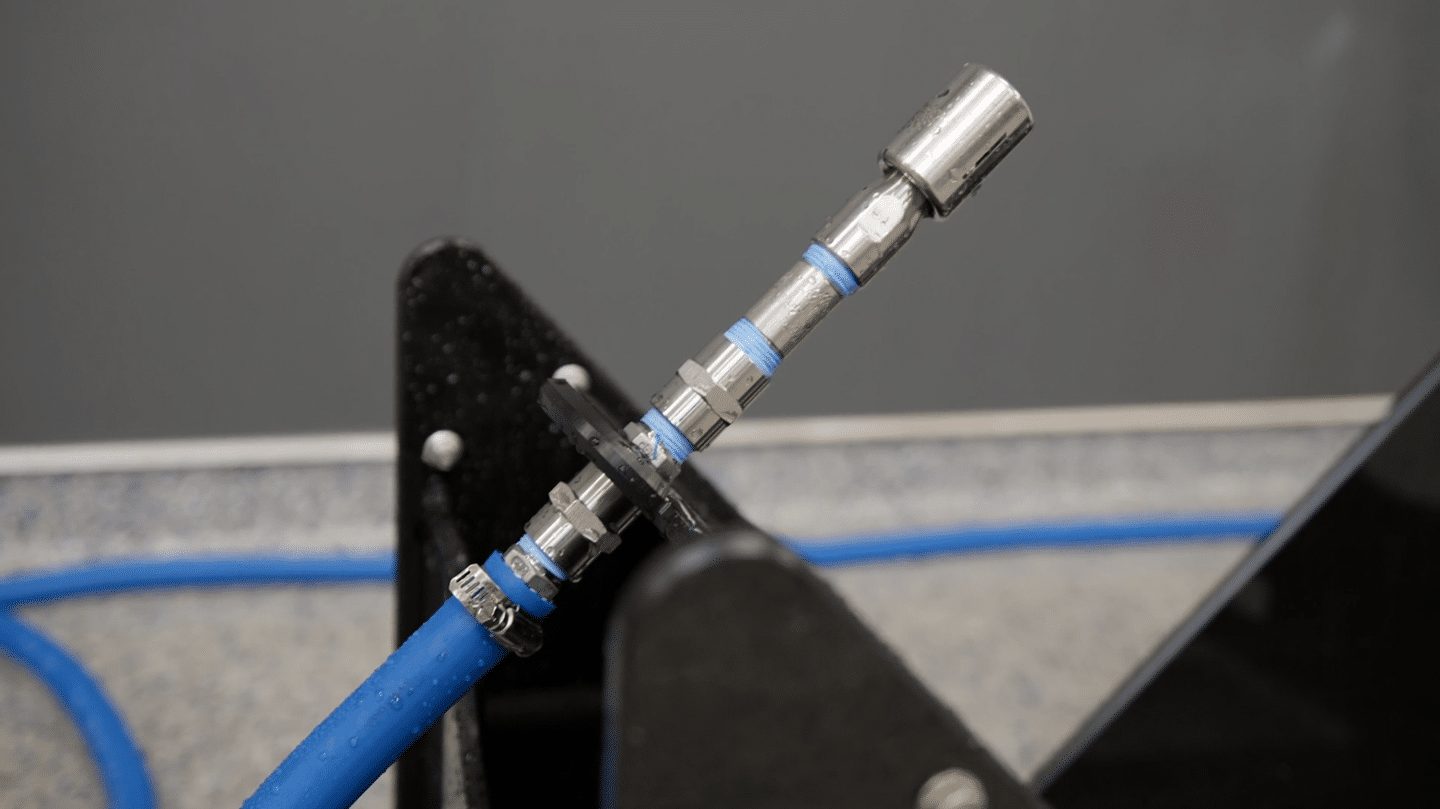

  • Durable stainless steel spinner nozzle for a thorough triple rinse
  • Designed for a wide range of incoming water pressures and flows
  • No timer programming required, works out of the box
  • Available for 15, 30 and 55 US gallon drums

Options

  • Colour-coded discharge hose (4 colours: blue, green, yellow, red)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Unit Type
Chemical management
Power Source
Electric

Technical information

Power: Water and electricity

Flow rate: 34.1–64.4 l/min

Rinse cycles: 30-second triple rinse uses 51.1–96.5 litres; 60-second triple rinse uses 102.2–193.1 litres

Timer: Repeat cycle, PLC controlled

Water supply: Minimum 34.1 l/min at source

Electrical supply: 120 V AC, 60 Hz, 2 A (GFCI-protected outlet)

Liquid: Water only

Liquid temperature: 4.4–87.8°C

Discharge hose: 7.6m (25ft), 19mm (3/4") ID

Nozzles: Stainless steel spinner

Water connection: 1/2" FNPT at the water supply box

Part number: DRS
