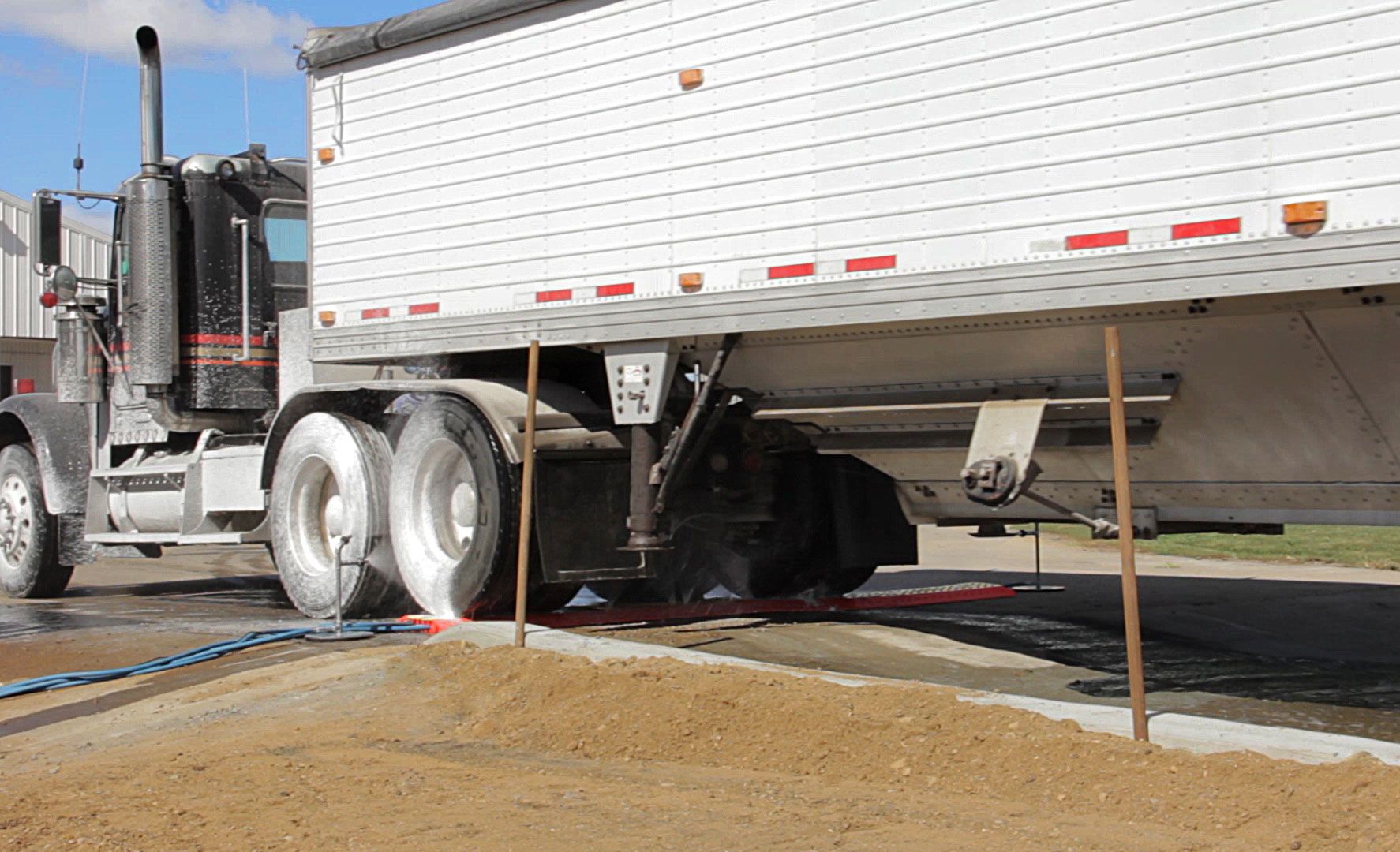

FOAMit Drive Over Foam Unit – image 2

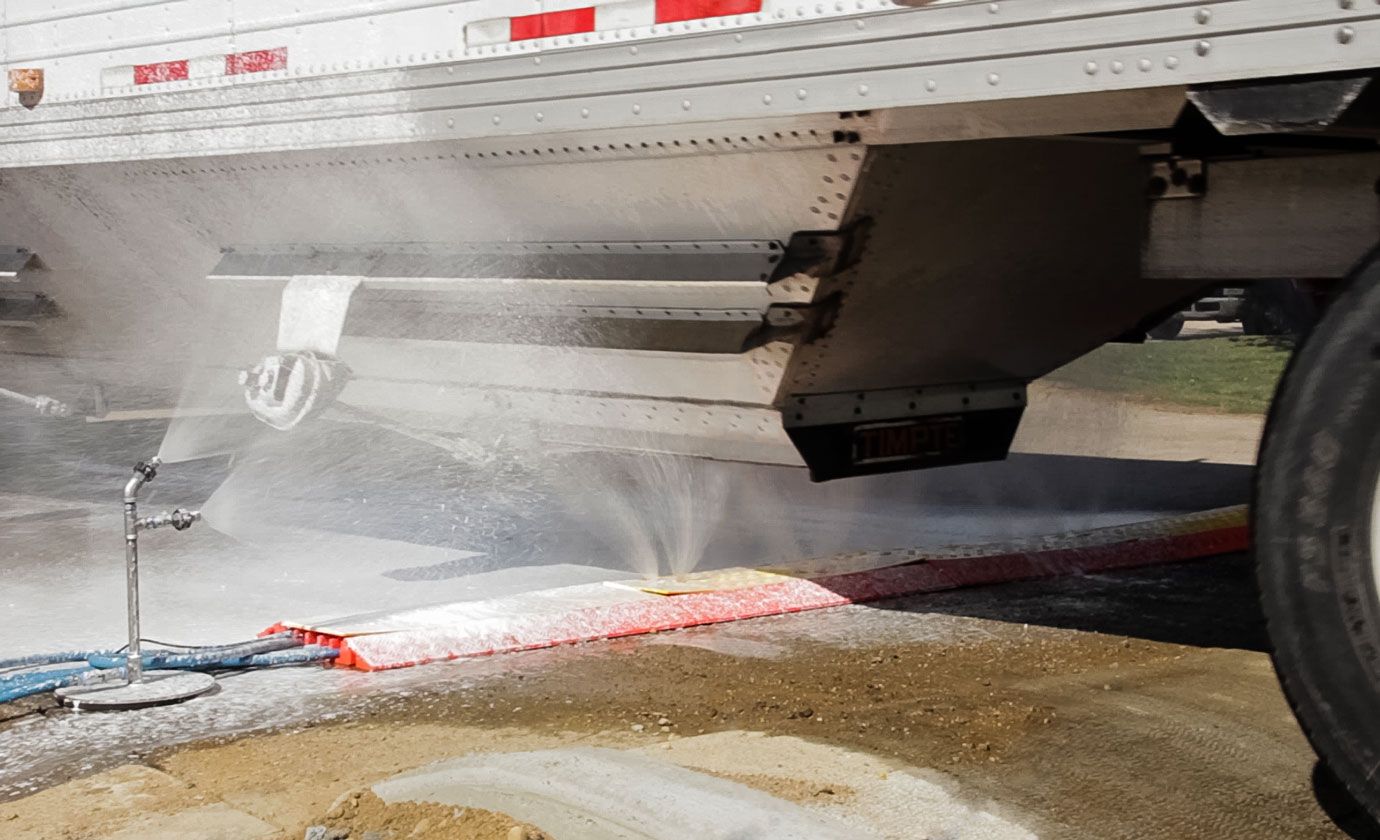

FOAMit Drive Over Foam Unit – image 3

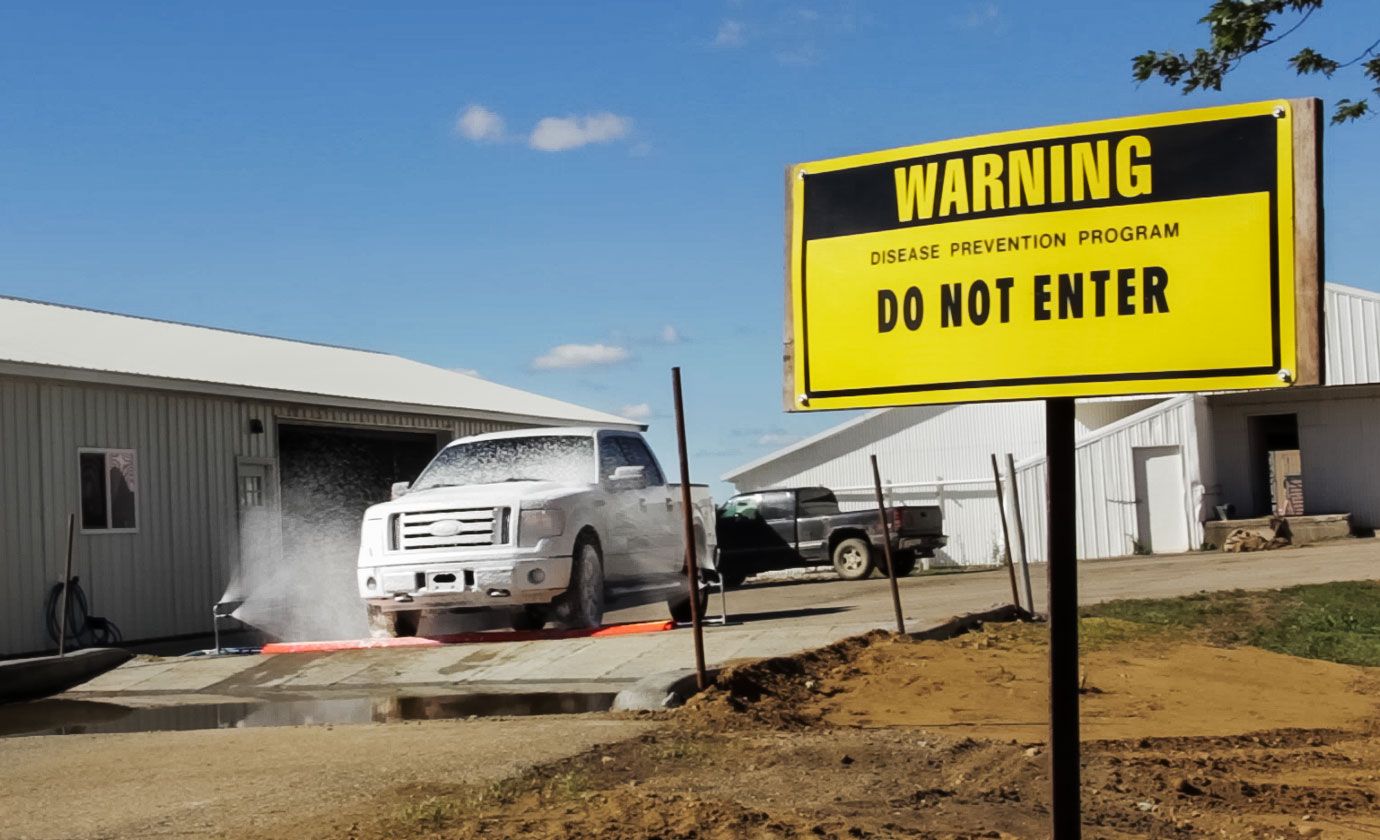

FOAMit Drive Over Foam Unit – image 4

FOAMit Drive Over Foam Unit

SKU FI-DOF
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit FI-DOF is a drive-over foam system that applies foam to the underbody of trucks and passenger vehicles. Powered by compressed air and electricity, it draws concentrated chemical through a 208.2 litre proportioning tank and dilutes it at 4:1–530:1 (water:chemical).

A sensor starts the system automatically as a vehicle approaches, so no attendant is needed. The foam gives long contact times and a visual check of coverage.

Key features

  • Applies foam to vehicle underbodies for long contact times and visible coverage
  • Sensor-operated: starts when a vehicle approaches, no attendant needed
  • Helps limit disease brought in on incoming traffic as vehicles drive over the ramp
  • Works with trucks and passenger vehicles
  • Draws from concentrated product, proportioning tank included
  • Dilutes at 4:1–530:1 (water:chemical)
  • Low-pressure system
  • Water separator protects the pumps
  • Easy to install

Options

  • Pump seals: Santoprene (standard), Viton (FI-DOFV) or Kalrez (FI-DOFK)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Unit Type
Doorway foam system
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Concentrate
Tank Capacity
208.2 litres

Technical information

Capacity: Proportioning tank 208.2 litres

Power: Compressed air and electricity

Chemical pickup: Concentrated product via proportioning tank

Products drawn: One

Flow rate: 49.2 l/min

Dilution: 4:1–530:1 (water:chemical)

Coverage: Up to 1651mm wide at 178mm ground clearance; up to 2591mm wide at 1245mm ground clearance

Vehicle ground clearance: 178–1245mm

Vehicle weight: Up to 18.14 tonnes (40,000lb) per axle

Air supply: 3.4 bar (50 psi), 566.3 l/min (20 cfm)

Water pressure: 1.7–6.9 bar (25–100 psi), backflow prevention required

Electrical supply: 120 V AC, 60 Hz, 2 A (GFCI-protected outlet)

Liquid temperature: 4.4–37.8°C

Nozzles: 5 ramp nozzle assemblies and 2 side nozzle assemblies

Nozzle distance from control panel: 9.1m (30ft) minimum, approx. 15.2m (50ft) maximum

Hose: 12.7mm (1/2") ID between control panel and nozzles

Suction line: Tank to chemical, 1 × 2.7m (9ft) clear hose, 12.7mm (1/2") ID; pump box to tank, 6 × 3.1m (10ft) blue hose, 9.5mm (3/8") ID

Pump seals: Santoprene, Viton or Kalrez

Ramp width: 3.6m (12ft)

Sensor: Detects moving iron-based metal

Traffic flow: One or both directions

Part number: FI-DOF

Supplied with: Proportioning tank 208.2 litres, control panel assembly, ramp (4 sections), 5 ramp nozzle assemblies, 2 side nozzle assemblies, sensor, 70.1m (230ft) of 12.7mm (1/2") ID blue hose, control panel mounting hardware, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
