FOAMit Concentrate Spray Unit
FOAMit Concentrate Spray Unit – product image
FOAMit Concentrate Spray Unit – image 2
FOAMit Concentrate Spray Unit – image 3
FOAMit Concentrate Spray Unit – image 4
FOAMit Concentrate Spray Unit – image 5
FOAMit Concentrate Spray Unit – image 6
FOAMit Concentrate Spray Unit – image 7

FOAMit Concentrate Spray Unit

SKU SP-WC
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit SP-WC is a wall-mounted concentrate spray unit powered by compressed air. It draws one concentrated product, dilutes it with mains water at 34:1–640:1 or 24:1–640:1 depending on the fan tip, and sprays through a 15.2m hose and polypropylene trigger handle with a 3.0–3.7m reach.

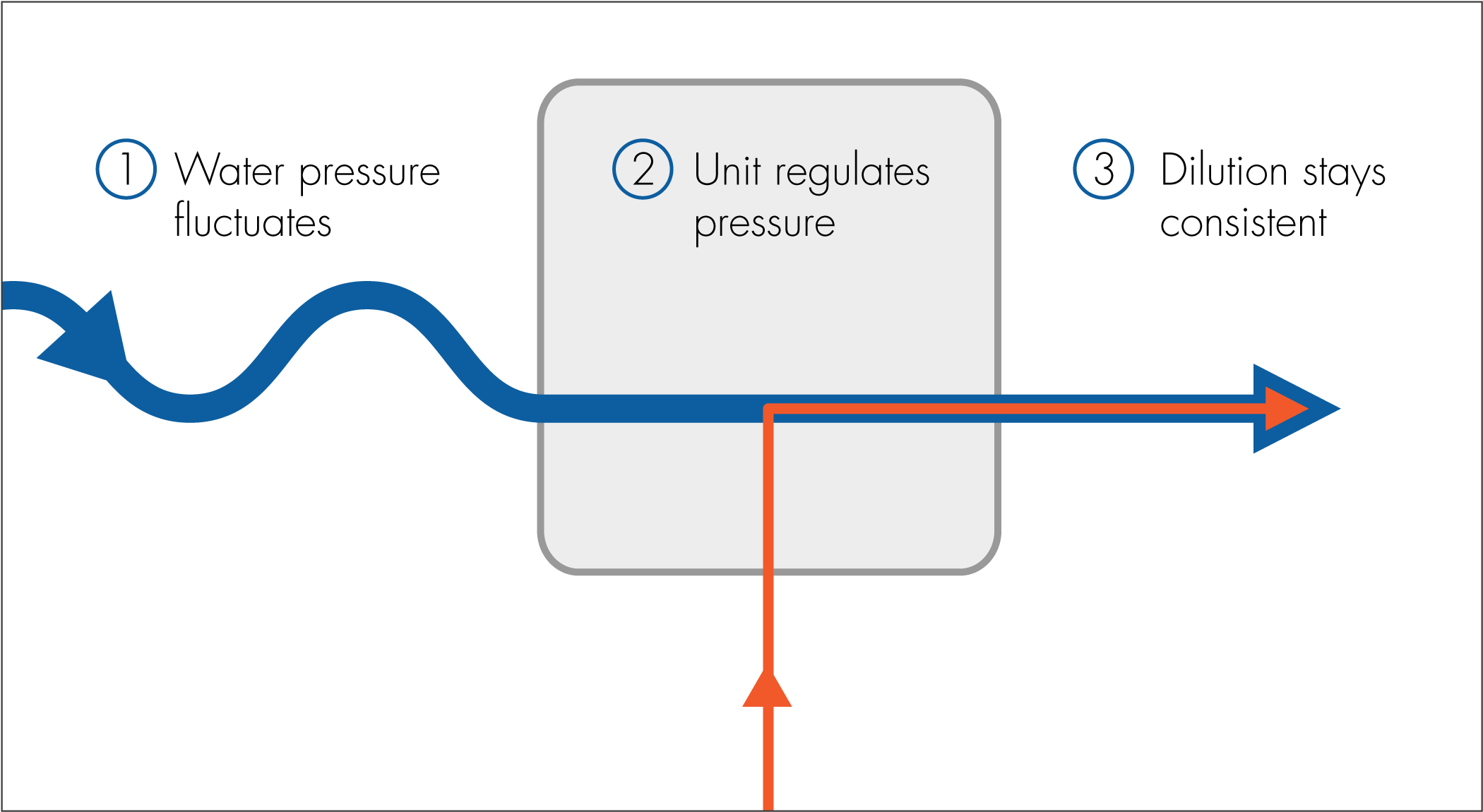

Dilution stays consistent regardless of changes in water pressure, and the unit can form part of a central chemical system. The quick-change pump and easily reached components keep downtime short.

Key features

  • Draws from concentrated product, powered by compressed air
  • Consistent, reliable dilution regardless of water pressure changes
  • Dilution 34:1–640:1 (ST2520SS tip) or 24:1–640:1 (ST2550SS tip)
  • Can be part of a central system for chemical security
  • Quick-change pump
  • Poly spray gun wand with fan tip
  • Anti-kink hose protection

Options

  • Pump seals: Santoprene (standard), Viton (SP-WCV) or Kalrez (SP-WCK)
  • Fan tip: ST2520SS or ST2550SS
  • Colour-coded discharge hose (4 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Spray unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Concentrate

Technical information

Power: Compressed air

Chemical pickup: Concentrated product

Products drawn: One

Output: 7.6 l/min of liquid (ST2520SS tip); 15.1–18.9 l/min (ST2550SS tip)

Reach: 3.0–3.7m

Dilution: 34:1–640:1 (ST2520SS), 24:1–640:1 (ST2550SS) water:chemical

Air supply: 2.8–5.5 bar (40–80 psi), 56.6 l/min (2 cfm)

Water pressure: 0.7–6.9 bar (10–100 psi), backflow prevention required

Liquid temperature: 4.4–37.8°C

Discharge hose: 15.2m (50ft), 12.7mm (1/2") ID

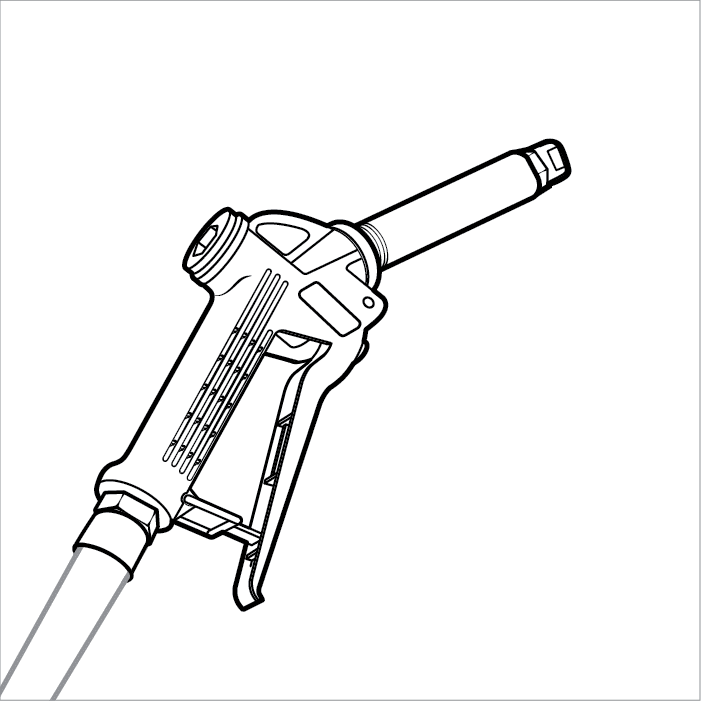

Wand: Polypropylene trigger handle, 25° fan tip

Suction line: 2.4m (8ft) clear, 6.4mm (1/4") ID

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall

Part number: SP-WC

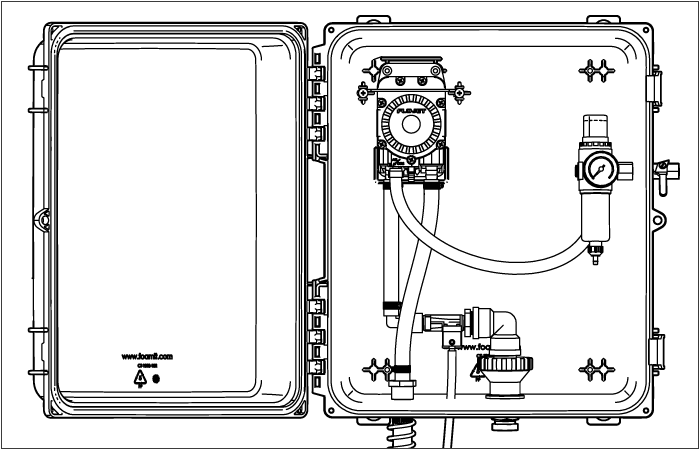

Supplied with: Control box assembly, discharge hose and wand, mounting hardware, metering tip kits for spray injector, stainless steel hose rack, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
