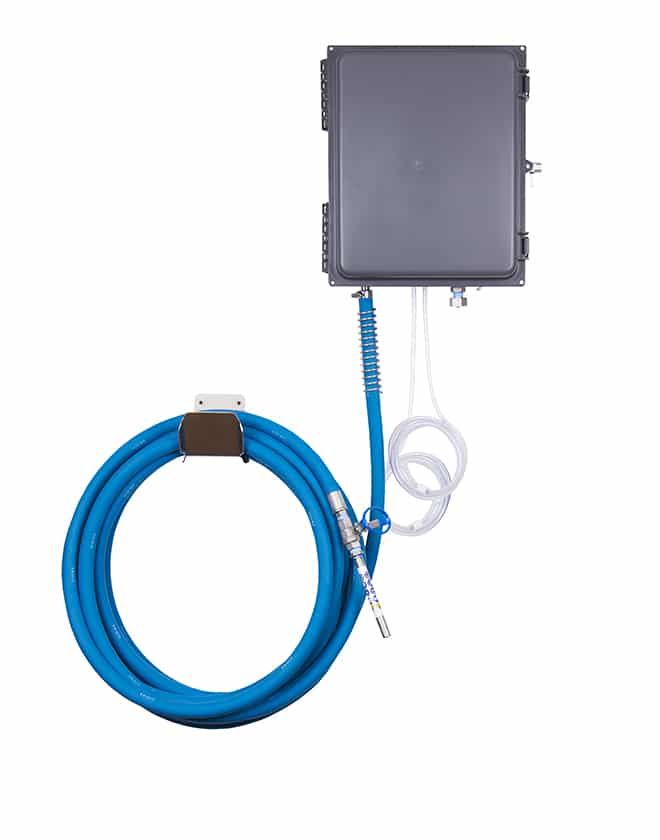

FOAMit Concentrate Foam Unit for 2-Part Products
The FOAMit FI-WC-2P is a concentrate foam unit powered by compressed air, designed for two-part products that must be mixed on the fly rather than before application. It draws two concentrated products simultaneously, dilutes each at 8:1 to 150:1 with mains water, and applies the foam through a 15.2m hose and stainless steel wand with a reach of 7.6–9.1m.

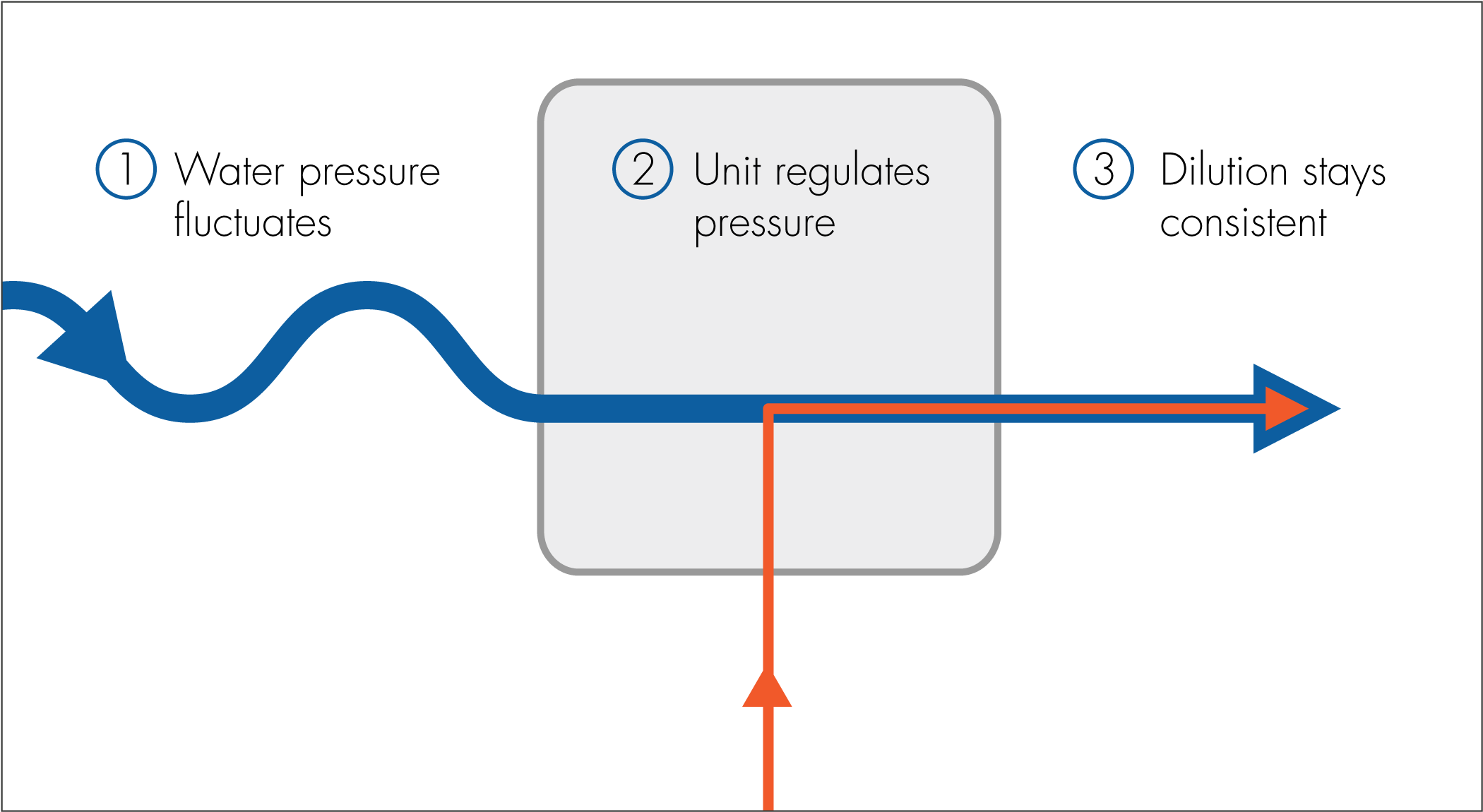

Its on-board pump gives reliable dilution regardless of water pressure fluctuations, and the quick-change pump is easy to reach inside a securable unit box.
For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.
Power: Compressed air
Chemical pickup: Concentrated product
Products drawn: Two, simultaneously
Output: 75.7–170.3 l/min of foam
Flow rate: 7.6 l/min
Reach: 7.6–9.1m
Dilution ratio: 8:1 to 150:1 (water:chemical) per product
Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)
Water pressure: 2.1–6.9 bar (30–100 psi), backflow prevention required
Liquid temperature: 4.4–37.8°C
Discharge hose: 15.2m (50ft), 19mm (3/4") ID

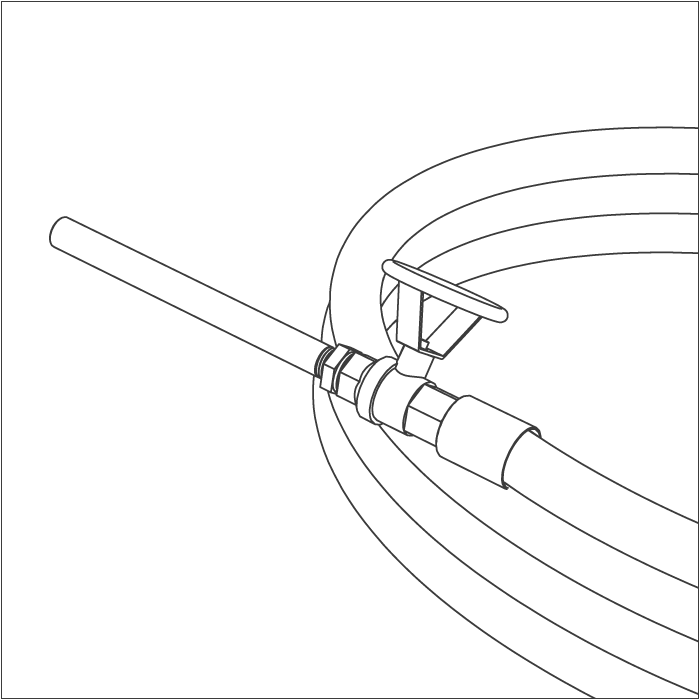

Wand: 178mm stainless steel, zero-degree tip, ball valve
Suction line: 2.4m (8ft) clear hose, 6.4mm (1/4") ID

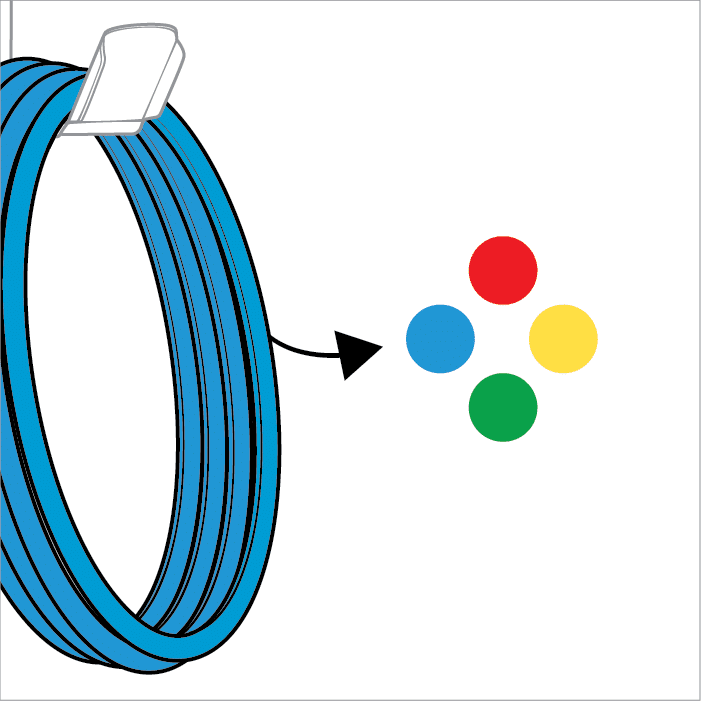

Pump seals: Santoprene, Viton or Kalrez
Dimensions: Height 457mm
Part number: FI-WC-2P
