FOAMit Concentrate Foam Unit
FOAMit Concentrate Foam Unit – product image
FOAMit Concentrate Foam Unit – image 2
FOAMit Concentrate Foam Unit – image 3
FOAMit Concentrate Foam Unit – image 4
FOAMit Concentrate Foam Unit – image 5
FOAMit Concentrate Foam Unit – image 6
FOAMit Concentrate Foam Unit – image 7

FOAMit Concentrate Foam Unit

SKU FI-WC
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit FI-WC is a wall-mounted concentrate foam unit powered by compressed air. It draws concentrated product, dilutes it at 14:1–320:1 (water:chemical) and applies it as foam through a 15.2m hose and 178mm stainless steel wand with zero tip and ball valve, producing 75.7–170.3 l/min of foam with a reach of 7.6–9.1m.

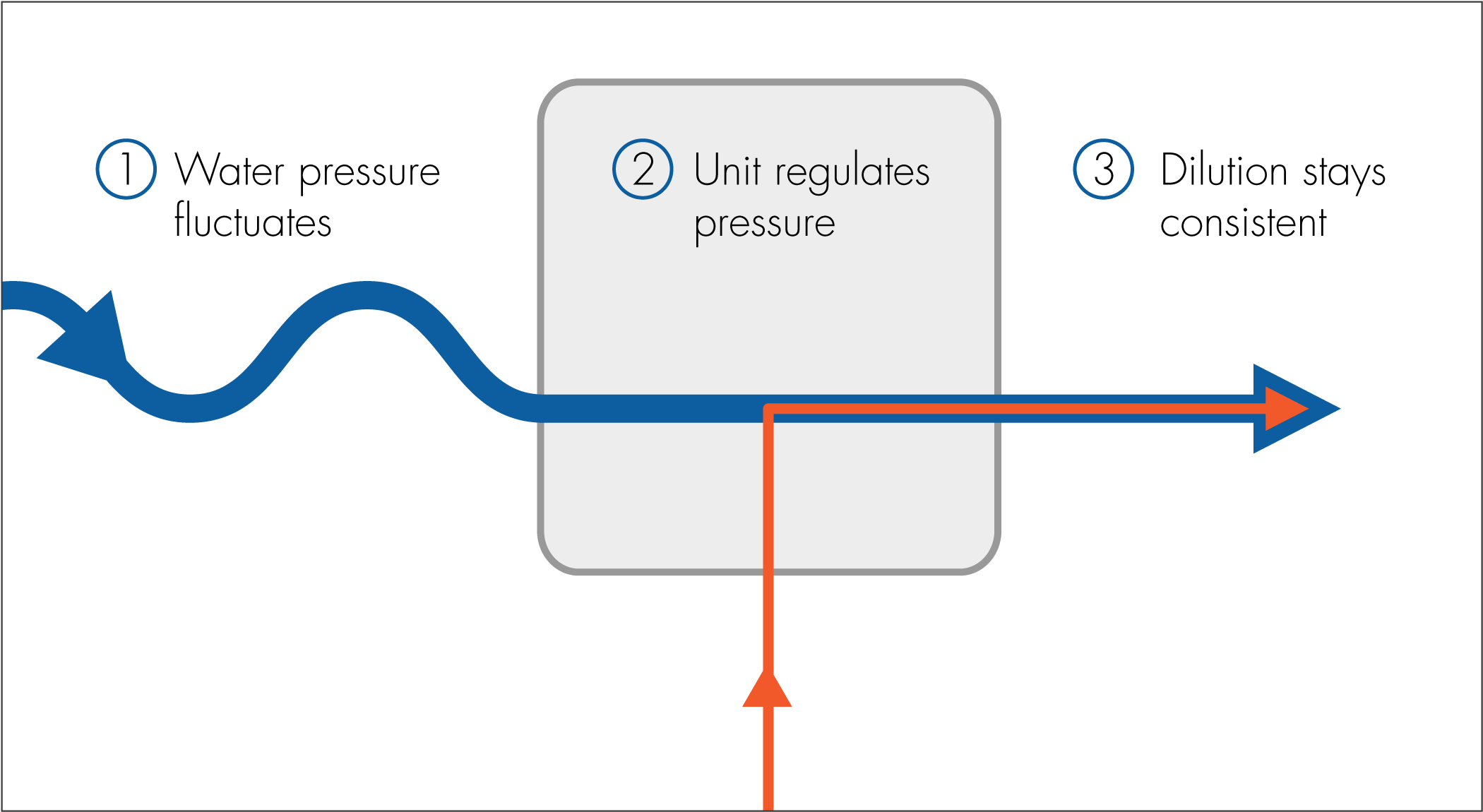

Dilution stays consistent regardless of changes in water pressure, and the unit can form part of a central system for chemical security.

Key features

  • Draws from concentrated product, dilutes at 14:1–320:1
  • Consistent, reliable dilution regardless of changes in water pressure
  • Can be part of a central system for chemical security
  • Powered by compressed air
  • Stainless steel ball valve, wand and fluid fittings
  • Quick-change pump and easily accessed components

Options

  • Pump seals: Santoprene (standard), Viton (FI-WCV) or Kalrez (FI-WCK)
  • Colour-coded discharge hose (4 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Foam unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Concentrate

Technical information

Power: Compressed air

Chemical pickup: Concentrated product

Products drawn: One

Output: 75.7–170.3 l/min of foam

Flow rate: 7.6 l/min

Reach: 7.6–9.1m

Dilution: 14:1–320:1 (water:chemical)

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Water pressure: 0.7–6.9 bar (10–100 psi), backflow prevention required

Liquid temperature: 4.4–37.8°C

Discharge hose: 15.2m (50ft), 19mm (3/4") ID

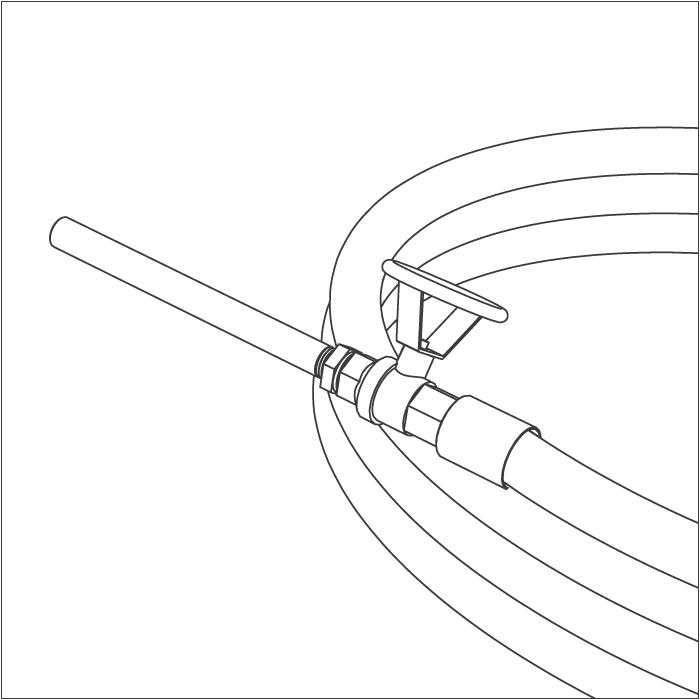

Wand: 178mm stainless steel, zero tip, ball valve

Suction line: 2.4m (8ft) clear hose, 6.4mm (1/4") ID

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall mounted

Part number: FI-WC

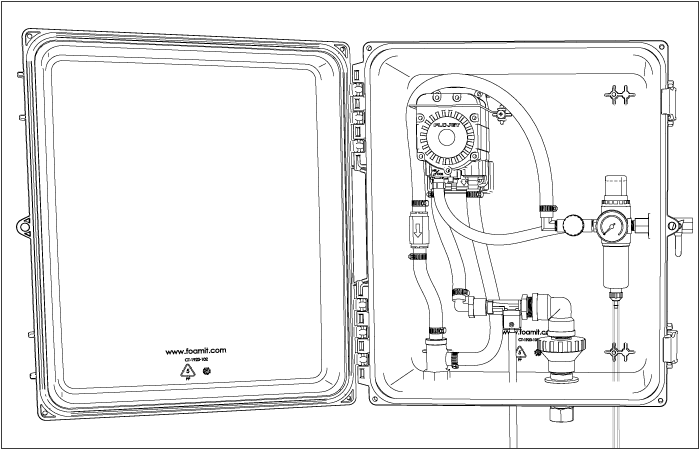

Supplied with: Control box assembly, discharge hose and wand, mounting hardware, metering tip kit for foam injector, stainless steel hose rack, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
