FOAMit Concentrate Foam and Sanitize Unit
FOAMit Concentrate Foam and Sanitize Unit – product image
FOAMit Concentrate Foam and Sanitize Unit – image 2
FOAMit Concentrate Foam and Sanitize Unit – image 3
FOAMit Concentrate Foam and Sanitize Unit – image 4
FOAMit Concentrate Foam and Sanitize Unit – image 5

FOAMit Concentrate Foam and Sanitize Unit

SKU FISP-WC
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit FISP-WC is a wall-mounted concentrate foam and sanitise unit powered by compressed air. Separate foam and spray systems share one enclosure but no components, each drawing its own concentrate and diluting it with mains water: foam at 14:1–320:1 through a 15.2m hose and stainless steel wand, and sanitiser at up to 640:1 through a 15.2m hose and spray gun.

Both functions can run independently or at the same time with no cross-contamination, and incoming water pressure is regulated for consistent dilution and foam quality.

Key features

  • Foam and sanitise systems in a shared enclosure with no shared components
  • Use foam and spray independently or simultaneously
  • No cross-contamination between products
  • Draws from concentrate, with dilution set independently for each function

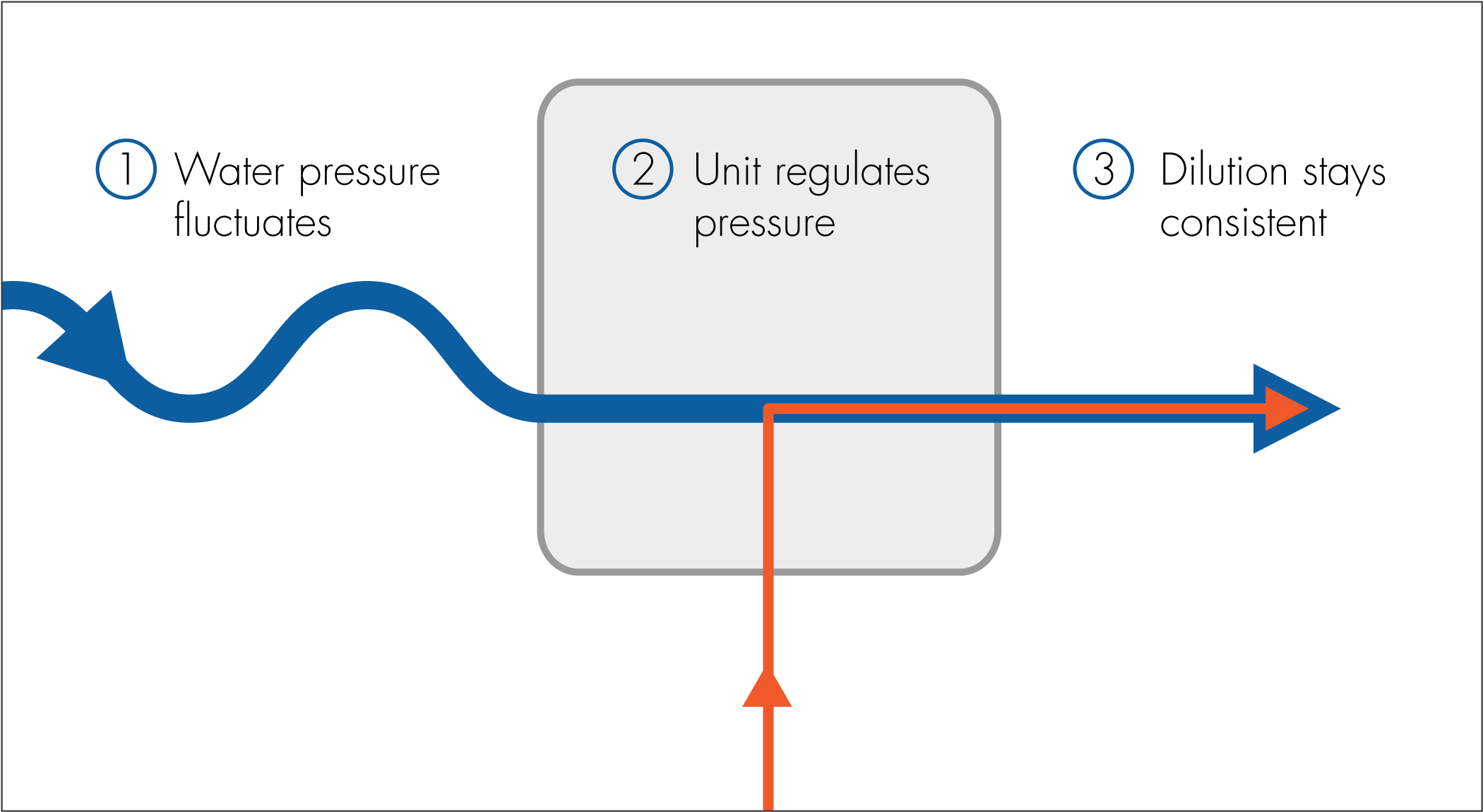

  • Regulates incoming water pressure for consistent dilution and foam quality
  • Pump seal material selectable independently for each function
  • Requires separate water, compressed air and chemical supply for each function

Options

  • Pump seals for each function: Santoprene, Viton or Kalrez
  • Colour-coded discharge hose (4 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Foam unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Concentrate

Technical information

Power: Compressed air

Chemical pickup: Concentrated product

Products drawn: One for foam, one for spray

Output: Foam 75.7–170.3 l/min; spray 7.6 l/min with ST2520SS tip, 15.1–18.9 l/min with ST2550SS tip

Flow rate: Foam 7.6 l/min; spray 7.6 l/min (ST2520SS) or 15.1–18.9 l/min (ST2550SS)

Reach: Foam 7.6–9.1m (25–30ft); spray 3–3.7m (10–12ft)

Dilution/ratio: Foam 14:1–320:1; spray 34:1–640:1 (ST2520SS) or 24:1–640:1 (ST2550SS)

Air supply: Foam 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm); spray 2.8–5.5 bar (40–80 psi), 56.6 l/min (2 cfm)

Water pressure: 0.7–6.9 bar (10–100 psi), backflow prevention required

Liquid temperature: 4.4–37.8°C

Discharge hose: Foam 15.2m (50ft), 19.1mm (3/4") ID; spray 15.2m (50ft), 12.7mm (1/2") ID

Wand: Foam 178mm (7in) stainless steel, zero tip, ball valve; spray polypropylene spray gun, 25° fan tip

Suction line: 2.4m (8ft) clear hose, 6.4mm (1/4") ID (each system)

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall mounted

Part number: FISP-WC

Supplied with: Control box assembly, foam discharge hose and wand, spray discharge hose and trigger handle, alternate size fan tip for spray trigger handle, metering tip kit for foam injector, metering tip kit for spray injector, additional ultra-lean metering tip kit for spray injector, two stainless steel hose racks, mounting hardware, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
