FOAMit Chemical Transfer Unit For Up To Five Products
FOAMit Chemical Transfer Unit For Up To Five Products – product image
FOAMit Chemical Transfer Unit For Up To Five Products – image 2
FOAMit Chemical Transfer Unit For Up To Five Products – image 3

FOAMit Chemical Transfer Unit For Up To Five Products

SKU CTX
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

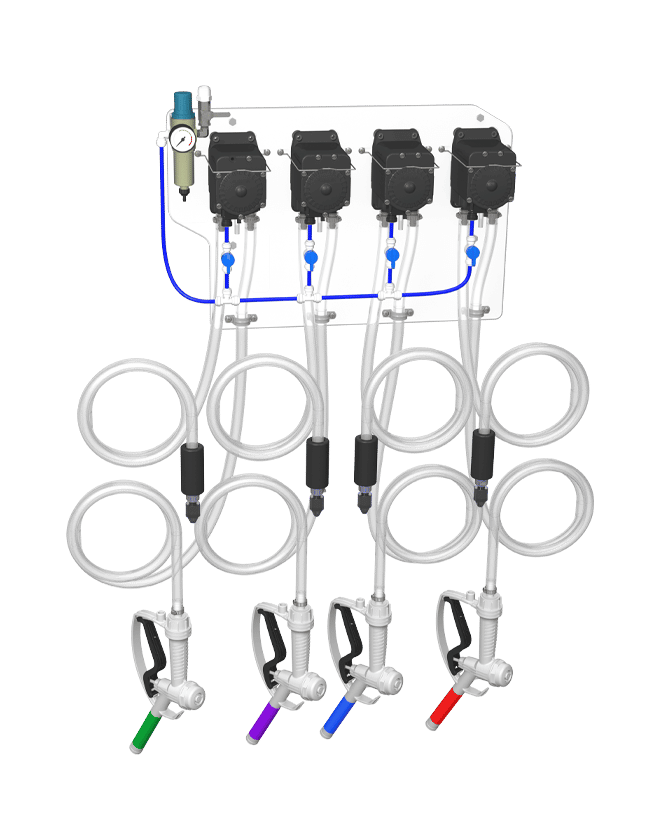

The FOAMit CTX is a wall-mounted chemical transfer unit powered by compressed air, configurable with one to five pumps for up to five products. Each pump transfers pre-mixed solution or concentrated product at up to 13.2 l/min through 2.4m of clear braid hose to a heavy-duty poly fill gun.

It fills jugs, portable units and other containers with control, and its small footprint saves wall space.

Key features

  • Transfers each product at up to 13.2 l/min
  • Tool-free pump changes with the quick-change pump bracket
  • Air-operated diaphragm pump with quick-release hose barbs
  • Chemically resistant PVC hose with strain relief on the discharge hose
  • Weighted suction line with filter and check valve
  • Air regulator with filter
  • Poly fill gun with Hastelloy components for compatibility
  • Small footprint saves wall space

Options

  • Number of pumps: 1 to 5 (e.g. CTX1, CTX3)
  • Pump seals per pump: Santoprene (standard), Viton (V) or Kalrez (K), e.g. CTX2VK = two pumps, one Viton and one Kalrez
  • Colour-coded wand indicator (4 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Chemical management
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix or concentrate

Technical information

Power: Compressed air

Chemical pickup: Pre-mixed solution and concentrated product

Products drawn: One per pump, up to five pumps

Flow rate: 13.2 l/min per pump

Air supply: 1.4–5.5 bar (20–80 psi), 56.6 l/min (2 cfm)

Liquid temperature: 4.4–37.8°C

Discharge hose: 2.4m (8ft) clear braid, 12.7mm (1/2") ID

Wand: Polypropylene fill gun

Suction line: 2.4m (8ft) clear braid, 12.7mm (1/2") ID

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall mounted

Part number: CTX

Supplied with: Complete unit with discharge hose and suction line, mounting hardware, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
