FOAMit Central Foam Station
FOAMit Central Foam Station – product image

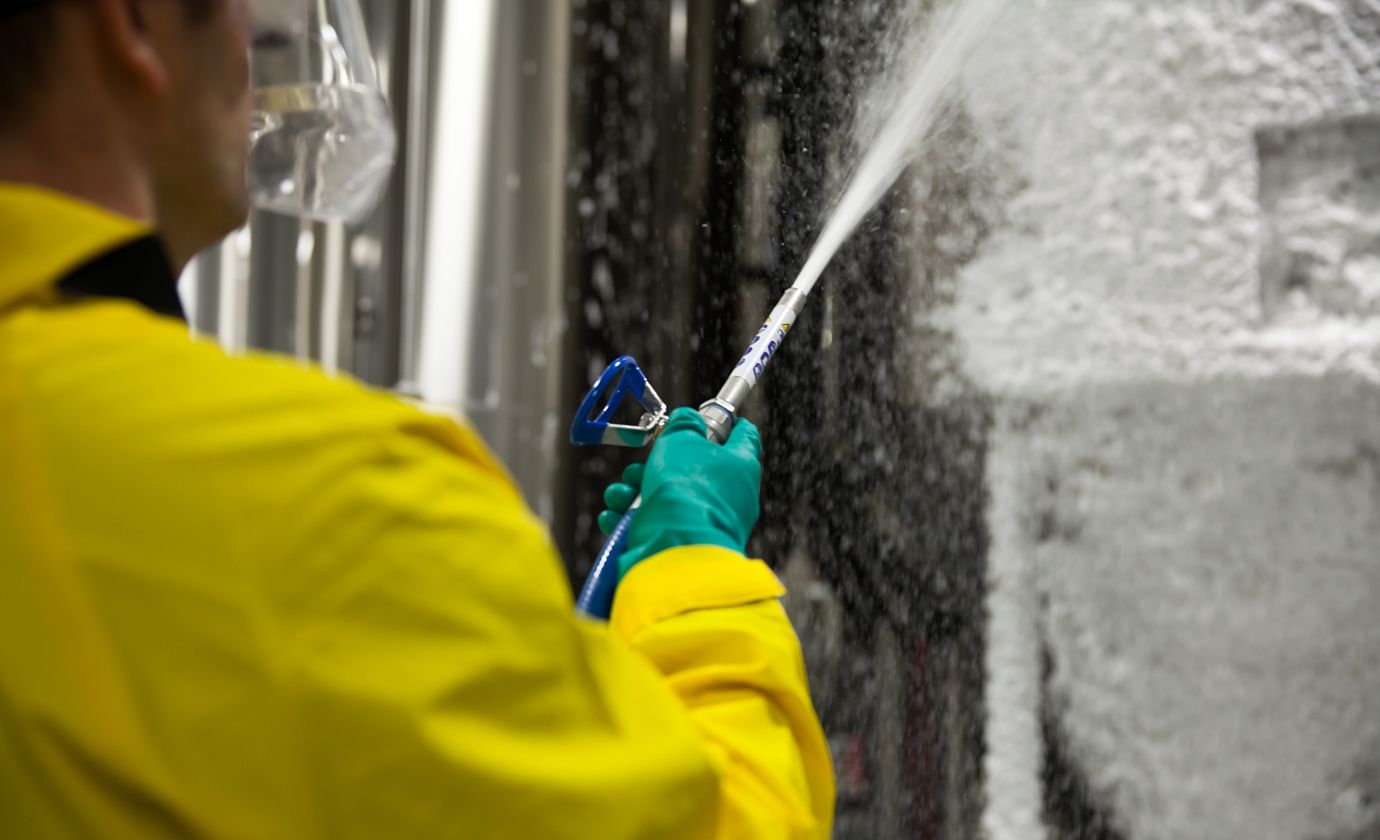

FOAMit Central Foam Station – image 2
FOAMit Central Foam Station – image 3
FOAMit Central Foam Station – image 4
FOAMit Central Foam Station – image 5

FOAMit Central Foam Station

SKU FI-STN
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit FI-STN is a wall-mounted foam drop station for central foam systems, supplied with pre-mixed solution from a central pump and header and powered by compressed air. It applies foam through a 15.2m hose and 178mm stainless steel wand with zero tip and ball valve, producing 75.7–170.3 l/min of foam with a reach of 7.6–9.1m.

Chemical is kept secure in one central location and supplied on demand, so there are no containers to refill at the point of use. The pump and nozzles are sold separately.

Key features

  • Drop station for central foam systems
  • One central pump distributes pre-mixed solution through a header system
  • Chemical kept secure away from the production floor, with no refills at the station
  • Powered by compressed air
  • Stainless steel ball valve, wand and fluid fittings
  • Stainless steel hose hanger included
  • Box can be secured with a padlock

Options

  • Colour-coded discharge hose (4 colours: blue, green, yellow, red)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Central System
Unit Type
Foam unit
Power Source
Air Operated
Chemical Pickup
Pre-mix

Technical information

Power: Compressed air, supplied from a central system

Chemical pickup: Pre-mixed solution from a central system

Products drawn: One

Output: 75.7–170.3 l/min of foam

Flow rate: 7.6 l/min

Reach: 7.6–9.1m

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Central supply: Header system delivering 7.6 l/min at 2.8–5.5 bar (40–80 psi)

Liquid temperature: 4.4–37.8°C

Discharge hose: 15.2m (50ft), 19mm (3/4") ID

Wand: 178mm stainless steel, zero tip, ball valve

Chemical inlet: 1.2m (4ft) hose, 12.7mm (1/2") ID, with 1lb check valve

Mounting: Wall mounted

Height: 457mm

Part number: FI-STN

Supplied with: Control box, hose and hanger, wand, user manual (pump sold separately)

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
