FOAMit 30 Gallon Transfer Unit with Curved Stainless Steel Wand
FOAMit 30 Gallon Transfer Unit with Curved Stainless Steel Wand – product image
FOAMit 30 Gallon Transfer Unit with Curved Stainless Steel Wand – image 2
FOAMit 30 Gallon Transfer Unit with Curved Stainless Steel Wand – image 3

FOAMit 30 Gallon Transfer Unit with Curved Stainless Steel Wand

SKU TU-30N-CSSW
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit TU-30N-CSSW is an 113.6 litres portable transfer unit powered by compressed air, fitted with a curved stainless steel wand (CSSW). It draws pre-mixed solution or concentrated product and transfers it at up to 13.2 l/min through a 4.6m chemically resistant PVC hose.

It removes the need to carry jugs by hand, reducing the risk of chemical exposure and saving labour time.

Key features

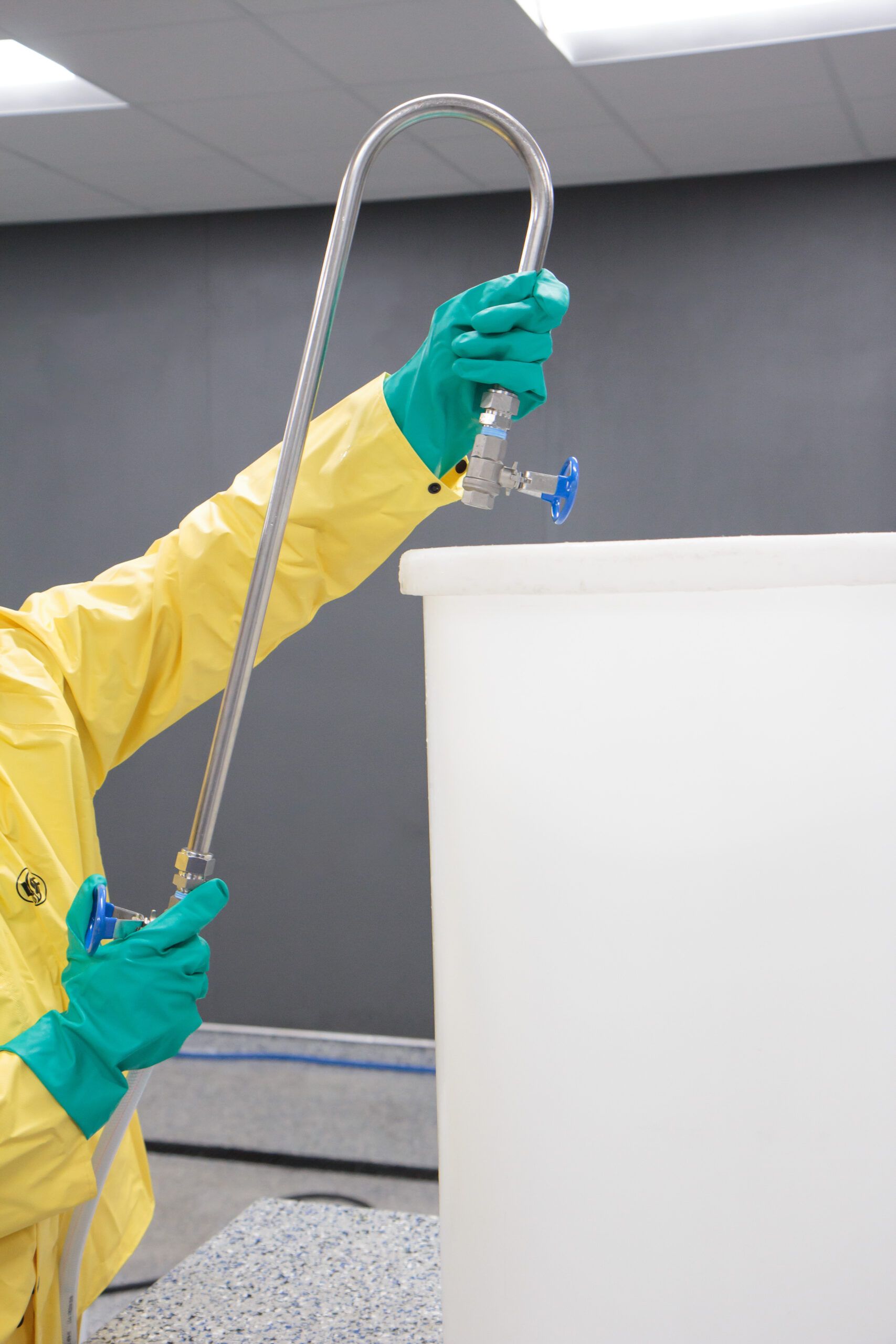

  • Curved stainless steel wand helps control filling of large vessels, tanks and kettles
  • Transfers up to 13.2 l/min
  • Draws pre-mixed solution or concentrated product
  • Chemically resistant PVC hose
  • Air regulator with filter
  • Air-operated diaphragm pump with quick-release hose barbs
  • In-line strainer protects the pump from debris

Options

  • Pump seals: Santoprene, Viton or Kalrez
  • Colour-coded lid (9 colours)
  • Also available with polypropylene fill gun (PFG) or stainless steel wand (SSW)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Mobile / Trolley
Unit Type
Chemical management
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix or concentrate
Tank Capacity
113.6 litres

Technical information

Capacity: 113.6 litres

Power: Compressed air

Chemical pickup: Pre-mixed solution or concentrated product

Products drawn: One

Flow rate: 13.2 l/min

Air supply: 1.4–5.5 bar (20–80 psi), 56.6 l/min (2 cfm)

Liquid temperature: 4.4–37.8°C

Discharge hose: 4.6m (15ft), 12.7mm (1/2") ID, PVC

Wand: 686mm (27") curved stainless steel, zero tip, ball valves

Suction line: 1m (3.5ft) clear braided hose, 12.7mm (1/2") ID

Pump seals: Kalrez (Santoprene, Viton or Kalrez available)

Wheels: 2 × 254mm (10") non-marking, plus 2 × 127mm (5") castors, one locking

Part number: TU-30N-CSSW

Supplied with: Transfer unit, discharge hose with wand, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
