FOAMit 24V Twin-Line Pre-Mix Doorway Foam Unit
FOAMit 24V Twin-Line Pre-Mix Doorway Foam Unit – product image
FOAMit 24V Twin-Line Pre-Mix Doorway Foam Unit – image 2
FOAMit 24V Twin-Line Pre-Mix Doorway Foam Unit – image 3
FOAMit 24V Twin-Line Pre-Mix Doorway Foam Unit – image 4

FOAMit 24V Twin-Line Pre-Mix Doorway Foam Unit

SKU DS-WL-TL
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit DS-WL-TL is a wall-mounted twin-line doorway foam unit powered by compressed air and electricity. It draws pre-mixed solution and supplies up to three twin-line stainless steel nozzle assemblies, with a combined distance of up to 30.5m between the control box and nozzles.

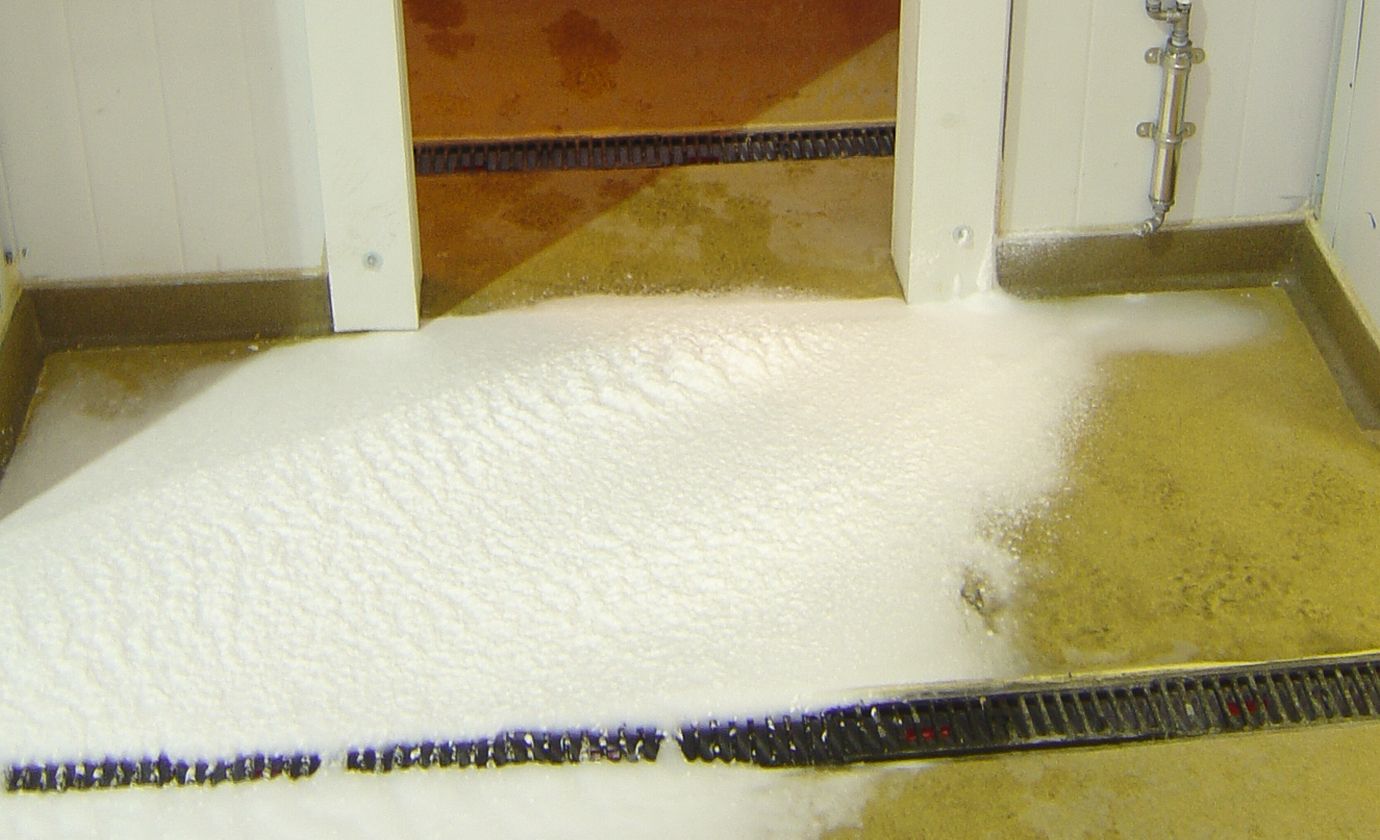

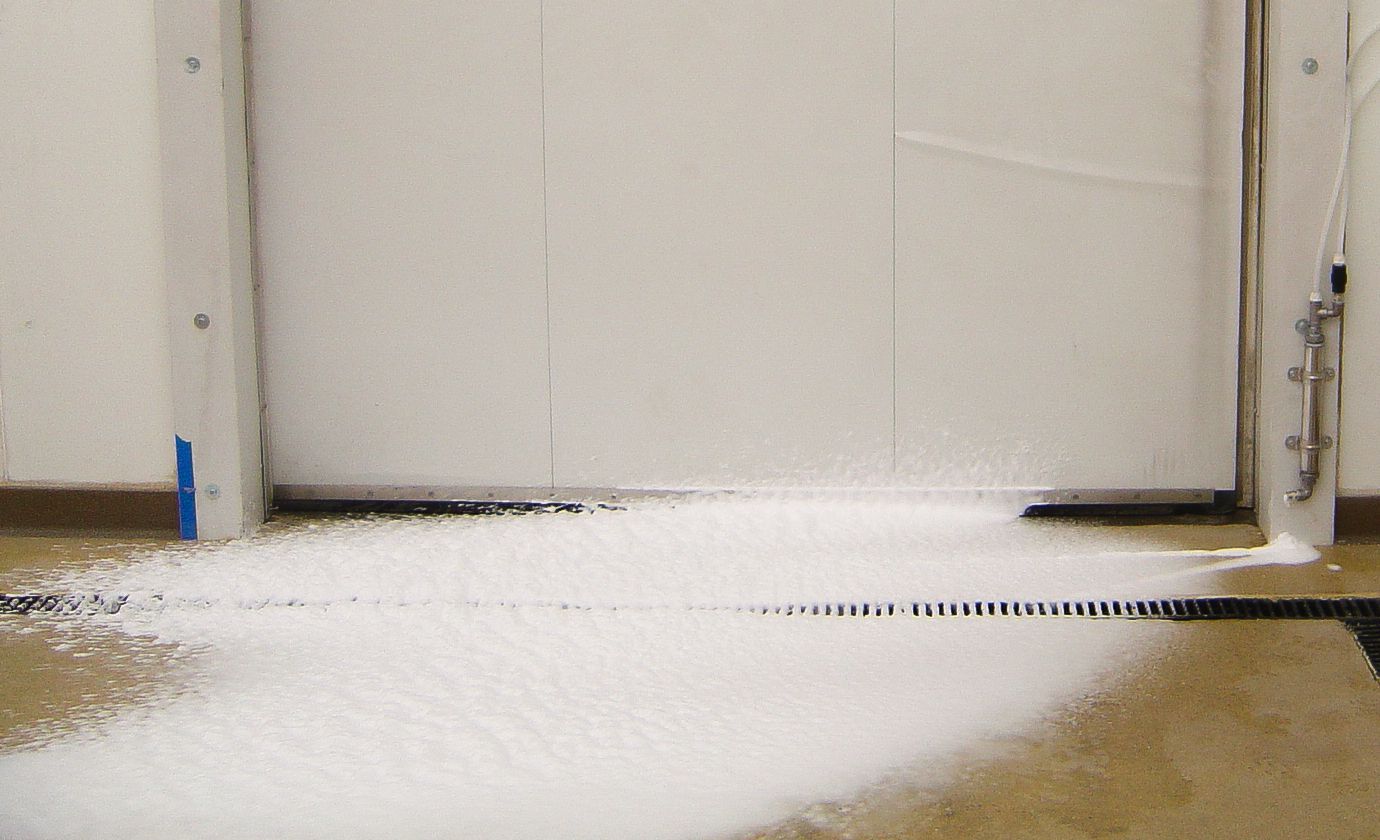

A repeat-cycle digital timer, adjustable to traffic flow, applies foam on schedule across the doorway – just drop in the suction line and go.

Key features

  • Draws from pre-mixed solution – drop in the suction line and go
  • Powered by compressed air and electricity
  • Repeat-cycle digital timer, adjustable to traffic flow, with set delays to ensure coverage
  • Quick-change pump
  • Supports up to 3 twin-line stainless steel nozzle assemblies
  • Up to 30.5m (100ft) total distance between control box and nozzles, need not be evenly split

Options

  • Pump seals: Santoprene (standard), Viton (DS-WLV-TL) or Kalrez (DS-WLK-TL)
  • Number of nozzles: one (standard), two (-2) or three (-3), e.g. DS-WL-TL-2

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Doorway foam system
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix

Technical information

Power: Compressed air and electricity

Chemical pickup: Pre-mixed solution

Products drawn: One

Flow rate: 7.6 l/min

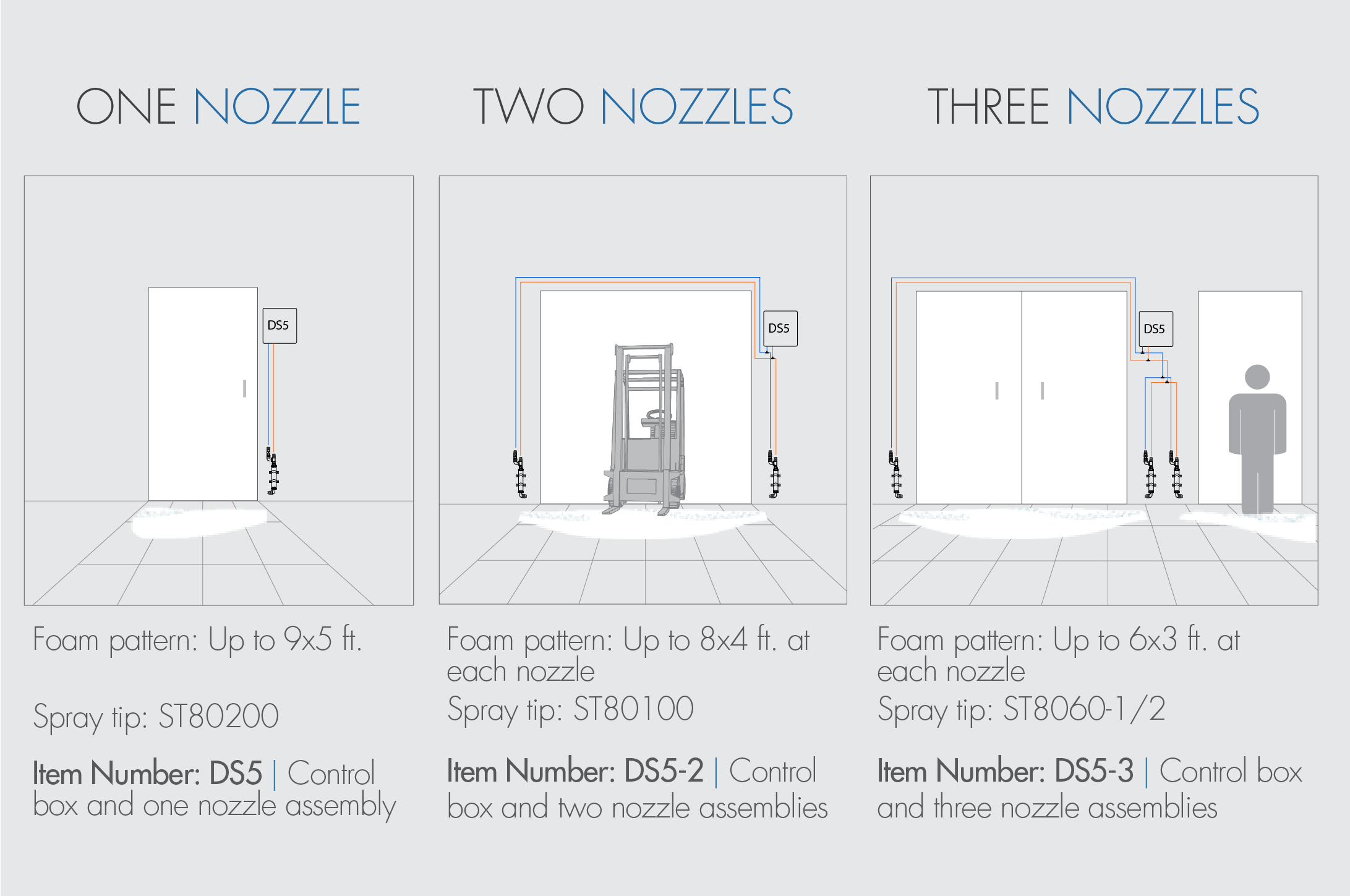

Coverage: Up to 2.7 × 1.5m with one nozzle; 2.4 × 1.2m each with two; 1.8 × 0.9m each with three

Timer: Repeat cycle, digital

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Electrical supply: 100–240V AC, 50–60Hz, 1A (GFCI-protected outlet); 24V DC operating

Liquid temperature: 4.4–37.8°C

Nozzles: Up to 3 twin-line stainless steel assemblies; fan tip ST80200SS (one nozzle), ST80100SS (two) or ST8060-12SS (three)

Nozzle distance: Combined 30.5m (100ft) or less from control box

Tubing: 12.7mm (1/2") OD between control box and nozzles

Suction line: 2.4m (8ft), 9.5mm (3/8") ID

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall mounted

Part number: DS-WL-TL

Supplied with: Foam unit, twin-line foam nozzle(s) with spray tip(s), adjustable ball-type nozzle insert, mounting hardware for control box and nozzles, 15.2m (50ft) of 12.7mm (1/2") OD clear tubing per nozzle, tee fittings, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
