FOAMit 24V Twin-Line Concentrate Doorway Foam Unit
FOAMit 24V Twin-Line Concentrate Doorway Foam Unit – product image
FOAMit 24V Twin-Line Concentrate Doorway Foam Unit – image 2
FOAMit 24V Twin-Line Concentrate Doorway Foam Unit – image 3
FOAMit 24V Twin-Line Concentrate Doorway Foam Unit – image 4
FOAMit 24V Twin-Line Concentrate Doorway Foam Unit – image 5
FOAMit 24V Twin-Line Concentrate Doorway Foam Unit – image 6

FOAMit 24V Twin-Line Concentrate Doorway Foam Unit

SKU DS-WC-TL
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit DS-WC-TL is a wall-mounted twin-line concentrate doorway foam unit powered by compressed air and electricity. It draws concentrated product, dilutes it at 38:1–183:1 (water:chemical) and feeds up to three twin-line stainless steel doorway nozzle assemblies within a combined 30.5m (100ft) of tubing from the control box.

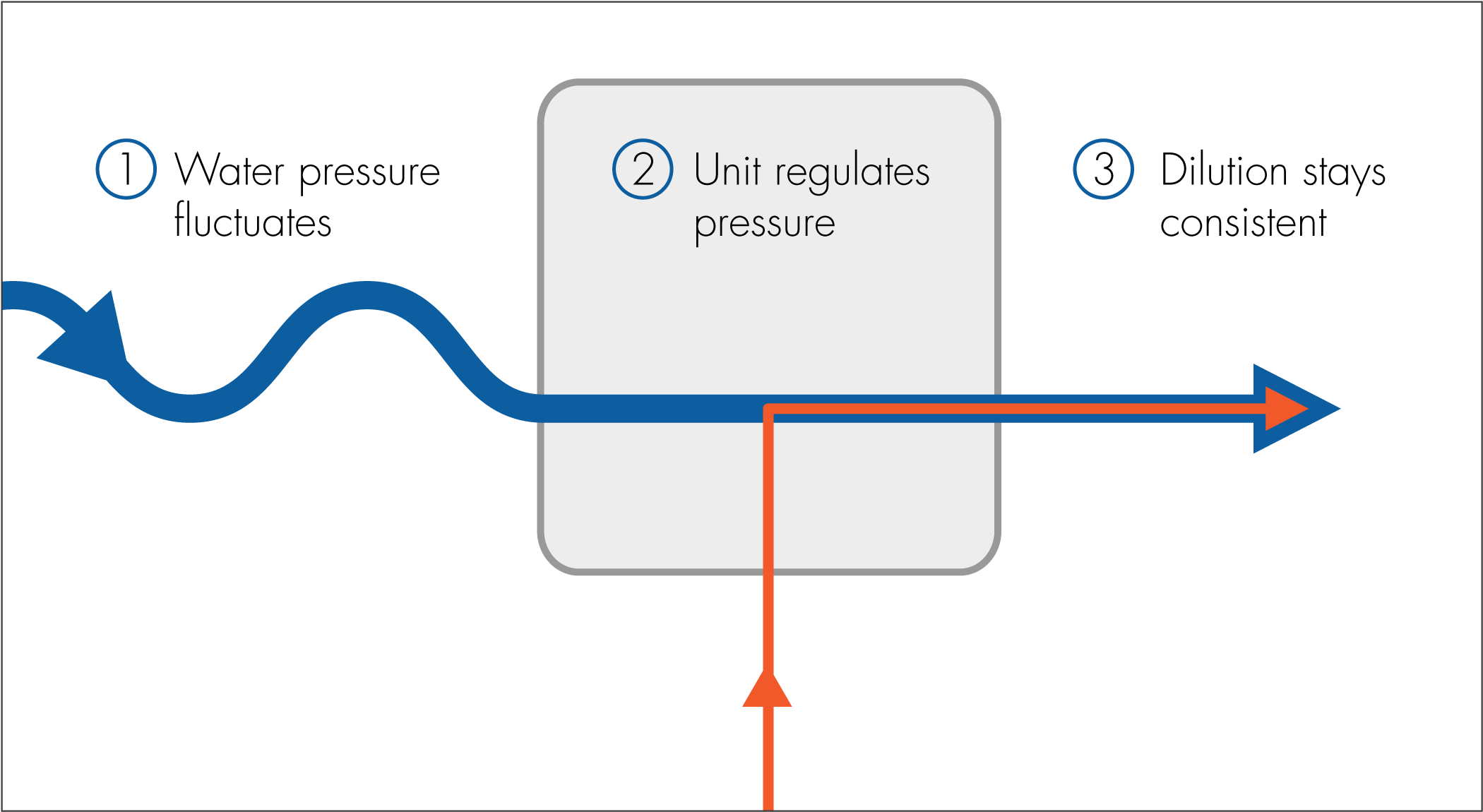

A 24 V DC repeat cycle digital timer, adjustable to traffic flow, delivers chemical on schedule, and dilution stays consistent regardless of water pressure changes. It is a direct replacement for the DS4.

Key features

  • Draws from concentrated product, dilutes at 38:1–183:1 (water:chemical)
  • Consistent, reliable dilution regardless of changes in water pressure
  • Repeat cycle digital timer, adjustable to traffic flow, with set delays to ensure coverage
  • Supports up to 3 twin-line stainless steel nozzle assemblies
  • Up to 30.5m (100ft) total distance from control box to nozzles, not necessarily evenly split
  • Quick-change pump

Options

  • Pump seals: Santoprene (standard), Viton (DS-WCV-TL) or Kalrez (DS-WCK-TL)
  • Number of nozzles: one (standard), two (DS-WC-TL-2) or three (DS-WC-TL-3)
  • Also available in a version for 2-part products

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Doorway foam system
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Concentrate

Technical information

Power: Compressed air and electricity

Chemical pickup: Concentrated product

Products drawn: One

Flow rate: 7.6 l/min

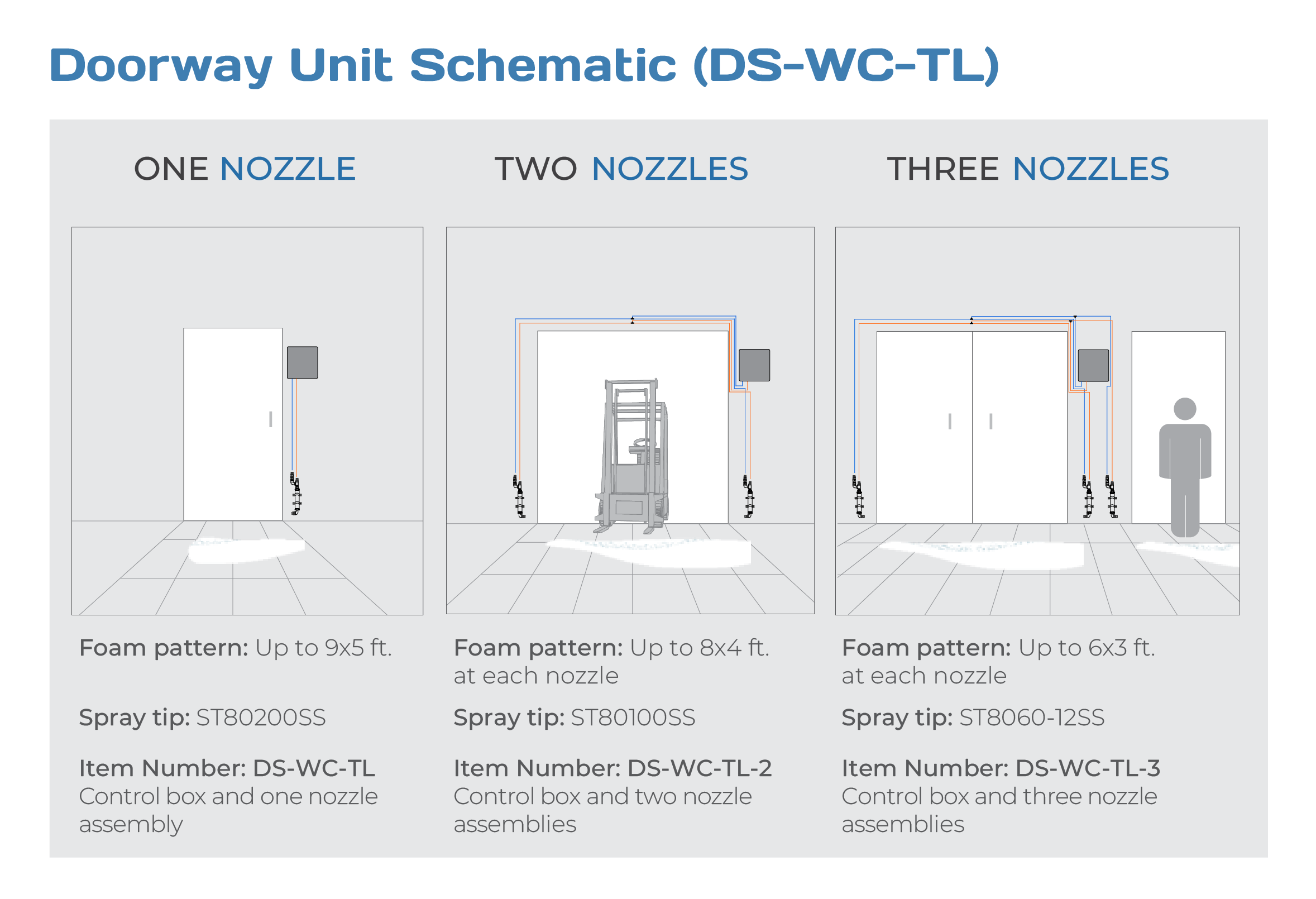

Coverage: 1 nozzle up to 2.7 × 1.5m; 2 nozzles up to 2.4 × 1.2m each; 3 nozzles up to 1.8 × 0.9m each

Dilution: 38:1–183:1 (water:chemical)

Timer: Repeat cycle digital timer

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Water pressure: 0.7–6.9 bar (10–100 psi), backflow prevention required

Electrical supply: 100–240 V AC, 50–60 Hz, 1 A (GFCI-protected outlet); 24 V DC operating

Liquid temperature: 4.4–37.8°C

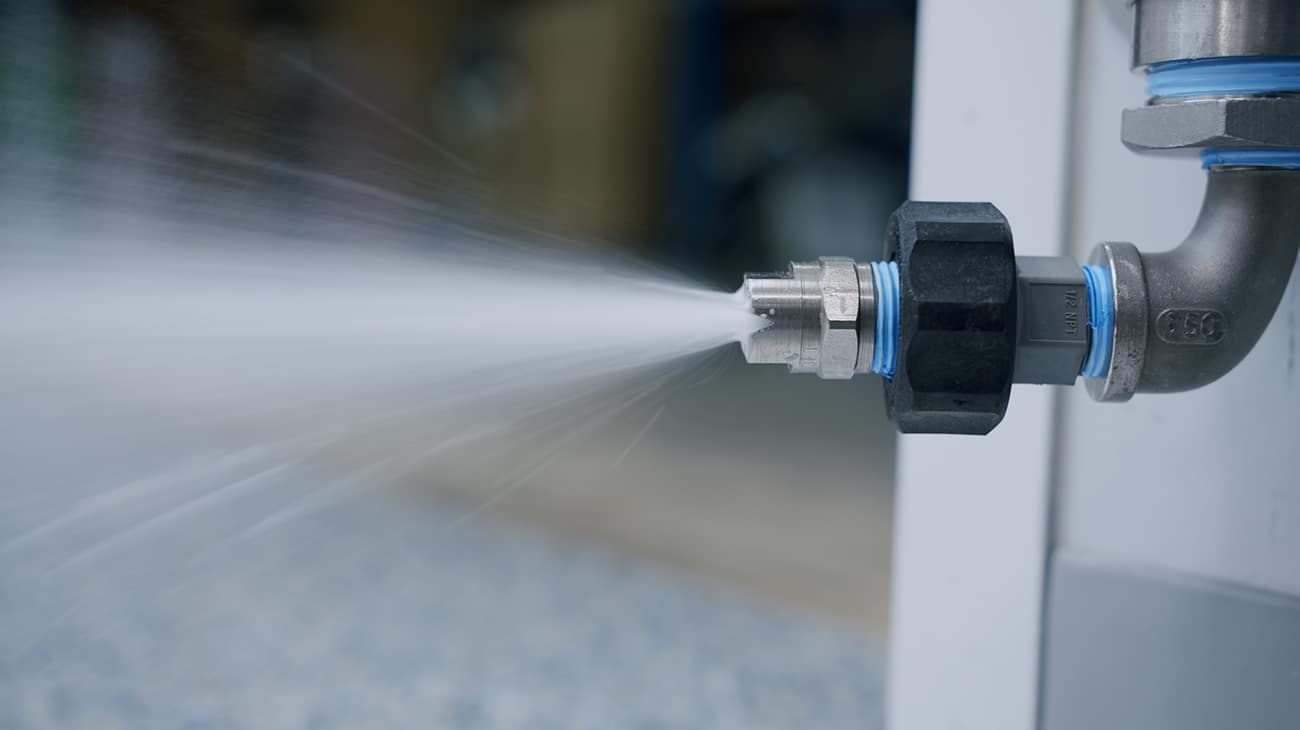

Nozzles: Twin-line stainless steel nozzle assemblies; fan tip ST80200SS (1 nozzle), ST80100SS (2 nozzles) or ST8060-12SS (3 nozzles)

Nozzle distance: Combined distance from control box to nozzles 30.5m (100ft) or less

Tubing: 12.7mm (1/2") OD between control box and nozzles

Suction line: 2.4m (8ft) clear hose, 6.4mm (1/4") ID

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall mounted

Part number: DS-WC-TL

Supplied with: Foam unit, twin-line foam nozzle(s) with spray tip(s), adjustable ball-type nozzle insert, mounting hardware for control box and nozzle(s), 15.2m (50ft) of 12.7mm (1/2") OD clear tubing per nozzle, tee fittings, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
