FOAMit 24V Twin-Line Concentrate Doorway Foam Unit for 2-Part Products

SKU DS-WC-2P-TL
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

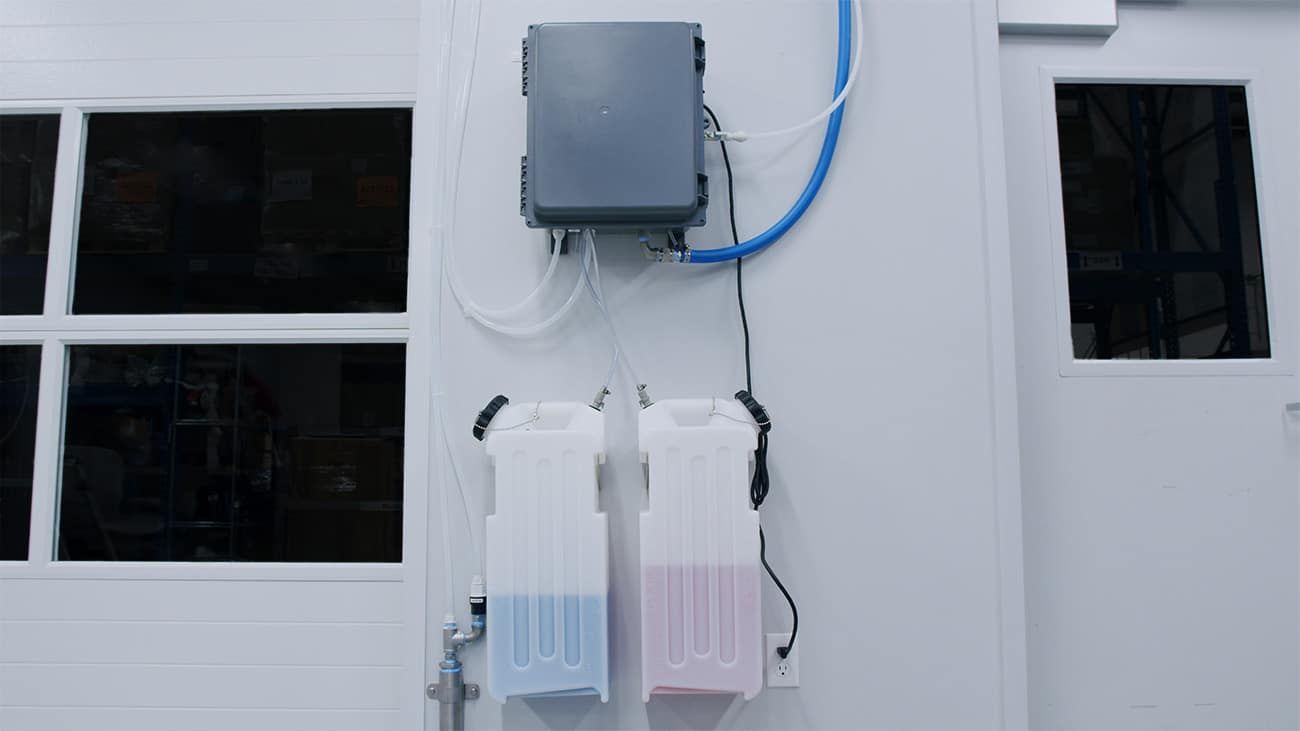

The FOAMit DS-WC-2P-TL is a wall-mounted twin-line doorway foam unit for two-part products, powered by compressed air and electricity. It draws two concentrated products simultaneously, dilutes each independently at 7:1–125:1 (water:chemical), and mixes them on the fly for entryway foaming.

A 24V repeat-cycle digital timer, adjustable to traffic flow with set delays, keeps coverage consistent. One control box supports up to three twin-line stainless steel nozzle assemblies within a combined 30.5m (100ft) of tubing.

Key features

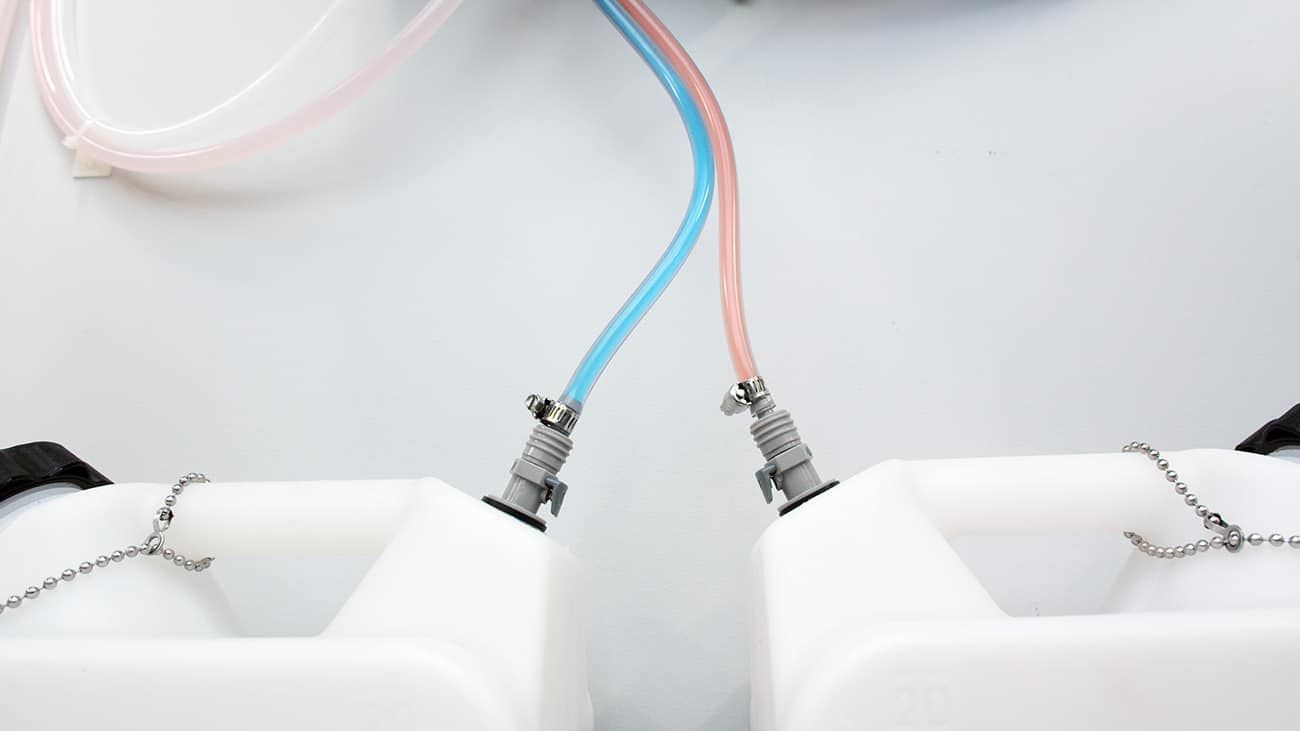

  • Draws from two concentrated products simultaneously, ideal for 2-part products mixed on the fly
  • Dilutes at 7:1–125:1 (water:chemical), set independently for each product

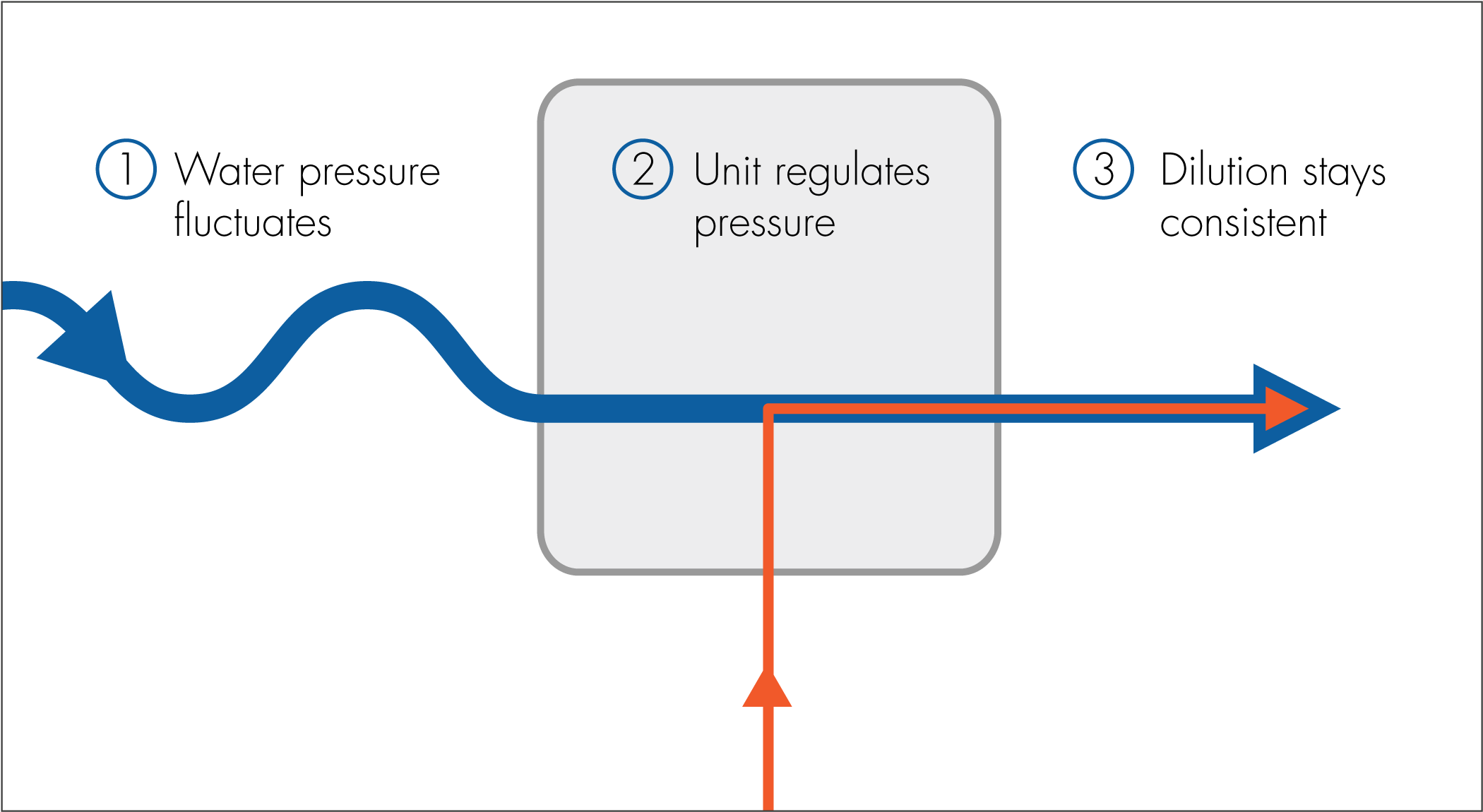

  • Consistent, reliable dilution regardless of water pressure changes
  • Easy-to-use repeat-cycle digital timer with set delays, adjustable to traffic flow
  • Supports up to 3 twin-line stainless steel nozzle assemblies
  • Up to 30.5m (100ft) total distance between control box and nozzles, not necessarily evenly distributed
  • Quick-change pump

Options

  • Pump seals: Santoprene (standard), Viton (DS-WCV-2P-TL) or Kalrez (DS-WCK-2P-TL)
  • Number of nozzles: one (standard), two (DS-WC-2P-TL-2) or three (DS-WC-2P-TL-3)
  • Spray tip by nozzle count: ST80200SS (1), ST80100SS (2), ST8060-12SS (3)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Doorway foam system
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
2-part products

Technical information

Power: Compressed air and electricity

Chemical pickup: Concentrated product

Products drawn: Two, simultaneously

Flow rate: 7.6 l/min

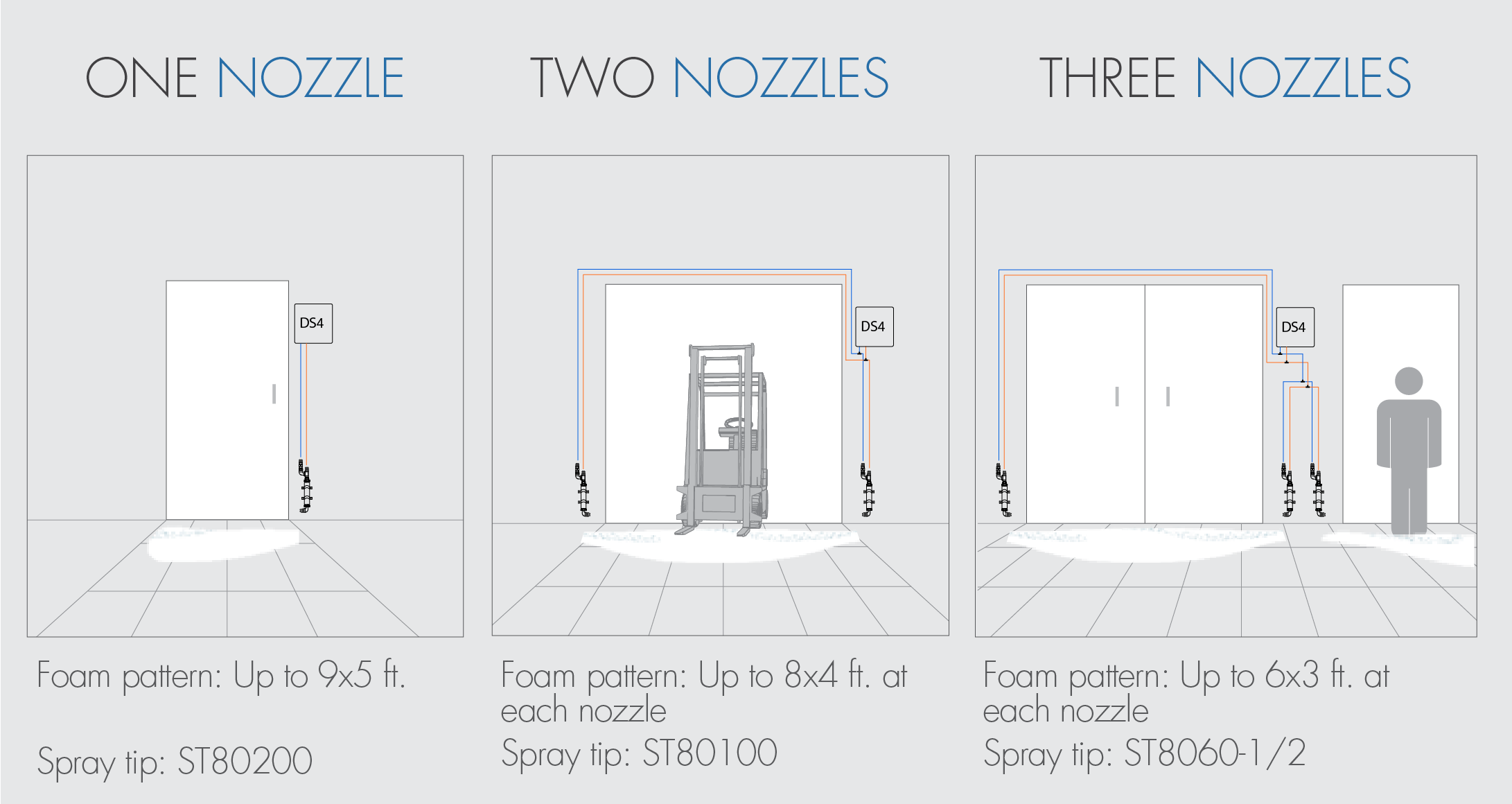

Coverage: 1 nozzle up to 2.7 × 1.5m; 2 nozzles up to 2.4 × 1.2m each; 3 nozzles up to 1.8 × 0.9m each

Dilution: 7:1–125:1 (water:chemical), set independently for each product

Timer: Repeat cycle, digital

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Water pressure: 0.7–6.9 bar (10–100 psi), backflow prevention required

Electrical supply: 100–240 V AC, 50–60 Hz, 1 A (GFCI-protected outlet); 24V DC operating voltage

Liquid temperature: 4.4–37.8°C

Nozzles: Twin-line stainless steel nozzle assembly, up to 3 per control box

Suction line: 2 × 2.4m (8ft) clear hose, 6.4mm (1/4") ID

Tubing: 12.7mm (1/2") OD between control box and nozzles, 30.5m (100ft) maximum combined

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall

Part number: DS-WC-2P-TL

Supplied with: Complete foam unit, twin-line foam nozzle(s) with spray tip(s), adjustable ball-type nozzle insert to hold spray tip, mounting hardware for control box and nozzle(s), 15.2m (50ft) of 12.7mm (1/2") OD clear tubing per nozzle, tee fittings, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
