FOAMit 24V Twin Line Central Doorway Foam Station
FOAMit 24V Twin Line Central Doorway Foam Station – product image
FOAMit 24V Twin Line Central Doorway Foam Station – image 2

FOAMit 24V Twin Line Central Doorway Foam Station

SKU DS-STN-TL
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit DS-STN-TL is a wall-mounted twin-line doorway foam station for central systems, supplied with pre-mixed solution from a central pump and header and powered by compressed air and electricity. Its 24 V DC repeat cycle digital timer runs up to three twin-line stainless steel doorway nozzle assemblies, within a combined 30.5m (100ft) of tubing from the control box.

Chemical is kept secure in one central location and delivered on schedule, with timer delays adjustable to traffic flow. The pump and nozzles are sold separately; it is a direct replacement for the GK5T.

Key features

  • One central pump distributes pre-mixed solution through a header system
  • Chemical kept secure away from the production floor, with no refills at the station
  • Repeat cycle digital timer, adjustable to traffic flow, with set delays to ensure coverage
  • Supports up to 3 twin-line nozzle assemblies
  • Up to 30.5m (100ft) total distance from control box to nozzles, not necessarily evenly split
  • Powered by compressed air and electricity
  • Pump and doorway nozzles sold separately

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Central System
Unit Type
Doorway foam system
Power Source
Air Operated
Chemical Pickup
Pre-mix

Technical information

Power: Central system, compressed air and electricity

Chemical pickup: Pre-mixed solution from a central system

Products drawn: One

Flow rate: 7.6 l/min

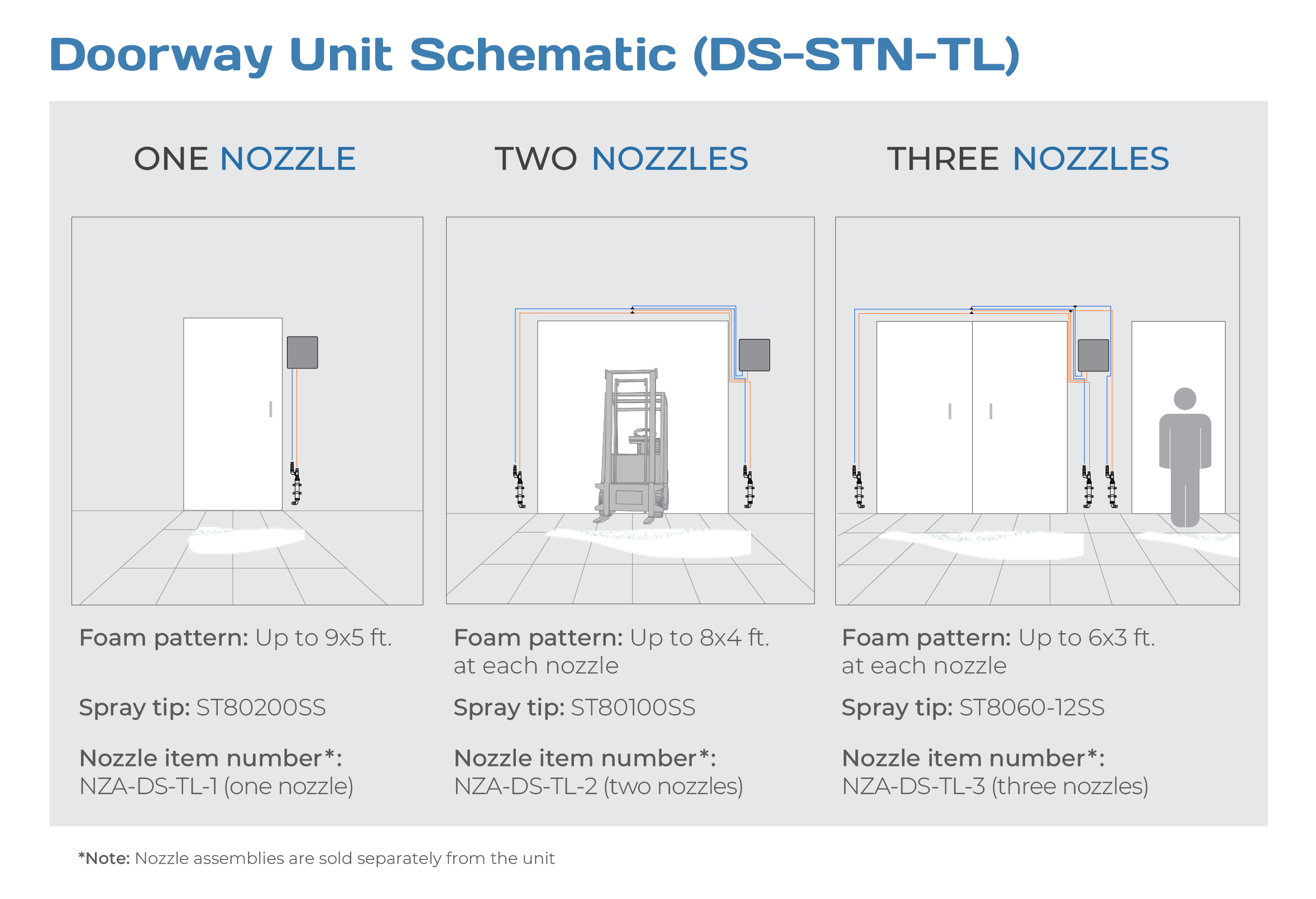

Coverage: 1 nozzle up to 2.7 × 1.5m; 2 nozzles up to 2.4 × 1.2m each; 3 nozzles up to 1.8 × 0.9m each

Timer: Repeat cycle digital timer

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Central supply: Header system delivering 7.6 l/min at 2.8–5.5 bar (40–80 psi)

Electrical supply: 100–240 V AC, 50–60 Hz, 1 A (GFCI-protected outlet); 24 V DC operating

Liquid temperature: 4.4–37.8°C

Nozzles: Up to 3 twin-line stainless steel nozzle assemblies (sold separately)

Nozzle distance: Combined distance from control box to nozzles 30.5m (100ft) or less

Tubing: 12.7mm (1/2") OD between control box and nozzles

Mounting: Wall mounted

Part number: DS-STN-TL

Supplied with: Control box, user manual (pump and nozzles sold separately)

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
