FOAMit 24V Single-Line Pre-Mix Doorway Foam Unit
FOAMit 24V Single-Line Pre-Mix Doorway Foam Unit – product image
FOAMit 24V Single-Line Pre-Mix Doorway Foam Unit – image 2
FOAMit 24V Single-Line Pre-Mix Doorway Foam Unit – image 3

FOAMit 24V Single-Line Pre-Mix Doorway Foam Unit

SKU DS-WL
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

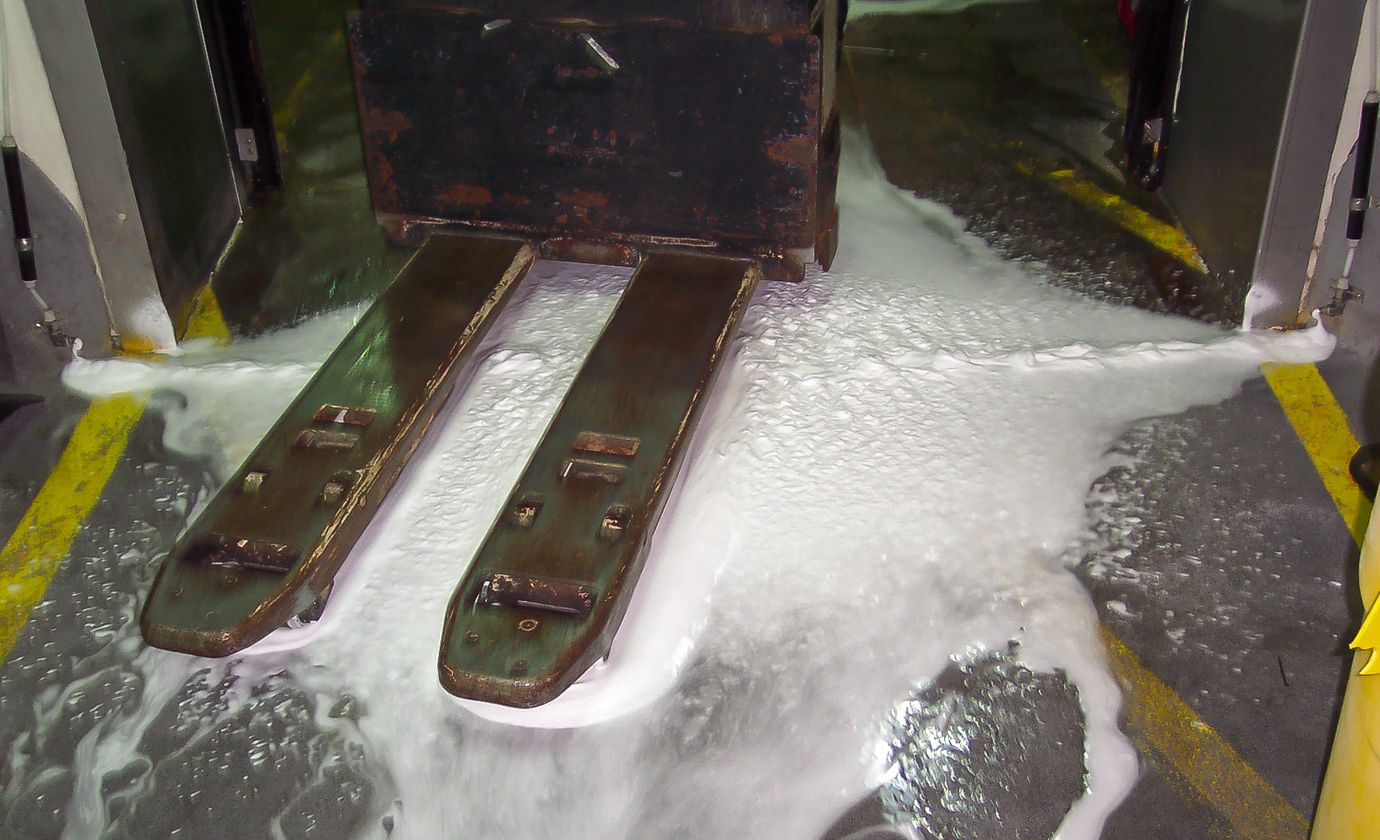

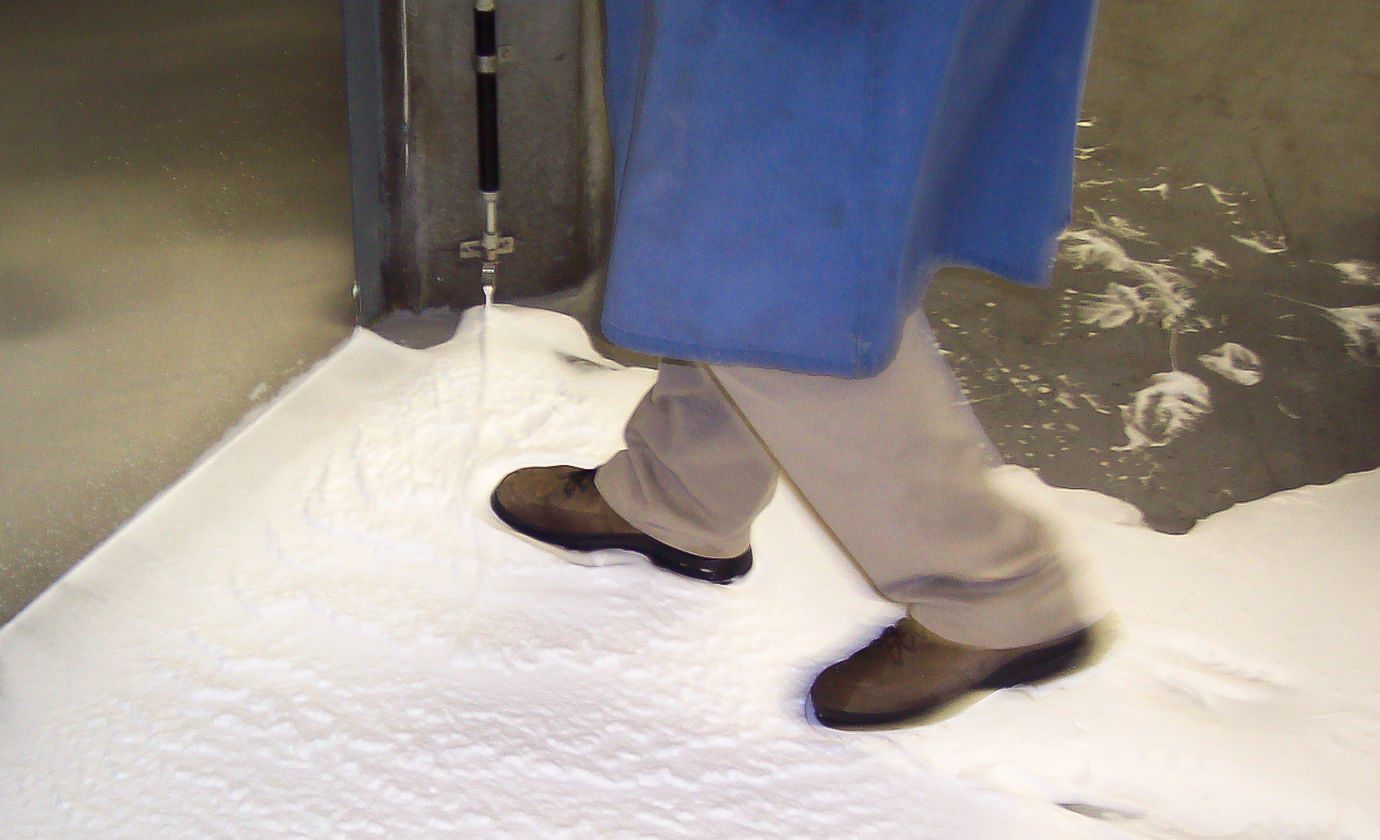

The FOAMit DS-WL is a wall-mounted single-line doorway foam unit powered by compressed air and electricity. It draws from pre-mixed solution, so you just drop in the suction line and go, and applies foam at doorways at 7.6 l/min.

A 24V repeat-cycle digital timer, adjustable to traffic flow with set delays, ensures coverage at each station. One control box supports up to two single-line nozzle assemblies within a combined 7.6m (25ft) of tubing.

Key features

  • Draws from pre-mixed solution: drop the suction line in and go
  • Powered by compressed air and electricity
  • Easy-to-use repeat-cycle digital timer with set delays, adjustable to traffic flow
  • Quick-change pump
  • Supports up to 2 single-line nozzle assemblies (NZA-DS-SL)
  • Up to 7.6m (25ft) total distance between control box and nozzles

Options

  • Pump seals: Santoprene (standard), Viton (DS-WLV) or Kalrez (DS-WLK)
  • Additional nozzle assembly ordered separately (NZA-DS-SL)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Doorway foam system
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix

Technical information

Power: Compressed air and electricity

Chemical pickup: Pre-mixed solution

Products drawn: One

Flow rate: 7.6 l/min

Coverage: 1 nozzle up to 2.7 × 1.2m (9 × 4ft); 2 nozzles up to 1.5 × 0.9m (5 × 3ft) each

Timer: Repeat cycle, digital

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Electrical supply: 100–240 V AC, 50–60 Hz, 1 A (GFCI-protected outlet); 24V DC operating voltage

Liquid temperature: 4.4–37.8°C

Nozzles: Single-line nozzle assembly (NZA-DS-SL), up to 2 per control box

Suction line: 2.4m (8ft), 9.5mm (3/8") ID

Tubing: 12.7mm (1/2") OD between control box and nozzles, 7.6m (25ft) maximum combined

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall

Part number: DS-WL

Supplied with: Complete foam unit, single-line foam nozzle with spray tip, mounting hardware for control box and nozzle, 3m (10ft) of 12.7mm (1/2") OD clear tubing, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
