FOAMit 24V Single-Line Concentrate Doorway Foam Unit
FOAMit 24V Single-Line Concentrate Doorway Foam Unit – product image
FOAMit 24V Single-Line Concentrate Doorway Foam Unit – image 2
FOAMit 24V Single-Line Concentrate Doorway Foam Unit – image 3
FOAMit 24V Single-Line Concentrate Doorway Foam Unit – image 4

FOAMit 24V Single-Line Concentrate Doorway Foam Unit

SKU DS-WC
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

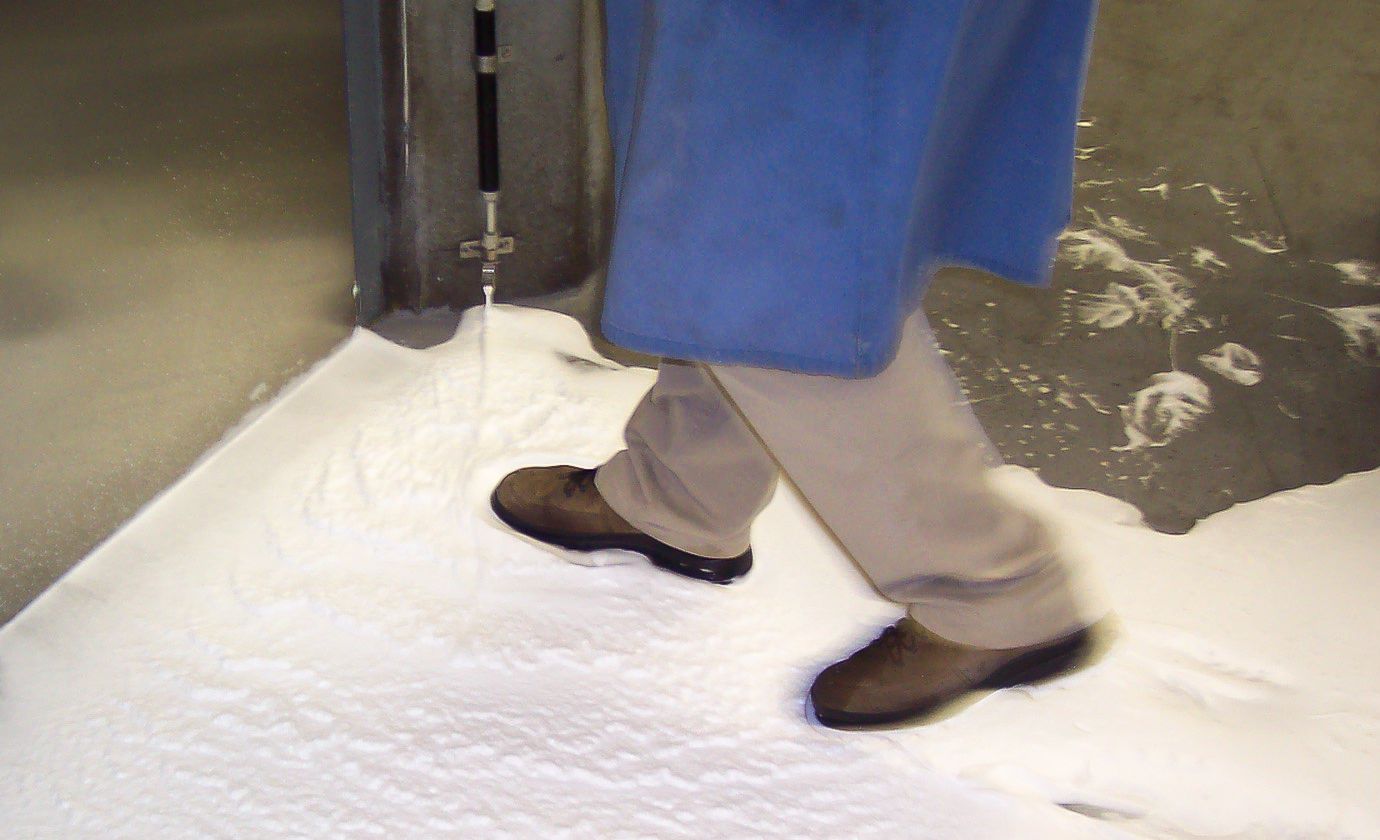

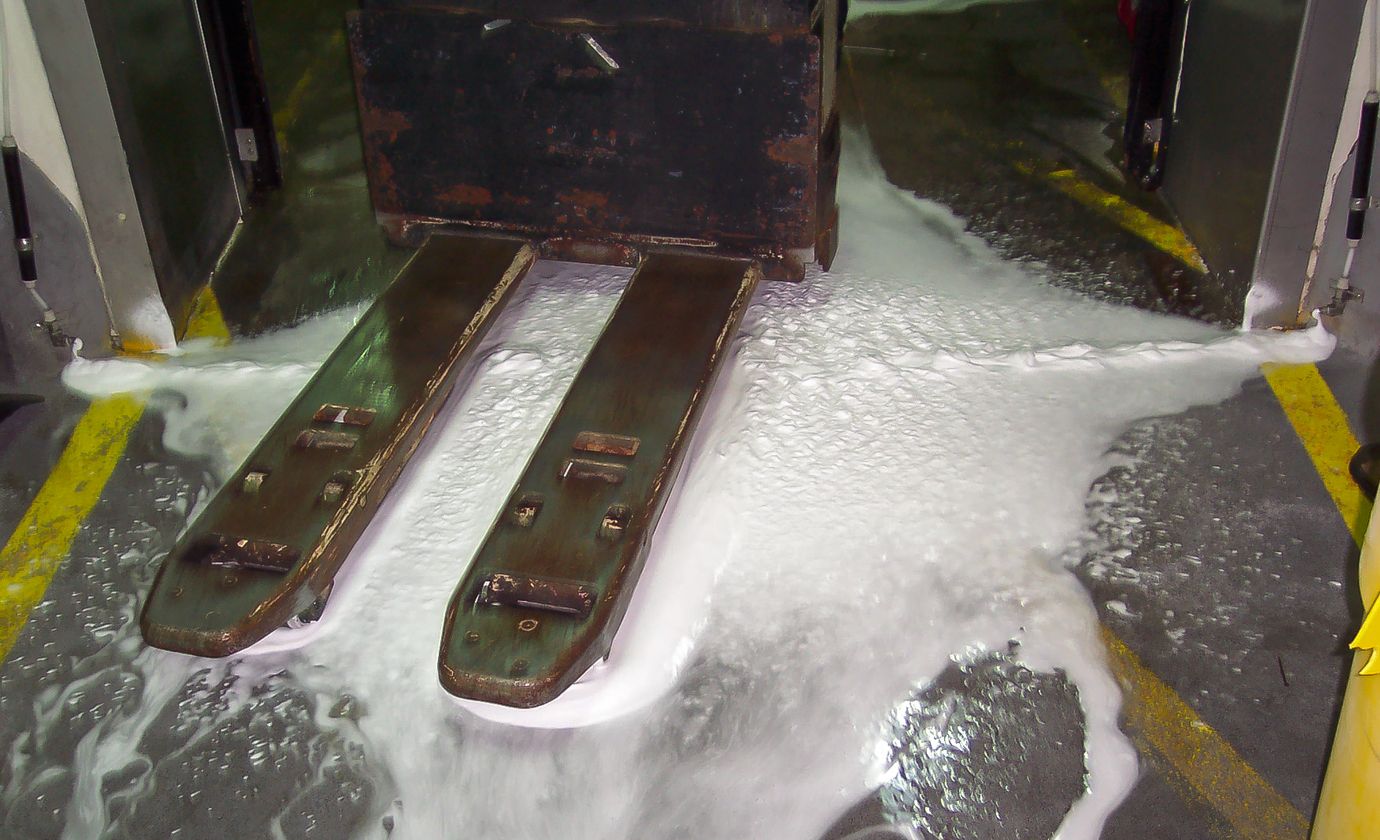

The FOAMit DS-WC is a wall-mounted single-line concentrate doorway foam unit powered by compressed air and electricity. It draws concentrated product, dilutes it with mains water at 38:1–183:1 and foams doorways through up to two single-line nozzle assemblies, controlled by a 24V DC repeat cycle digital timer.

Dilution stays consistent regardless of changes in water pressure, and the timer can be adjusted to traffic flow with set delays to ensure coverage. It is a direct replacement for the DS3.

Key features

  • Draws from concentrated product, diluting at 38:1–183:1 (water:chemical)

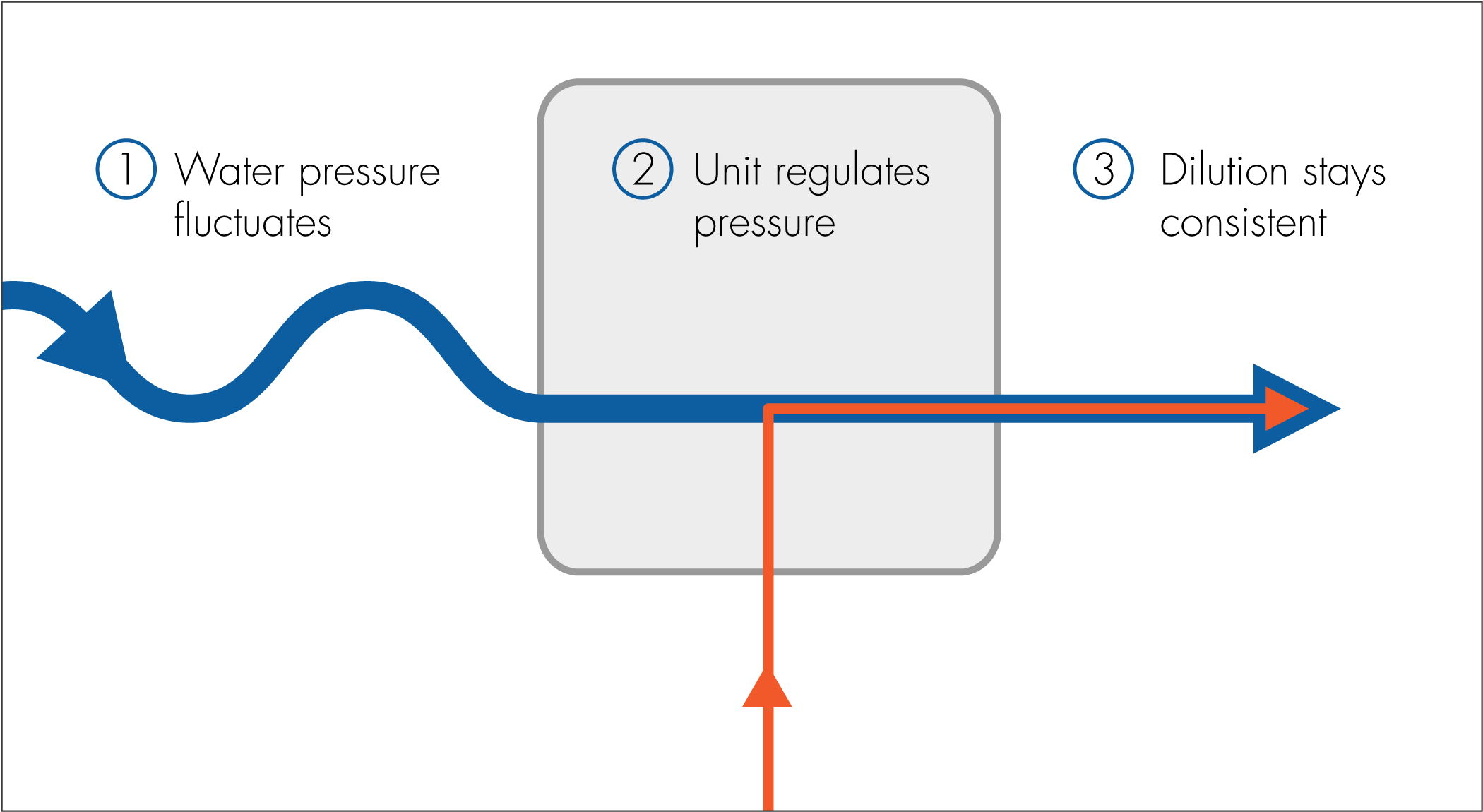

  • Consistent, reliable dilution regardless of changes in water pressure
  • Repeat cycle digital timer, adjustable to traffic flow with set delays
  • Quick-change pump
  • Supports up to two nozzle assemblies
  • Up to 7.6m (25ft) combined distance between control box and nozzles

Options

  • Pump seals: Santoprene (standard), Viton (DS-WCV) or Kalrez (DS-WCK)
  • Additional single-line nozzle assembly (NZA-DS-SL), ordered separately

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Wall Mounted
Unit Type
Doorway foam system
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Concentrate

Technical information

Power: Compressed air and electricity

Chemical pickup: Concentrated product

Products drawn: One

Flow rate: 7.6 l/min

Coverage: One nozzle up to 2.7 × 1.2m (9 × 4ft); two nozzles up to 1.5 × 0.9m (5 × 3ft) each

Dilution/ratio: 38:1–183:1 (water:chemical)

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Water pressure: 0.7–6.9 bar (10–100 psi), backflow prevention required

Electrical supply: 100–240V AC, 50–60Hz, 1A

Operating voltage: 24V DC

Timer: Repeat cycle digital

Liquid temperature: 4.4–37.8°C

Nozzles: Single-line nozzle assembly (NZA-DS-SL) with ST8070SS fan tip; up to 2 per control box

Distance to nozzles: 7.6m (25ft) combined maximum

Tubing: 12.7mm (1/2") OD between control box and nozzles

Suction line: 2.4m (8ft) clear hose, 6.4mm (1/4") ID

Pump seals: Santoprene, Viton or Kalrez

Mounting: Wall mounted

Part number: DS-WC

Supplied with: Complete foam unit, single-line foam nozzle with spray tip, mounting hardware for control box and nozzle, 3m (10ft) of 12.7mm (1/2") OD clear tubing for nozzle, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
