FOAMit 20 Gallon Transfer Unit with Stainless Steel Wand
FOAMit 20 Gallon Transfer Unit with Stainless Steel Wand – product image
FOAMit 20 Gallon Transfer Unit with Stainless Steel Wand – image 2
FOAMit 20 Gallon Transfer Unit with Stainless Steel Wand – image 3

FOAMit 20 Gallon Transfer Unit with Stainless Steel Wand

SKU TU-20N-SSW
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

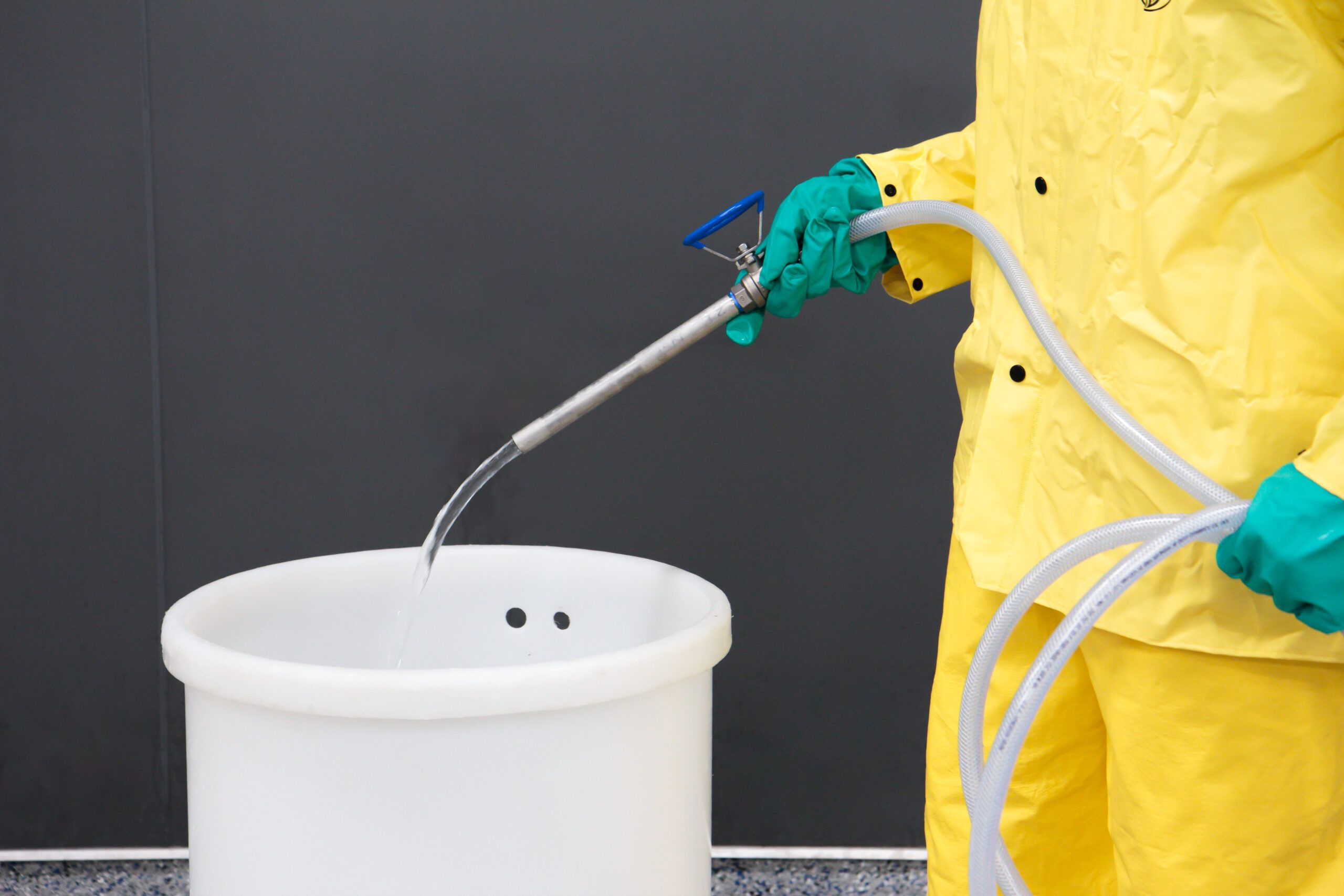

The FOAMit TU-20N-SSW is a 75.7 litre portable transfer unit powered by compressed air. It draws pre-mixed solution or concentrated product and transfers it at up to 13.2 l/min through a 4.6m hose and 254mm stainless steel wand with zero tip and heavy-duty ball valve.

It removes the need to hand-carry jugs when filling equipment, reducing the risk of chemical exposure and saving labour time.

Key features

  • Transfers up to 13.2 l/min
  • Removes the need to hand-carry jugs, reducing the risk of chemical exposure and saving labour
  • Chemically resistant PVC hose
  • Air regulator with filter
  • Air-operated diaphragm pump with quick-release hose barbs
  • In-line strainer protects the pump from debris
  • Heavy-duty ball valve for durability at any transfer volume
  • Highly portable on two non-marking wheels

Options

  • Pump seals: Santoprene (standard), Viton or Kalrez
  • Colour-coded lid (9 colours)
  • Also available with a poly fill gun (TU-20N-PFG) or curved stainless steel wand (TU-20N-CSSW)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Mobile / Trolley
Unit Type
Chemical management
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix or concentrate
Tank Capacity
75.7 litres

Technical information

Capacity: 75.7 litres

Power: Compressed air

Chemical pickup: Pre-mixed solution or concentrated product

Products drawn: One

Flow rate: Up to 13.2 l/min

Air supply: 1.4–5.5 bar (20–80 psi), 56.6 l/min (2 cfm)

Liquid temperature: 4.4–37.8°C

Discharge hose: 4.6m (15ft), 12.7mm (1/2") ID

Wand: 254mm stainless steel, zero tip, ball valve

Suction line: 1m (3.5ft) clear braided hose, 12.7mm (1/2") ID

Pump seals: Santoprene, Viton or Kalrez

Wheels: 2 × 254mm (10") non-marking

Part number: TU-20N-SSW

Supplied with: Transfer unit, discharge hose with wand, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
