FOAMit 20 Gallon Transfer Unit with Heavy Duty Poly Fill Gun
FOAMit 20 Gallon Transfer Unit with Heavy Duty Poly Fill Gun – product image

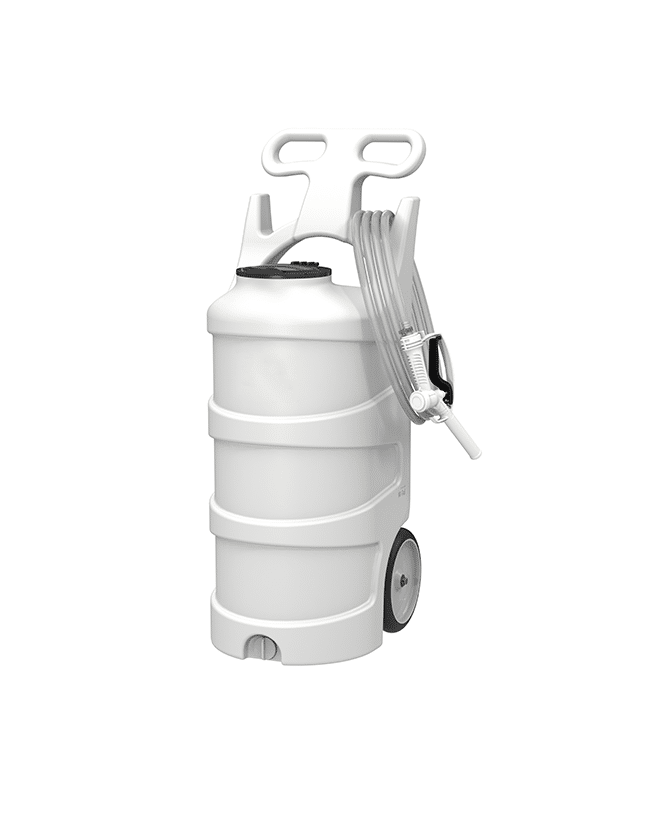

FOAMit 20 Gallon Transfer Unit with Heavy Duty Poly Fill Gun – image 2
FOAMit 20 Gallon Transfer Unit with Heavy Duty Poly Fill Gun – image 3
FOAMit 20 Gallon Transfer Unit with Heavy Duty Poly Fill Gun – image 4

FOAMit 20 Gallon Transfer Unit with Heavy Duty Poly Fill Gun

SKU TU-20N-PFG
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit TU-20N-PFG is a 75.7 litre portable transfer unit powered by compressed air. It transfers pre-mixed solution or concentrated product at up to 13.2 l/min through a 4.6m hose to a heavy-duty polypropylene fill gun.

The fill gun has a comfortable grip handle and trigger for quick on/off control, making it simple to fill containers without hand-carrying jugs of chemical.

Key features

  • Powered by compressed air, draws pre-mixed or concentrated product
  • Transfers up to 13.2 l/min
  • Air-operated diaphragm pump with quick-release hose barbs
  • Air regulator with filter
  • Chemically resistant PVC hose
  • In-line strainer protects the pump from debris
  • Removes the need to hand-carry jugs, reducing chemical exposure and saving labour
  • Heavy-duty polypropylene fill gun with grip handle and trigger for on/off control
  • Viton pump seals

Options

  • Colour-coded lid (9 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Mobile / Trolley
Unit Type
Chemical management
Pump Seals
Viton
Power Source
Air Operated
Chemical Pickup
Pre-mix or concentrate
Tank Capacity
75.7 litres

Technical information

Capacity: 75.7 litres

Power: Compressed air

Chemical pickup: Pre-mixed solution or concentrated product

Products drawn: One

Flow rate: 13.2 l/min

Air supply: 1.4–5.5 bar (20–80 psi), 56.6 l/min (2 cfm)

Liquid temperature: 4.4–37.8°C

Discharge hose: 4.6m (15ft), 12.7mm (1/2") ID

Wand: Polypropylene fill gun with hose barb and Hastelloy spring

Suction line: 1m (3.5ft) clear braid, 12.7mm (1/2") ID

Pump seals: Viton

Wheels: 2 × 254mm (10in) non-marking wheels, 2 × 76mm (3in) castors, one locking

Part number: TU-20N-PFG

Supplied with: Complete transfer unit with discharge hose and wand, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
