FOAMit 20 Gallon Fog Unit with 3 Nozzles and Timer
FOAMit 20 Gallon Fog Unit with 3 Nozzles and Timer – product image
FOAMit 20 Gallon Fog Unit with 3 Nozzles and Timer – image 2
FOAMit 20 Gallon Fog Unit with 3 Nozzles and Timer – image 3
FOAMit 20 Gallon Fog Unit with 3 Nozzles and Timer – image 4
FOAMit 20 Gallon Fog Unit with 3 Nozzles and Timer – image 5
FOAMit 20 Gallon Fog Unit with 3 Nozzles and Timer – image 6
FOAMit 20 Gallon Fog Unit with 3 Nozzles and Timer – image 7

FOAMit 20 Gallon Fog Unit with 3 Nozzles and Timer

SKU FG-20N-3-TM
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit FG-20N-3-TM is a 75.7 litre portable fog unit powered by compressed air and electricity. It draws pre-mixed chemical solution and fogs it through three pneumatic nozzles on a telescoping mast adjustable from 1.1–2.6m, with a 15-micron droplet size at 3.4 bar.

A delay timer lets operators start a single timed run and clear the area, making it suited to rooms that must be empty during treatment or to overnight cleaning. The mast helps the fog fill spaces large or small.

Key features

  • Easy-to-use single-shot delay timer for unattended or overnight fogging
  • Three fog nozzles on a telescoping mast, 1.1–2.6m
  • Efficient air consumption of approximately 254.9 l/min (9 cfm)
  • See-through 75.7 litre tank shows the product level
  • Quick-change pump
  • Hinged back plate for tool-free access to components
  • Hinged lid that cannot be lost
  • Front-facing drain for easy tank drainage
  • In-line strainer protects the pump from debris

Options

  • Pump seals: Santoprene (standard), Viton (FG-20N-3-TMV) or Kalrez (FG-20N-3-TMK)
  • Colour-coded lid (9 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Mobile / Trolley
Unit Type
Fog unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix
Tank Capacity
75.7 litres

Technical information

Capacity: 75.7 litres

Power: Compressed air and electricity

Chemical pickup: Pre-mixed solution

Products drawn: One

Flow rate: 14 l/h per nozzle, 42 l/h total

Droplet size: 15 microns at 3.4 bar (50 psi)

Coverage: 1 litre of solution covers approx. 28.3m³ (1,000 cu ft)

Timer: Single-shot with delay

Air supply: 3.4 bar (50 psi), 254.9 l/min (9 cfm)

Electrical supply: 120 V AC, 60 Hz, 2 A (GFCI-protected outlet)

Run time: Approx. 2 hours from full tank

Liquid temperature: 4.4–37.8°C

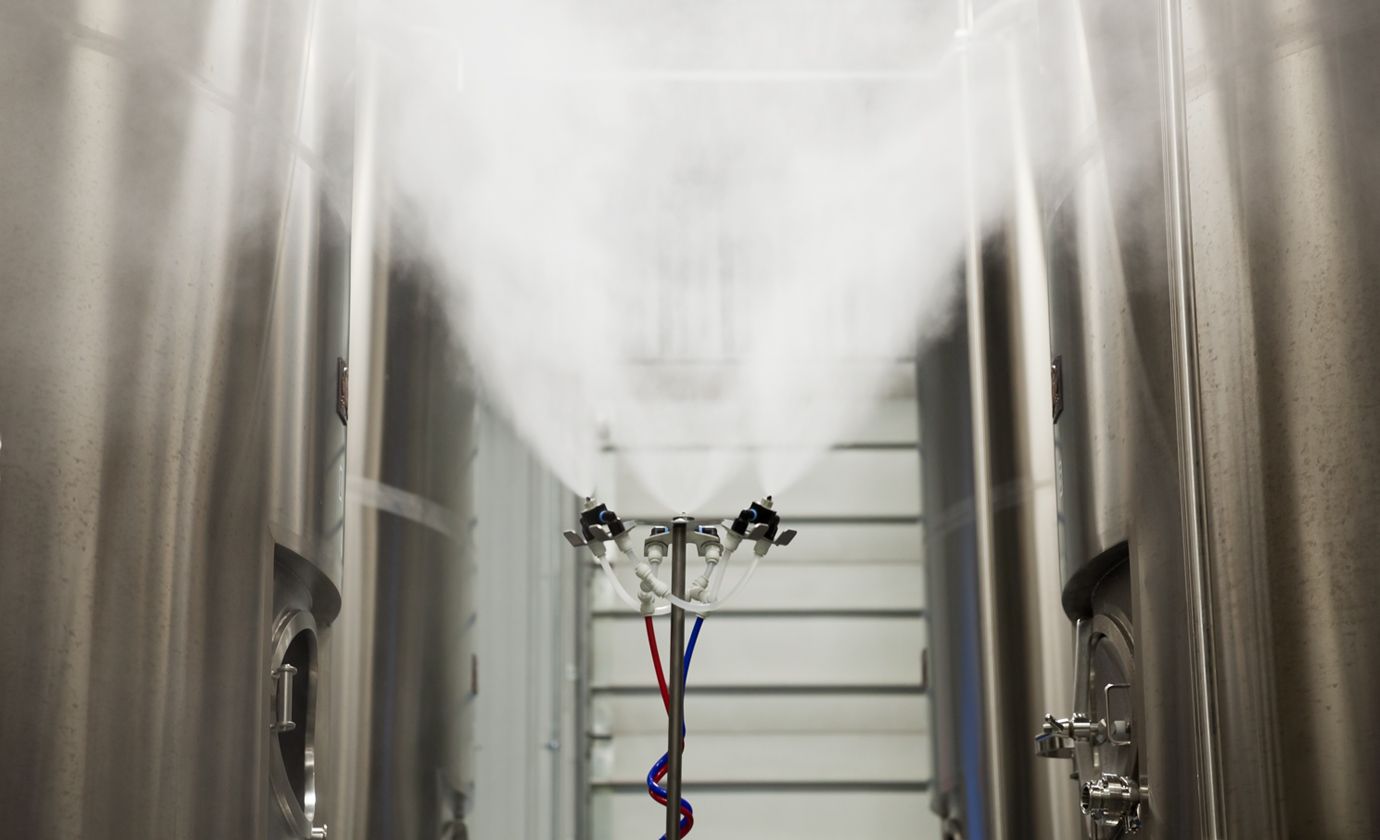

Nozzles: 3 × pneumatic fog nozzles on telescoping mast

Mast height: 1.1–2.6m (3.5–8.5ft)

Pump seals: Santoprene, Viton or Kalrez

Wheels: 2 × 254mm non-marking

Dimensions: 1214mm high

Part number: FG-20N-3-TM

Supplied with: Complete unit with 3 nozzles on telescoping mast and timer

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
