FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products
FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products – product image
FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products – image 2
FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products – image 3
FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products – image 4
FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products – image 5
FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products – image 6
FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products – image 7
FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products – image 8

FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products

SKU FI-CN-15N-2P
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

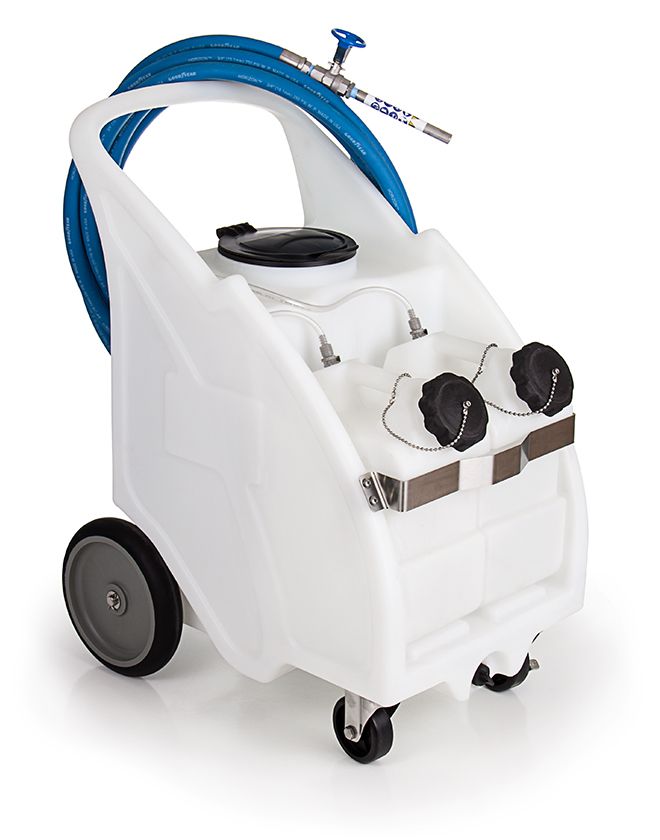

The FOAMit FI-CN-15N-2P is a portable concentrate foam unit for two-part products, powered by compressed air. It carries 56.8 litres of water on board and draws two concentrated products simultaneously from jugs held on the unit, diluting each independently at 8:1 to 150:1.

Foam is applied through a 9m hose and stainless steel wand with a reach of 7.6–9.1m. The quick-change pump and tool-free hinged access plate keep downtime for repairs to a minimum.

Key features

  • Draws two concentrated products simultaneously
  • Ideal for two-part products mixed on the fly
  • Dilutes each product at 8:1 to 150:1 (water:chemical), set independently
  • Holds two FOAMit chemical jugs or other chemical containers
  • On-board 56.8 litre water tank with natural-colour tank for visible water level
  • Hinged back plate for tool-free access and quick-change pump
  • Hinged lid, front-facing drain and integrated hose wraps

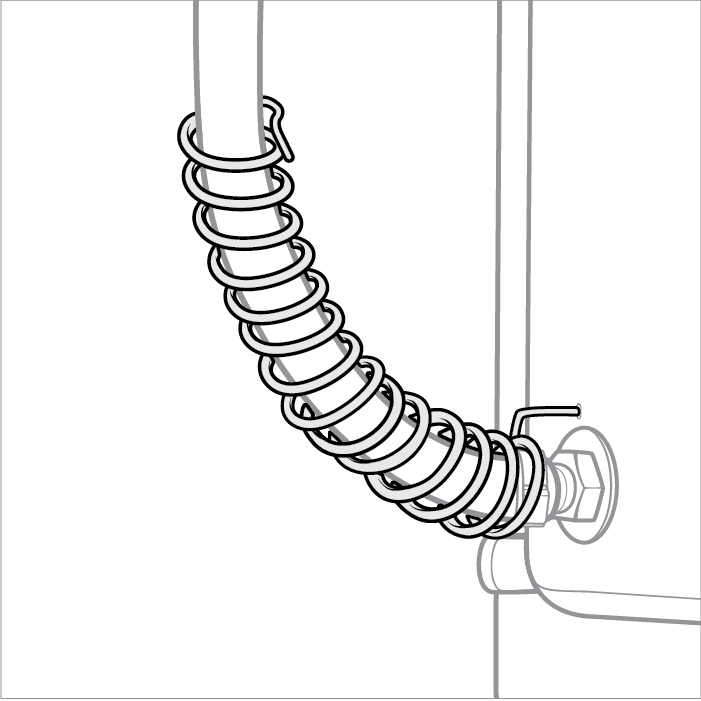

  • Anti-kink hose protection
  • In-line strainer protects the pump from debris

Options

  • Pump seals: Santoprene (standard), Viton (FI-CN-15NV-2P) or Kalrez (FI-CN-15NK-2P)
  • Colour-coded lid (9 colours) and discharge hose (4 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Mobile / Trolley
Unit Type
Foam unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
2-part products
Tank Capacity
56.8 litres

Technical information

Capacity: 56.8 litres water; up to 37.9 litres concentrate

Power: Compressed air

Chemical pickup: Concentrated product

Products drawn: Two, simultaneously

Output: 75.7–170.3 l/min of foam

Flow rate: 7.6–8.5 l/min

Reach: 7.6–9.1m

Dilution ratio: 8:1 to 150:1 (water:chemical), set independently per product

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Liquid temperature: 4.4–37.8°C

Discharge hose: 9m (30ft), 19mm (3/4") ID

Wand: 178mm stainless steel, zero-degree tip, ball valve

Suction line: 2 × 2.4m (8ft) clear hose, 6.4mm (1/4") ID

Pump seals: Santoprene, Viton or Kalrez

Wheels: 2 × 254mm (10") non-marking, plus 2 × 127mm (5") castors, one locking

Part number: FI-CN-15N-2P

Supplied with: Foam unit, discharge hose with wand, two metering tip kits, user manual (chemical jugs not included)

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
