FOAMit 15 Gallon Concentrate Foam Unit
FOAMit 15 Gallon Concentrate Foam Unit – product image

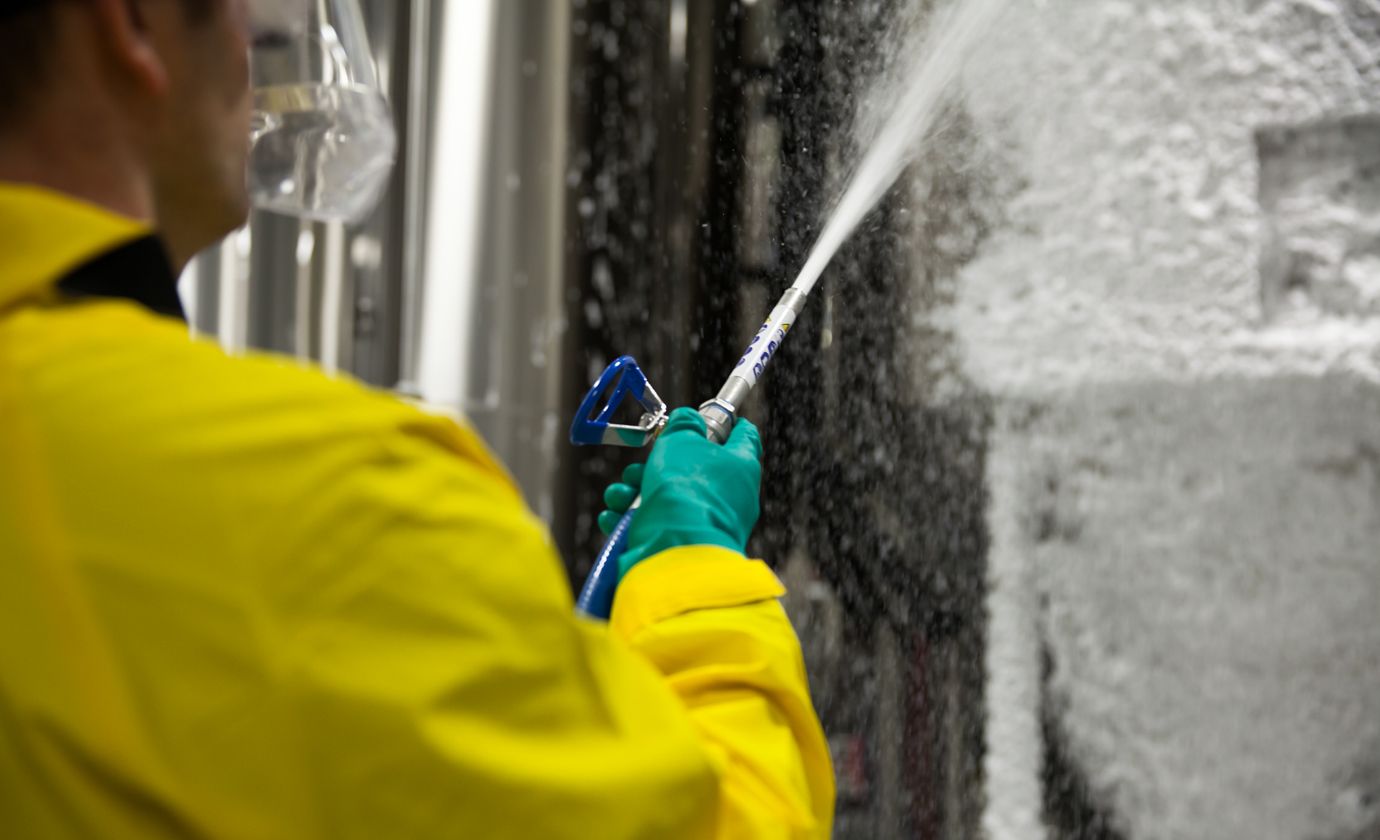

FOAMit 15 Gallon Concentrate Foam Unit – image 2
FOAMit 15 Gallon Concentrate Foam Unit – image 3
FOAMit 15 Gallon Concentrate Foam Unit – image 4

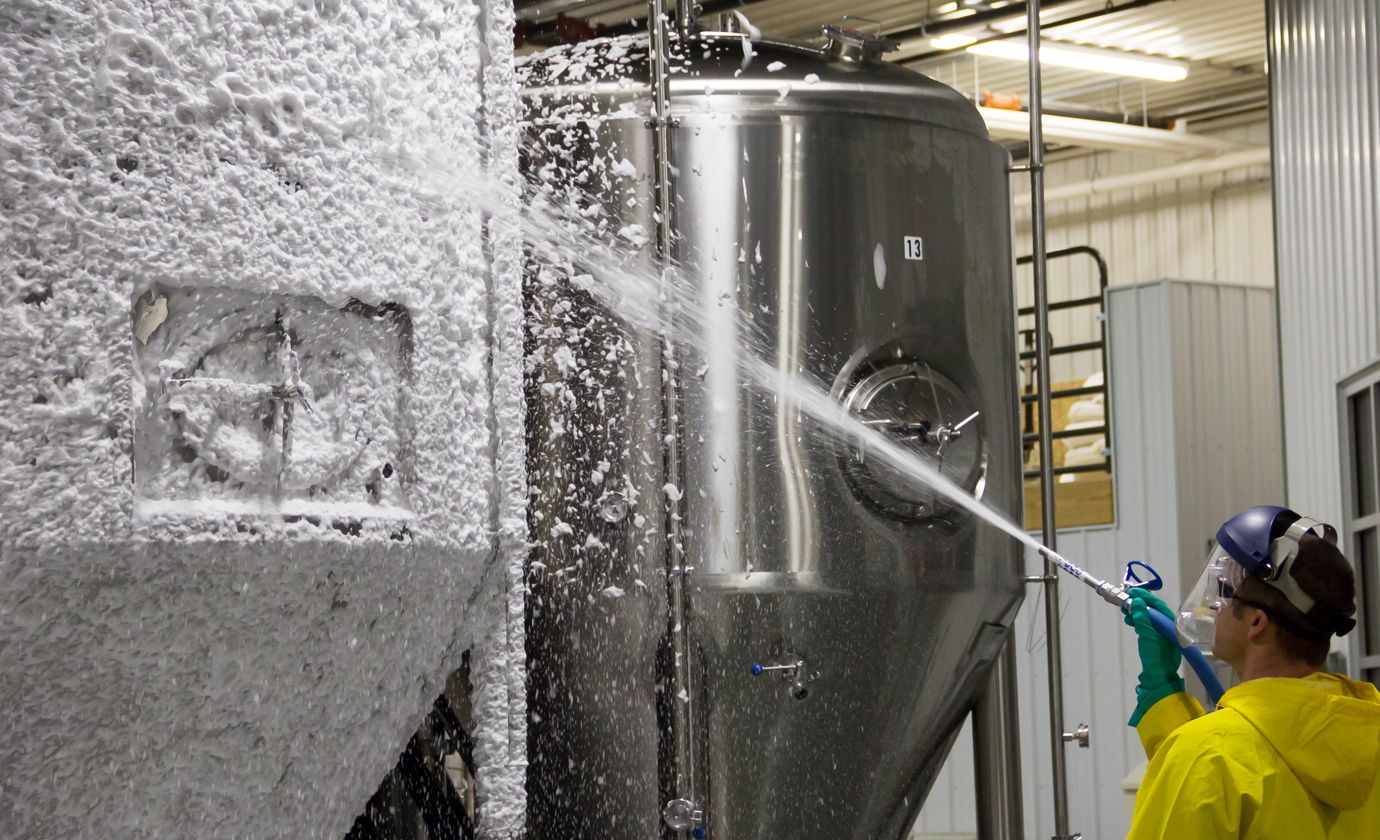

FOAMit 15 Gallon Concentrate Foam Unit – image 5
FOAMit 15 Gallon Concentrate Foam Unit – image 6
FOAMit 15 Gallon Concentrate Foam Unit – image 7
FOAMit 15 Gallon Concentrate Foam Unit – image 8
FOAMit 15 Gallon Concentrate Foam Unit – image 9

FOAMit 15 Gallon Concentrate Foam Unit

SKU FI-CN-15N
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit FI-CN-15N is a portable concentrate foam unit powered by compressed air. It draws concentrated chemical and dilutes it automatically at 14:1–320:1 with water from a 56.8 litre on-board tank, applying foam through a 9m hose and stainless steel wand with a reach of 7.6–9.1m.

Automatic dilution removes manual mixing and saves labour, while the quick-change pump and tool-free hinged access plate keep maintenance downtime short.

Key features

  • Draws from concentrated product and dilutes on the go at 14:1–320:1
  • Powered by compressed air

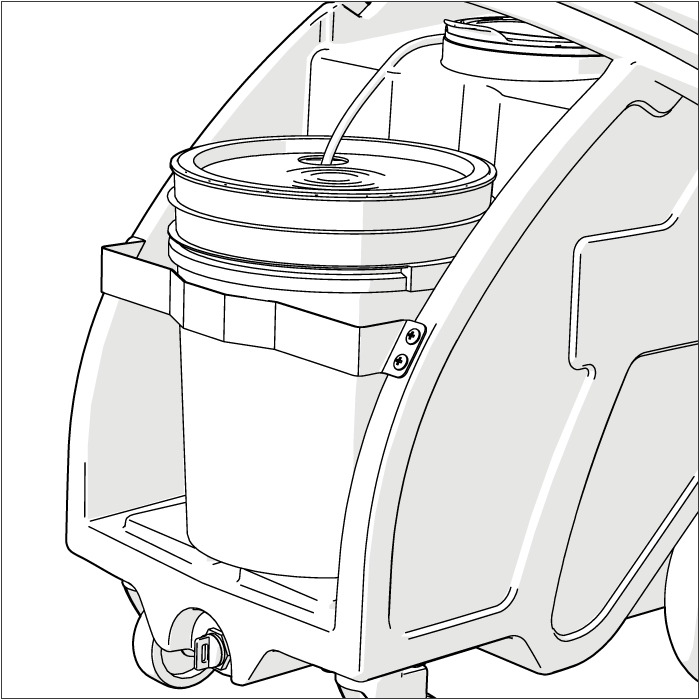

  • Holds two chemical jugs or one standard 5 US gallon bucket (not included)
  • On-board 56.8 litre water tank, natural colour to show the water level
  • Hinged back plate for tool-free access, and quick-change pump
  • Hinged lid
  • Anti-kink hose protection and integrated hose wraps
  • Front-facing drain and in-line strainer to protect the pump

Options

  • Pump seals: Santoprene (standard), Viton (FI-CN-15NV) or Kalrez (FI-CN-15NK)
  • Colour-coded lid (9 colours) and discharge hose (4 colours)
  • Fan tip, water separator and air hose

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Mobile / Trolley
Unit Type
Foam unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Concentrate
Tank Capacity
56.8 litres

Technical information

Capacity: 56.8 litres water; up to 37.9 litres concentrate

Power: Compressed air

Chemical pickup: Concentrated product

Products drawn: One

Output: 75.7–170.3 l/min of foam

Flow rate: 7.6 l/min

Reach: 7.6–9.1m

Dilution: 14:1–320:1

Air supply: 2.8–5.5 bar (40–80 psi), 141.6–283.2 l/min (5–10 cfm)

Liquid temperature: 4.4–37.8°C

Discharge hose: 9m (30ft), 19mm (3/4") ID

Wand: 178mm stainless steel, zero tip, ball valve

Suction line: 2.4m (8ft) clear hose, 6.4mm (1/4") ID

Pump seals: Santoprene, Viton or Kalrez

Wheels: 2 × 254mm non-marking wheels, 2 × 127mm casters (one locking)

Part number: FI-CN-15N

Supplied with: Complete foam unit with discharge hose and wand, metering tip kit for foam injector, user manual (chemical jugs/bucket not included)

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
